Wireless Power Transfer by Spoof Surface Plasmon Polaritons at Ultrasonic Frequencies

Louis W. Y. Liu,

Dr. Louis W. Y. Liu

Faculty of Engineering

Vietnamese German University

Vietnam

Homepage

Abhishek Kandwal,

Prof. Abhishek Kandwal

School of Chips

Xian Jiaotong-Liverpool University

China

Homepage

Timo Oster,

Dr. Timo Oster

Department of Electrical Engineering and Information Technology (Dept. 18) and the Institute of Integrated Electronic Systems (I

Technical University of Darmstadt (TU Darmstadt)

Germany

Homepage

Klaus Hofmann,

Dr. Klaus Hofmann

Department of Electrical Engineering and Information Technology (Dept. 18) and the Institute of Integrated Electronic Systems (I

Technical University of Darmstadt (TU Darmstadt)

Germany

Homepage

Choon Kit Chan

Dr. Choon Kit Chan

Faculty of Engineering and Quantity Surveying

INTI International University

Malaysia

Homepage

Progress In Electromagnetics Research M, Vol. 137, 79-86, 2026

doi:10.2528/PIERM25121707 | Google Scholar

Abstract

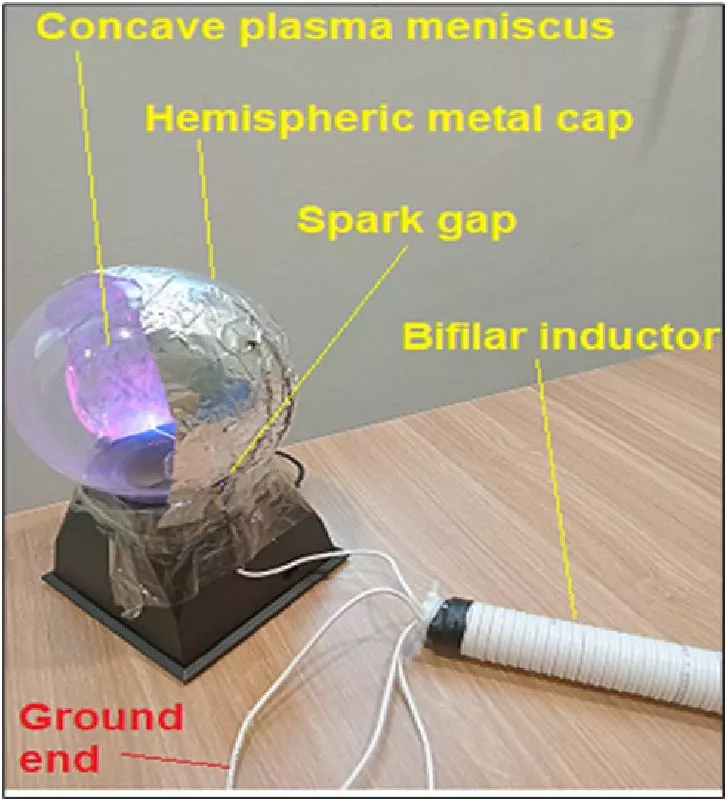

Long-range wireless power transfer (WPT) is difficult with unguided radio waves or magnetic coupling. In this work, a plasma-assisted quasi-parallel planar waveguiding medium is proposed for overcoming the transmission range issues. Method: A dielectric layer sitting on a conductive object or grid was used as a medium for WPT. At the transmitting end, a plasma ball shielded with a spark-gap activated hemispheric metal cap was used to ionize the air in the space, thereby forming the top cladding layer of the quasi parallel-plate waveguide. At the receiving end, the transmitted power was coupled out of the waveguide over the entire ultrasonic spectrum using Avramenko diode configurations. A Kretschmann-like configuration was used at both ends for conversion between a plasmonic current and the surface waves. Results: In the proposed experimental setups, the transmitted power was successfully harvested over a frequency range from near DC to 230 MHz, with the ratio of the received power to the transmitted power significantly surpassing the value predicted by the Friis' two-ray ground reflection model. Conclusion: WPT based on surface waves is technically feasible with the help of Kretschmann-like configurations.

Download Full Article (32) View Full Article volume

Citation

Copy Export

Louis W. Y. Liu, Abhishek Kandwal, Timo Oster, Klaus Hofmann, and Choon Kit Chan, "Wireless Power Transfer by Spoof Surface Plasmon Polaritons at Ultrasonic Frequencies," Progress In Electromagnetics Research M, Vol. 137, 79-86, 2026.
doi:10.2528/PIERM25121707

References

1. Costanzo, Allesandra and Diego Masotti, "Smart solutions in smart spaces: Getting the most from far-field wireless power transfer," IEEE Microwave Magazine, Vol. 17, No. 5, 30-45, 2016.
doi:10.1109/mmm.2016.2525119 Google Scholar

2. Pakkangpalang, Naruemit, Kittisak Phaebua, Sanchai Pattaranavic, Titipong Lertwiriyaprapa, et al. "Array antenna system for wireless power transfer (WPT) system at 6.78 MHz," 2020 17th International Conference on Electrical Engineering/Electronics, Computer, Telecommunications and Information Technology (ECTI-CON), 816-819, Phuket, Thailand, 2020.
doi:10.1109/ECTI-CON49241.2020.9157903

3. Mitsubishi Heavy Industries, Ltd. "NTT and Mitsubishi Heavy Industries Achieved World's Highest Efficiency in Laser Wireless Power Transmission under Atmospheric Turbulence --- Toward next-generation long-distance wireless power transmission for disaster-stricken areas, remote islands, and outer space," https://www.mhi.com/news/250917.html, Sep. 2025.

4. Pendry, J. B., L. Martín-Moreno, and F. J. Garcia-Vidal, "Mimicking surface plasmons with structured surfaces," Science, Vol. 305, No. 5685, 847-848, 2004.
doi:10.1126/science.1098999 Google Scholar

5. Raether, Heinz, Surface Plasmons on Smooth and Rough Surfaces and on Gratings, Springer-Verlag, New York, 1988.
doi:10.1007/bfb0048317
