Abstract

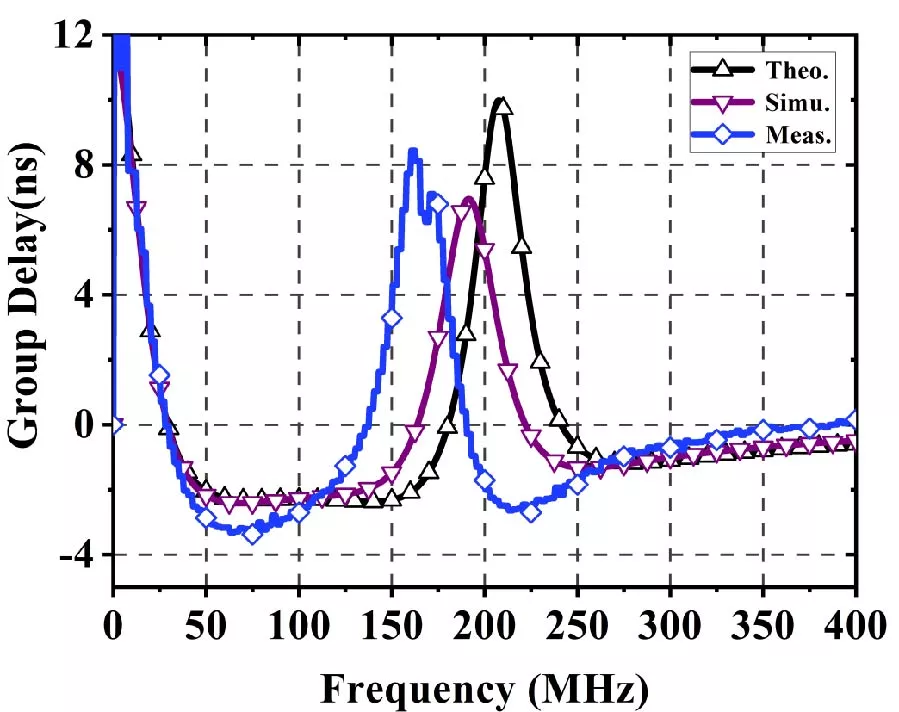

This study proposes a novel π-type circuit topology designed to achieve broadband and flat negative group delay (NGD) characteristics. Featuring a simple structure composed entirely of passive lumped elements, the proposed design offers significant advantages in terms of ease of fabrication, low cost, and seamless integration into larger microwave systems. First, a comprehensive theoretical analysis was conducted to establish the operational principles and derive the design equations. We then systematically investigated the sensitivity of the circuit's performance to variations in individual component values, which provides crucial guidelines for practical implementation. To validate our theoretical findings, a physical prototype with compact dimensions of 32 mm × 35 mm was designed and fabricated. Experimental results demonstrate that at the center frequency of 107.5 MHz, the circuit achieves an NGD of -2.27 ns with an insertion loss of 19.5 dB. Notably, the circuit maintains a wide flat NGD bandwidth of 151 MHz, exhibiting a group delay fluctuation of merely 4.1% across the band. These results confirm the effectiveness and robustness of the proposed circuit for broadband microwave applications.

1. Wan, Fayu, Taocheng Gu, Blaise Ravelo, Binhong Li, Jing Cheng, Qingyun Yuan, and Junxiang Ge, "Negative group delay theory of a four-port RC-network feedback operational amplifier," IEEE Access, Vol. 7, 75708-75720, 2019.
doi:10.1109/access.2019.2922422 Google Scholar

2. Ravelo, Blaise, Fayu Wan, and Jiao Feng, "All-pass negative group delay function with transmission line feedback topology," IEEE Access, Vol. 7, 155711-155723, 2019.
doi:10.1109/access.2019.2949642 Google Scholar

3. Xiao, Jian-Kang, Qiu-Fen Wang, and Jian-Guo Ma, "Negative group delay circuits and applications: Feedforward amplifiers, phased-array antennas, constant phase shifters, non-foster elements, interconnection equalization, and power dividers," IEEE Microwave Magazine, Vol. 22, No. 2, 16-32, 2021.
doi:10.1109/mmm.2020.3035862 Google Scholar

4. Ravelo, Blaise, Marc Le Roy, and André Pérennec, "Frequency-independent active phase shifters for UWB applications," The 40th European Microwave Conference, 1774-1777, Paris, France, 2010.
doi:10.23919/EUMC.2010.5616703

5. Mirzaei, Hassan and George V. Eleftheriades, "Arbitrary-angle squint-free beamforming in series-fed antenna arrays using non-foster elements synthesized by negative-group-delay networks," IEEE Transactions on Antennas and Propagation, Vol. 63, No. 5, 1997-2010, 2015.
doi:10.1109/tap.2015.2408364 Google Scholar

6. Gomez-Garcia, Roberto, Jose-Maria Munoz-Ferreras, Wenjie Feng, and Dimitra Psychogiou, "Input-reflectionless negative-group-delay bandstop-filter networks based on lossy complementary duplexers," 2019 IEEE MTT-S International Microwave Symposium (IMS), 1031-1034, Boston, MA, USA, 2019.
doi:10.1109/MWSYM.2019.8700887

7. Kandic, Miodrag and Greg E. Bridges, "Maximally flat negative group delay prototype filter based on capped reciprocal transfer function of classical Bessel filter," Progress In Electromagnetics Research B, Vol. 110, 91-105, 2025.
doi:10.2528/pierb24121308 Google Scholar

8. Gu, Taochen, Fayu Wan, Jiahui Chen, Blaise Ravelo, and Xing Zhao, "Compact and wideband flat negative group delay circuit investigation," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 70, No. 6, 1916-1920, 2023.
doi:10.1109/tcsii.2022.3233620 Google Scholar

9. Wang, Zhongbao, Yuwei Meng, Shaojun Fang, and Hongmei Liu, "Wideband flat negative group delay circuit with improved signal attenuation," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 69, No. 8, 3371-3375, 2022.
doi:10.1109/tcsii.2022.3156537 Google Scholar

10. Wu, Yongle, Handing Wang, Zheng Zhuang, Yuanan Liu, Quan Xue, and Ahmed A. Kishk, "A novel arbitrary terminated unequal coupler with bandwidth-enhanced positive and negative group delay characteristics," IEEE Transactions on Microwave Theory and Techniques, Vol. 66, No. 5, 2170-2184, 2018.
doi:10.1109/tmtt.2018.2809516 Google Scholar

11. Wang, Handing, Yongle Wu, Zehai Wu, Weimin Wang, and Yuanan Liu, "Compact arbitrary terminated power divider with bandwidth-enhanced negative group delay characteristics," International Journal of Circuit Theory and Applications, Vol. 47, No. 6, 909-916, 2019.
doi:10.1002/cta.2610 Google Scholar

12. Yuan, Aixia, Shaojun Fang, Zhongbao Wang, Hongmei Liu, and Hongjun Zhang, "A novel band-stop filter with band-pass, high-pass, and low-pass negative group delay characteristics," International Journal of Antennas and Propagation, Vol. 2021, No. 1, 3207652, 2021.
doi:10.1155/2021/3207652 Google Scholar

13. Yuan, Aixia, Niannan Chang, Junzheng Liu, Zhenping Lan, Yuwei Meng, and Xinqi Guo, "Novel bandstop filter with improved flat NGD characteristics and signal attenuation in passband," IEEE Access, Vol. 12, 28575-28581, 2024.
doi:10.1109/access.2024.3365540 Google Scholar

14. Zheng, Yana, Weimin Wang, and Yongle Wu, "Planar coupled-line-based flat negative group delay microwave circuit with size reduced and bandwidth enhanced," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 70, No. 12, 4339-4343, 2023.
doi:10.1109/tcsii.2023.3284852 Google Scholar

15. Chaudhary, Girdhari and Yongchae Jeong, "Arbitrary terminated negative group delay circuit using signal interference concept," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 30, No. 10, e22341, 2020.
doi:10.1002/mmce.22341 Google Scholar

16. Meng, Yuwei, Aixia Yuan, Zhenping Lan, and Xianying Xu, "A broadband dual-band negative group delay circuit with flat group delay," International Journal of Circuit Theory and Applications, Vol. 53, No. 10, 5760-5768, 2025.
doi:10.1002/cta.4501 Google Scholar

17. Shao, Te, Shaojun Fang, Zhongbao Wang, and Hongmei Liu, "A compact dual-band negative group delay microwave circuit," Radioengineering, Vol. 27, No. 4, 1070-1076, 2018.
doi:10.13164/re.2018.1070 Google Scholar

18. Yuan, Aixia, Niannan Chang, Junzheng Liu, and Yuwei Meng, "A novel flat broadband passive circuit with negative group delay," Circuits, Systems, and Signal Processing, Vol. 43, No. 12, 7564-7575, 2024.
doi:10.1007/s00034-024-02844-6 Google Scholar

19. Meng, Yuwei, Peng Li, Aixia Yuan, and Zhenping Lan, "Compact broadband negative group delay circuit with flatness and bandwidth enhancement," Electronics, Vol. 13, No. 15, 3056, 2024.
doi:10.3390/electronics13153056 Google Scholar
