Abstract

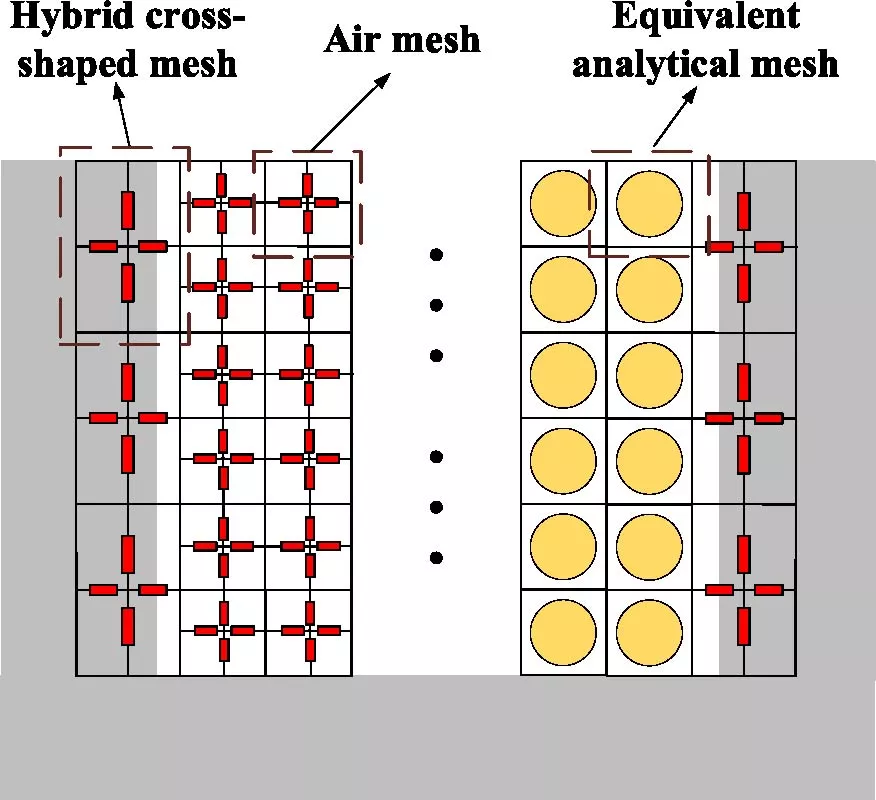

This paper proposes a novel equivalent thermal network (ETN) model for permanent magnet vernier (PMV) machines, featuring a detailed in-slot mesh to address the challenges in analyzing the temperature distribution within the slot. The key innovation is the equivalent analytical mesh, which is the equivalent mesh derived through analytical methods. Firstly, a systematic in-slot mesh partitioning method is presented to solve the temperature distribution in the slot. The method includes detailed mathematical derivation and implementation processes. The novel mesh provides high computational accuracy while maintaining uniform modeling requirements. Secondly, an accelerated solution framework combining a lumped parameter thermal network (LPTN) with the ETN topology is introduced. This hybrid approach significantly reduces both computational time and modeling complexity for temperature field analysis. Finally, thermal testing was conducted on the PMV machine prototype. The accuracy of the proposed ETN model is validated compared to both computational fluid dynamics (CFD) simulations and experimental measurements.

1. Ullah, Sana, Steve P. McDonald, Richard Martin, Maamar Benarous, and Glynn J. Atkinson, "A permanent magnet assist, segmented rotor, switched reluctance drive for fault tolerant aerospace applications," IEEE Transactions on Industry Applications, Vol. 55, No. 1, 298-305, Jan.-Feb. 2019.
doi:10.1109/tia.2018.2864718 Google Scholar

2. Li, Quanfeng, Shichang Liu, Weidong Fang, Xin Li, and Zion Tse, "Sideband vibration suppression of interior permanent magnet synchronous motors for electric vehicles under multiple operating conditions," IEEE Transactions on Transportation Electrification, Vol. 9, No. 1, 322-335, Mar. 2023.
doi:10.1109/tte.2022.3160347 Google Scholar

3. Wang, Mingqiao, Chengde Tong, Zhiyi Song, Jiaqi Liu, and Ping Zheng, "Performance analysis of an axial magnetic-field-modulated brushless double-rotor machine for hybrid electric vehicles," IEEE Transactions on Industrial Electronics, Vol. 66, No. 1, 806-817, Jan. 2019.
doi:10.1109/tie.2018.2844810 Google Scholar

4. Zhao, Wenxiang, Kangkang Du, and Liang Xu, "Design considerations of fault-tolerant permanent magnet vernier machine," IEEE Transactions on Industrial Electronics, Vol. 67, No. 9, 7290-7300, Sep. 2020.
doi:10.1109/tie.2019.2942571 Google Scholar

5. Du, Kangkang, Zhengmeng Liu, Wanshu Yan, Liang Xu, and Guohai Liu, "Analysis of fault-tolerant permanent magnet vernier machines with improved output torque," IEEE Transactions on Energy Conversion, Vol. 40, No. 2, 1434-1444, Jun. 2025.
doi:10.1109/tec.2024.3490667 Google Scholar

6. Du, Kangkang, Liang Xu, Wenxiang Zhao, and Guohai Liu, "Analysis and design of a fault-tolerant permanent magnet vernier machine with improved power factor," IEEE Transactions on Industrial Electronics, Vol. 69, No. 5, 4353-4363, May 2022.
doi:10.1109/tie.2021.3080206 Google Scholar

7. Zhu, Sa, Ming Cheng, and Xiuhua Cai, "Direct coupling method for coupled field-circuit thermal model of electrical machines," IEEE Transactions on Energy Conversion, Vol. 33, No. 2, 473-482, Jun. 2018.
doi:10.1109/tec.2017.2761787 Google Scholar

8. Liang, Dawei, Zi Qiang Zhu, Peng Wang, and Yang Chen, "Identification of thermal parameters for PMSMs based on high-fidelity lumped-parameter thermal model," IEEE Transactions on Transportation Electrification, Vol. 11, No. 4, 9483-9496, 2025.
doi:10.1109/tte.2025.3559581 Google Scholar

9. Burke, Richard, Artur Giedymin, Zhongze Wu, Hawwooi Chuan, Nick Bourne, and J. Gary Hawley, "A lumped parameter thermal model for single-sided AFPM machines with experimental validation," IEEE Transactions on Transportation Electrification, Vol. 6, No. 3, 1065-1083, Sep. 2020.
doi:10.1109/tte.2020.2998110 Google Scholar

10. Boglietti, Aldo, Marco Cossale, Mircea Popescu, and David Alan Staton, "Electrical machines thermal model: Advanced calibration techniques," IEEE Transactions on Industry Applications, Vol. 55, No. 3, 2620-2628, May-Jun. 2019.
doi:10.1109/tia.2019.2897264 Google Scholar

11. Nategh, Shafigh, Hui Zhang, Oskar Wallmark, Aldo Boglietti, Tobias Nassen, and Martin Bazant, "Transient thermal modeling and analysis of railway traction motors," IEEE Transactions on Industrial Electronics, Vol. 66, No. 1, 79-89, Jan. 2019.
doi:10.1109/tie.2018.2821619 Google Scholar

12. Wallscheid, Oliver and Joachim Böcker, "Global identification of a low-order lumped-parameter thermal network for permanent magnet synchronous motors," IEEE Transactions on Energy Conversion, Vol. 31, No. 1, 354-365, Mar. 2016.
doi:10.1109/tec.2015.2473673 Google Scholar

13. Cao, Donghui, Wenxiang Zhao, Jinghua Ji, Ling Ding, and Junqiang Zheng, "A generalized equivalent magnetic network modeling method for vehicular dual-permanent-magnet vernier machines," IEEE Transactions on Energy Conversion, Vol. 34, No. 4, 1950-1962, Dec. 2019.
doi:10.1109/tec.2019.2921699 Google Scholar

14. Romanazzi, P., V. Galizzi, F. Carbone, A. Miotto, and D. A. Howey, "Improved thermal equivalent circuit element applied to an external rotor SPM machine," 2016 XXII International Conference on Electrical Machines (ICEM), 2718-2724, Lausanne, Switzerland, Sep. 2016.
doi:10.1109/ICELMACH.2016.7732906

15. Liang, Dawei, Zi Qiang Zhu, Reza Nilifard, Ziad Azar, and Nima Madani, "Novel high-order lumped-parameter thermal models for predicting spatial temperature distribution in electrical machines," IEEE Transactions on Transportation Electrification, Vol. 11, No. 2, 6675-6689, Apr. 2025.
doi:10.1109/tte.2024.3514776 Google Scholar

16. Zhu, Xiaoyong, Zhangwei Yang, Jiqi Wu, Zixuan Xiang, Shilong Liu, Yunyun Chen, and Li Quan, "Multiphysics dimension-reduced optimization of a PM hub motor based on electromagnetic-thermal mesh-shared network model," IEEE Transactions on Transportation Electrification, Vol. 11, No. 1, 4586-4597, Feb. 2025.
doi:10.1109/tte.2024.3465834 Google Scholar

17. Fan, Xinggang, Ronghai Qu, Jian Li, Dawei Li, Bin Zhang, and Cong Wang, "Ventilation and thermal improvement of radial forced air-cooled FSCW permanent magnet synchronous wind generators," IEEE Transactions on Industry Applications, Vol. 53, No. 4, 3447-3456, Jul.-Aug. 2017.
doi:10.1109/tia.2017.2686350 Google Scholar

18. Idoughi, Laïd, Xavier Mininger, Frédéric Bouillault, Laurent Bernard, and Emmanuel Hoang, "Thermal model with winding homogenization and FIT discretization for stator slot," IEEE Transactions on Magnetics, Vol. 47, No. 12, 4822-4826, Dec. 2011.
doi:10.1109/tmag.2011.2159013 Google Scholar

19. Boglietti, Aldo, Enrico Carpaneto, Marco Cossale, and Silvio Vaschetto, "Stator-winding thermal models for short-time thermal transients: Definition and validation," IEEE Transactions on Industrial Electronics, Vol. 63, No. 5, 2713-2721, May 2016.
doi:10.1109/tie.2015.2511170 Google Scholar

20. Boglietti, Aldo, Marco Cossale, Silvio Vaschetto, and Thiago Dutra, "Thermal conductivity evaluation of fractional-slot concentrated-winding machines," IEEE Transactions on Industry Applications, Vol. 53, No. 3, 2059-2065, May-Jun. 2017.
doi:10.1109/tia.2017.2672518 Google Scholar

21. Hebala, Ahmed, Peter H. Connor, Stefano Nuzzo, Chris Gerada, and Michael Galea, "A holistic analysis and experimental testing of a passive heat path for electric motors slots," IEEE Transactions on Transportation Electrification, Vol. 11, No. 3, 8128-8138, Jun. 2025.
doi:10.1109/tte.2025.3537161 Google Scholar

22. Fan, Xinggang, Dawei Li, Ronghai Qu, and Cong Wang, "A dynamic multilayer winding thermal model for electrical machines with concentrated windings," IEEE Transactions on Industrial Electronics, Vol. 66, No. 8, 6189-6199, Aug. 2019.
doi:10.1109/tie.2018.2875634 Google Scholar

23. Zhao, Wenxiang, Donghui Cao, Jinghua Ji, Linsen Huang, and Tong Liu, "A generalized mesh-based thermal network model for SPM machines combining coupled winding solution," IEEE Transactions on Industrial Electronics, Vol. 68, No. 1, 116-127, 2021.
doi:10.1109/tie.2020.2965484 Google Scholar

24. Liu, Jinpeng, Xiuhe Wang, Wenliang Zhao, Zezhi Xing, and Han Zhou, "An upgraded hybrid subdomain method toward three-dimensional thermal performance of synchronous reluctance motor," International Journal of Thermal Sciences, Vol. 220, 110284, 2026.
doi:10.1016/j.ijthermalsci.2025.110284 Google Scholar

25. Boglietti, Aldo, Andrea Cavagnino, David Staton, Martin Shanel, Markus Mueller, and Carlos Mejuto, "Evolution and modern approaches for thermal analysis of electrical machines," IEEE Transactions on Industrial Electronics, Vol. 56, No. 3, 871-882, Mar. 2009.
doi:10.1109/tie.2008.2011622 Google Scholar

26. Anteby, I. and I. Shai, "Modified conduction shape factors for isothermal bodies embedded in a semi-infinite medium," Numerical Heat Transfer, Part A: Applications, Vol. 23, No. 2, 233-245, 1993.
doi:10.1080/10407789308913670 Google Scholar

27. Ke, Hao, Zhengmeng Liu, Qian Chen, Guohai Liu, and Gaohong Xu, "Analysis of a spoke-type ferrite PM motor with assisted poles based on equivalent magnetic network with hybrid cross-shaped mesh elements," IET Electric Power Applications, Vol. 17, No. 4, 474-486, Apr. 2023.
doi:10.1049/elp2.12283 Google Scholar

Mr. Yuxiao Wang

Dr. Zhengmeng Liu

Dr. Hao Ke

Dr. Qian Chen

Dr. Guohai Liu
