Abstract

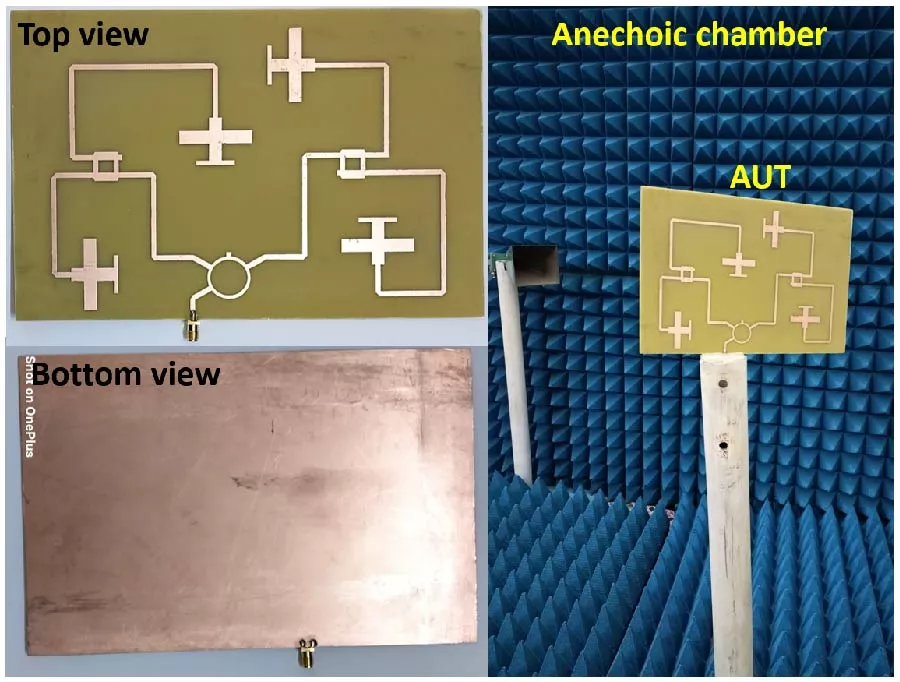

This work presents a dual-band circularly polarized antenna array in which adjacent elements are excited with quadrature phase progression using a cascaded hybrid-coupler feeding network comprising one rat-race coupler and two branch-line couplers. Double-T monopole elements enable dual-band operation, achieving impedance bandwidths of 300 MHz (2.4-2.7 GHz) and 975 MHz (5.025-6 GHz) with corresponding axial-ratio bandwidths of 110 MHz and 525 MHz. The array provides peak gains of 9.19 dB and 9.49 dB with simulated radiation efficiencies of 90% and 87% in the respective bands. The array yields peak realized gains of 9.19 dBic and 9.49 dBic with simulated total efficiencies of 90% and 87% in the corresponding bands. Unlike sequential rotation or multilayer CP arrays, the proposed single-layer planar hybrid-coupler network ensures frequency-stable dual band circular polarization. An analytical formulation of the array factor and axial ratio sensitivity is provided to clarify the CP synthesis mechanism and its suitability for compact vehicular platforms.
