Abstract

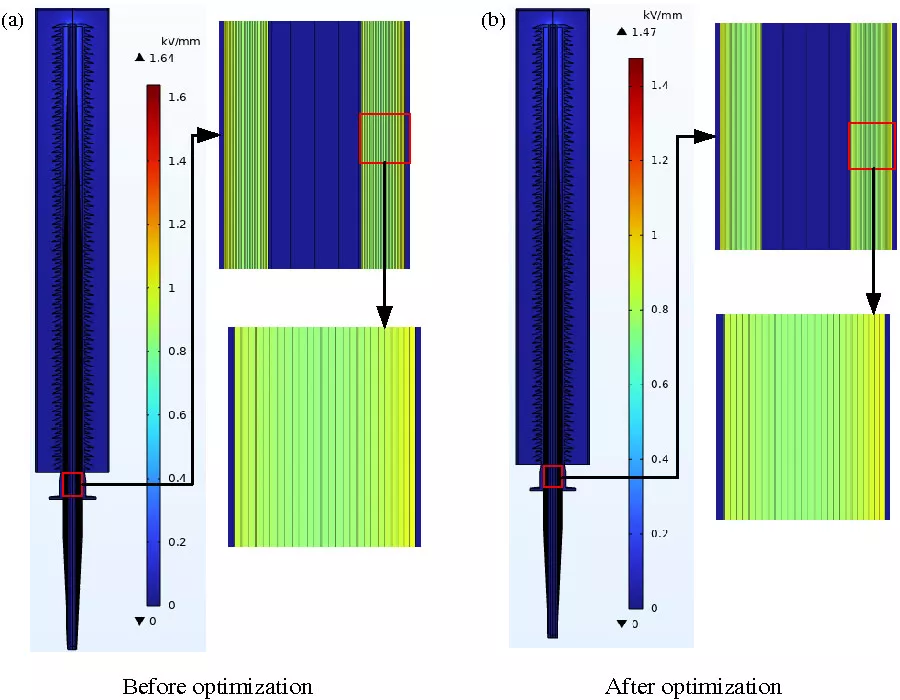

Valve-side bushings in HVDC converter transformers operate under composite AC-DC electric stresses, where temperature-dependent conductivity induces significant redistribution of electric field. In this study, a unified electro-thermal coupled model is developed for a 226 kV capacitive grading structure. Two insulation margin indices corresponding to DC lifetime stress and AC partial discharge stress are defined, and a multi-objective optimization model is formulated to minimize the normalized variances of both margins. An improved multi-objective grey wolf optimizer with a nonlinear convergence factor and a crowding-solution screening mechanism is proposed to enhance convergence and Pareto-solution quality. Results show that the improved algorithm yields better Pareto-solution diversity and uniformity than the standard method, while the optimized structure reduces the maximum DC and AC electric fields by about 6.2% and 10.4%, respectively. The proposed method provides an effective design approach for improving insulation coordination and reliability of valve-side bushings under composite AC-DC stresses.

1. Alassi, Abdulrahman, Santiago Bañales, Omar Ellabban, Grain Adam, and Callum MacIver, "HVDC transmission: Technology review, market trends and future outlook," Renewable and Sustainable Energy Reviews, Vol. 112, 530-554, Sep. 2019.
doi:10.1016/j.rser.2019.04.062 Google Scholar

2. Murugan, Raji and Raju Ramasamy, "Understanding the power transformer component failures for health index-based maintenance planning in electric utilities," Engineering Failure Analysis, Vol. 96, 274-288, Feb. 2019.
doi:10.1016/j.engfailanal.2018.10.011 Google Scholar

3. Chen, Ming, Xuandong Liu, Yuhang Shao, Hao Tang, Zhicheng Wu, Qiaogen Zhang, and Jinzhong Li, "Cracking risk analysis and control for high-voltage dry-type valve-side bushings," IET Generation, Transmission & Distribution, Vol. 14, No. 26, 6555-6561, Dec. 2020.
doi:10.1049/iet-gtd.2020.1196 Google Scholar

4. Yang, Lijun, Zhidong Cheng, Li Cheng, and Ruijin Liao, "Influence of oil–paper configuration on electric field distribution of main insulation structure on valve-side winding of UHV-DC converter transformer," IET Science, Measurement & Technology, Vol. 16, No. 2, 90-100, Mar. 2022.
doi:10.1049/smt2.12087 Google Scholar

5. Du, Boxue, Rui Chang, Wenbo Zhu, Jin Li, and Jinpeng Jiang, "Temperature‐dependent surface charge and discharge behaviour of converter transformer oil–paper insulation under DC voltage," IET Science, Measurement & Technology, Vol. 13, No. 1, 29-34, Jan. 2019.
doi:10.1049/iet-smt.2018.5018 Google Scholar

6. Van Hertem, Dirk, Willem Leterme, Geraint Chaffey, Mudar Abedrabbo, Mian Wang, Firew Zerihun, and Mike Barnes, "Substations for future HVdc grids: Equipment and configurations for connection of HVdc network elements," IEEE Power and Energy Magazine, Vol. 17, No. 4, 56-66, Jul.-Aug. 2019.
doi:10.1109/mpe.2019.2909006 Google Scholar

7. Li, Binbin, Jianying Liu, Zhiyuan Wang, Shuxin Zhang, and Dianguo Xu, "Modular high-power DC-DC converter for MVDC renewable energy collection systems," IEEE Transactions on Industrial Electronics, Vol. 68, No. 7, 5875-5886, Jul. 2021.
doi:10.1109/tie.2020.2994878 Google Scholar

8. Acevedo, Armando L. Figueroa, Ali Jahanbani-Ardakani, Hussam Nosair, Abhinav Venkatraman, James D. McCalley, Aaron Bloom, Dale Osborn, Jay Caspary, James Okullo, Jordan Bakke, and Harvey Scribner, "Design and valuation of high-capacity HVDC macrogrid transmission for the continental US," IEEE Transactions on Power Systems, Vol. 36, No. 4, 2750-2760, Jul. 2021.
doi:10.1109/tpwrs.2020.2970865 Google Scholar

9. Li, Junhao, Xutao Han, Zehui Liu, Xiu Yao, and Yanming Li, "PD characteristics of oil-pressboard insulation under AC and DC mixed voltage," IEEE Transactions on Dielectrics and Electrical Insulation, Vol. 23, No. 1, 444-450, Feb. 2016.
doi:10.1109/tdei.2015.004650 Google Scholar

10. Wei, Yan-Hui, Hai-Bao Mu, Guan-Jun Zhang, and George Chen, "A study of oil-impregnated paper insulation aged with thermal-electrical stress: PD characteristics and trap parameters," IEEE Transactions on Dielectrics and Electrical Insulation, Vol. 23, No. 6, 3411-3420, Dec. 2016.
doi:10.1109/tdei.2016.005749 Google Scholar

11. Hesamzadeh, Mohammad R., Nasser Hosseinzadeh, and Peter Wolfs, "An advanced optimal approach for high voltage AC bushing design," IEEE Transactions on Dielectrics and Electrical Insulation, Vol. 15, No. 2, 461-466, Apr. 2008.
doi:10.1109/tdei.2008.4483465 Google Scholar

12. Cao, Wen, Wei Shen, Baosheng He, and Kai Wu, "Structural design for DC bushing core based on the material life," IEEE Transactions on Dielectrics and Electrical Insulation, Vol. 20, No. 1, 281-288, Feb. 2013.
doi:10.1109/tdei.2013.6451368 Google Scholar

13. Zhang, Shiling, Zongren Peng, and Peng Liu, "Inner insulation structure optimization of UHV RIP oil-SF6 bushing using electro-thermal simulation and advanced equal margin design method," IEEE Transactions on Dielectrics and Electrical Insulation, Vol. 21, No. 4, 1768-1777, Aug. 2014.
doi:10.1109/tdei.2014.004211 Google Scholar

14. Du, Boxue, Hanlei Sun, Jinpeng Jiang, Xiaoxiao Kong, and Wei Yang, "Temperature-dependent electric field distribution in ±800 kV valve-side bushing insulation for a converter transformer," High Voltage, Vol. 6, No. 1, 106-115, Feb. 2021.
doi:10.1049/hve.2019.0385 Google Scholar

15. Wang, Qingyu, Gengsheng Xie, Huidong Tian, Zongren Peng, and Xi Yang, "Electro-thermal coupling field simulation of converter transformer valve side bushings," IEEJ Transactions On Electrical And Electronic Engineering, Vol. 16, No. 2, 248-258, Feb. 2021.
doi:10.1002/tee.23291 Google Scholar

16. Akbari, Milad, Mehdi Allahbakhshi, and Rashid Mahmoodian, "Heat analysis of the power transformer bushings in the transient and steady states considering the load variations," Applied Thermal Engineering, Vol. 121, 999-1010, Jul. 2017.
doi:10.1016/j.applthermaleng.2017.05.004 Google Scholar

17. Tang, Hao, Guangning Wu, Jiang Deng, Ming Chen, Xining Li, and Kai Liu, "Electro-thermal comprehensive analysis method for defective bushings in HVDC converter transformer valve-side under multiple-frequency voltage and current harmonics," International Journal of Electrical Power & Energy Systems, Vol. 130, 106777, Sep. 2021.
doi:10.1016/j.ijepes.2021.106777 Google Scholar

18. Yang, Li Jun, Weidong Sun, Sihang Gao, and Jian Hao, "Thermal aging test for transformer oil-paper insulation under over-load condition temperature," IET Generation, Transmission & Distribution, Vol. 12, No. 12, 2846-2853, Jul. 2018.
doi:10.1049/iet-gtd.2017.1334 Google Scholar

19. Mirjalili, Seyedali, Shahrzad Saremi, Seyed Mohammad Mirjalili, and Leandro Dos S. Coelho, "Multi-objective grey wolf optimizer: A novel algorithm for multi-criterion optimization," Expert Systems with Applications, Vol. 47, 106-119, Apr. 2016.
doi:10.1016/j.eswa.2015.10.039 Google Scholar

20. Mirjalili, Seyedali, Seyed Mohammad Mirjalili, and Andrew Lewis, "Grey wolf optimizer," Advances in Engineering Software, Vol. 69, 46-61, Mar. 2014.
doi:10.1016/j.advengsoft.2013.12.007 Google Scholar

21. Makhadmeh, Sharif Naser, Osama Ahmad Alomari, Seyedali Mirjalili, Mohammed Azmi Al-Betar, and Ashraf Elnagar, "Recent advances in multi-objective grey wolf optimizer, its versions and applications," Neural Computing and Applications, Vol. 34, No. 22, 19723-19749, 2022.
doi:10.1007/s00521-022-07704-5 Google Scholar

22. Liu, Junfeng, Zhe Yang, and Dingfang Li, "A multiple search strategies based grey wolf optimizer for solving multi-objective optimization problems," Expert Systems with Applications, Vol. 145, 113134, May 2020.
doi:10.1016/j.eswa.2019.113134 Google Scholar

23. Yang, Yefeng, Bo Yang, Shilong Wang, Tianguo Jin, and Shi Li, "An enhanced multi-objective grey wolf optimizer for service composition in cloud manufacturing," Applied Soft Computing, Vol. 87, 106003, Feb. 2020.
doi:10.1016/j.asoc.2019.106003 Google Scholar

24. Eappen, Geoffrey and T. Shankar, "Multi-objective modified grey wolf optimization algorithm for efficient spectrum sensing in the cognitive radio network," Arabian Journal for Science and Engineering, Vol. 46, No. 4, 3115-3145, 2021.
doi:10.1007/s13369-020-05084-3 Google Scholar
