Abstract

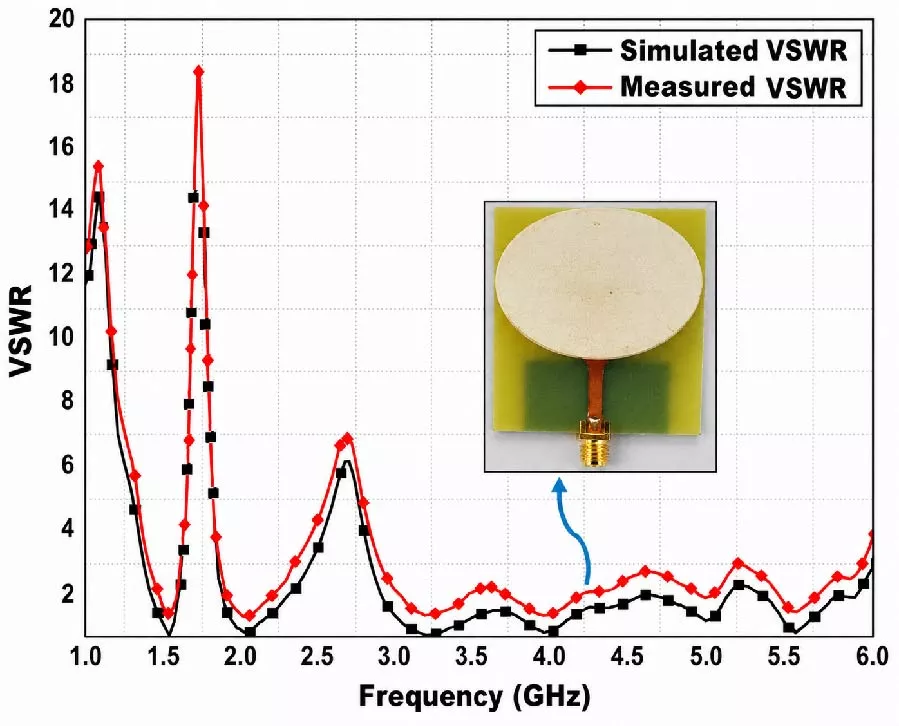

In this study, a novel miniaturized multiband flowerpot-shaped patch-based cylindrical dielectric resonator antenna (FPSDRA) is proposed for 5G-enabled GNSS (GPS), UMTS, PCS, Wi-Fi5, WiMAX, and NR 77/78 sub-6 GHz 5G applications. The proposed antenna prototype operates at 1.54 GHz, 2.01 GHz, 3.23 GHz, 3.95 GHz, and 5.54 GHz for the mentioned applications. It employs a novel low-cost flowerpot-shaped radiating patch underneath a cylindrical dielectric resonator (CDR) made of alumina ceramic (Al₂O₃, ∈_DR = 9.8) material and is fed by a combined microstrip-line-tapered trapezoidal feedline. Later, a reduced ground plane is used as a reflector on the rear side of the substrate to reduce antenna size. It is made up of a low cost 1.6 mm FR4 laminate sheet (∈_r = 4.4, tanδ = 0.02) and miniaturized to a physical size of 65 × 45 mm². The parametric analysis was carried out for reflection coefficients (S₁₁-dB) by changing the ground plane width, CDRA radius, and flower petal radius to achieve adequate results. Likewise, this prototype has measured reflection coefficient of < -20 dB for 1.54 GHz (L1-band), < -25 dB for 2.01/3.23 GHz (S-band), < -20 dB for 3.95 GHz (S-band), and 5.54 GHz (C-band), peak gains of 2.01 dBi, 2.05 dBi, 3.02 dBi, 4.85 dBi, and 2.24 dBi for the respective bands along with adequate -10 dB impedance matching bandwidths and stable radiation features in a convincing agreement compared to earlier designs. The proposed prototype is simulated in CST software, assembled, and tested by VNA and an anechoic chamber setup for L1/S/C band applications.

1. Petosa, A., A. Ittipiboon, Y. M. M. Antar, D. Roscoe, and M. Cuhaci, "Recent advances in dielectric-resonator antenna technology," IEEE Antennas and Propagation Magazine, Vol. 40, No. 3, 35-48, 1998.
doi:10.1109/74.706069 Google Scholar

2. Chen, Horng-Dean, Yuan-Chung Tsai, Chow-Yen-Desmond Sim, and Colin Kuo, "Broadband eight-antenna array design for sub-6 GHz 5G NR bands metal-frame smartphone applications," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 7, 1078-1082, 2020.
doi:10.1109/lawp.2020.2988898 Google Scholar

3. Petosa, Aldo and Apisak Ittipiboon, "Dielectric resonator antennas: A historical review and the current state of the art," IEEE Antennas and Propagation Magazine, Vol. 52, No. 5, 91-116, 2010.
doi:10.1109/map.2010.5687510 Google Scholar

4. Petosa, A., Dielectric Resonator Antenna Handbook, Artech House, Boston/London, 2007.

5. Luk, K. M. and K. W. Leung, Dielectric Resonator Antennas, Research Studies Press, 2003.

6. Prajapati, Pravin, Mohit Anand, Ankita Jadav, and Rutvij Joshi, "Design of single feed compact circularly polarized dual band dielectric resonator antenna for L5 and S bands applications," 2023 IEEE Wireless Antenna and Microwave Symposium (WAMS), 1-5, Ahmedabad, India, 2023.
doi:10.1109/wams57261.2023.10242861

7. Drossos, G., Z. Wu, and L. E. Davis, "Theoretical and experimental investigation of cylindrical dielectric resonator antennas," Microwave and Optical Technology Letters, Vol. 13, No. 3, 119-123, 1996. Google Scholar

8. Long, S., M. McAllister, and Liang Shen, "The resonant cylindrical dielectric cavity antenna," IEEE Transactions on Antennas and Propagation, Vol. 31, No. 3, 406-412, 1983.
doi:10.1109/tap.1983.1143080 Google Scholar

9. Paulena, Gabriel P., Juner M. Vieira, Abdou-Halique A. A. Bouari, Edson R. Schlosser, and Marcos V. T. Heckler, "Compact top-loaded quarter-cylinder dielectric resonator antenna," Journal of Microwaves, Optoelectronics and Electromagnetic Applications, Vol. 24, No. 2, e2025292093, 2025.
doi:10.1590/2179-10742025v24i2292093 Google Scholar

10. Rao, Lavuri Nageswara, Govardhani Immadi, and Madhavareddy Venkata Narayana, "Design of tri-band hybrid dielectric resonator antenna for wireless applications," Progress In Electromagnetics Research Letters, Vol. 98, 75-84, 2021.
doi:10.2528/pierl21032516 Google Scholar

11. Cheh Lin, Irene Kong, Mohd Haizal Jamaluddin, and Abinash Gaya, "A triple band substrate integrated waveguide with dielectric resonator antenna for 4G and 5G applications," Micromachines, Vol. 14, No. 7, 1284, 2023.
doi:10.3390/mi14071284 Google Scholar

12. Bazadry, Nur Atika, Hasliza A. Rahim, Mohd Najib Mohd Yasin, and Mohamedfareq Abdulmalek, "Quadruple band MIMO dielectric resonator antenna for 5G sub-6 GHz applications," Indonesian Journal of Electrical Engineering and Computer Science, Vol. 28, No. 3, 1554-1562, 2022.
doi:10.11591/ijeecs.v28.i3.pp1554-1562 Google Scholar

13. Dwivedy, Biswajit, Tanmaya Kumar Das, Dheeren Ku Mahapatra, and Debasis Gayen, "A semi-angular cylindrical shape based wideband circularly polarized dielectric resonator antenna for C-V2X and sub-6 GHz IoT applications," IEEE Access, Vol. 13, 106218-106229, 2025.
doi:10.1109/access.2025.3580143 Google Scholar

14. Vahora, Anish and Killol Pandya, "Implementation of cylindrical dielectric resonator antenna array for Wi-Fi/wireless LAN/satellite applications," Progress In Electromagnetics Research M, Vol. 90, 157-166, 2020.
doi:10.2528/pierm20011604 Google Scholar

15. Pandya, Killol, Trushit Upadhyaya, Upesh Patel, Rajat Pandey, and Aneri Pandya, "Dielectric resonator antenna array development for GSM 1800/WLAN/radar/direct broadcast satellite applications," Proceedings of the International Conference on IoT Based Control Networks & Intelligent Systems --- ICICNIS 2021, Kerala, India, 2021.
doi:10.2139/ssrn.3884780

16. Gupta, Nancy, Jyoti Saxena, and Kamaljit Singh Bhatia, "Design of wideband flower-shaped microstrip patch antenna for portable applications," Wireless Personal Communications, Vol. 109, No. 1, 17-30, 2019.
doi:10.1007/s11277-019-06547-z Google Scholar

17. Sharma, Manish, Yogendra Kumar Awasthi, Himanshu Singh, Raj Kumar, and Sarita Kumari, "Compact UWB antenna with high rejection triple band-notch characteristics for wireless applications," Wireless Personal Communications, Vol. 97, No. 3, 4129-4143, 2017.
doi:10.1007/s11277-017-4716-z Google Scholar

18. Patel, Upesh, Trushit Upadhyaya, Vishal Sorathiya, Killol Pandya, Abdullah Alwabli, Kavan Dave, Naglaa F. Soliman, and Walid El-Shafai, "Split ring resonator geometry inspired crossed flower shaped fractal antenna for satellite and 5G communication applications," Results in Engineering, Vol. 22, 102110, 2024.
doi:10.1016/j.rineng.2024.102110 Google Scholar

19. Patel, Devendra H. and Gautam Durlabhji Makwana, "Multiband antenna for GPS, IRNSS, sub-6 GHz 5G and WLAN applications," Progress In Electromagnetics Research M, Vol. 116, 53-63, 2023.
doi:10.2528/pierm23020902 Google Scholar

20. Chew, W. C., Lectures on Electromagnetic Field Theory, Purdue University, 2020.

21. Balanis, C. A., Antenna Theory: Analysis and Design, 3rd Ed., Wiley India Pvt. Ltd., 2005.

22. Thereja, B. L., Basic Electrical Engineering, Vol. 2, Tata McGraw Hill, 2000.

Prof. Kaushal Patel

Dr. Falgun Thakkar
