Abstract

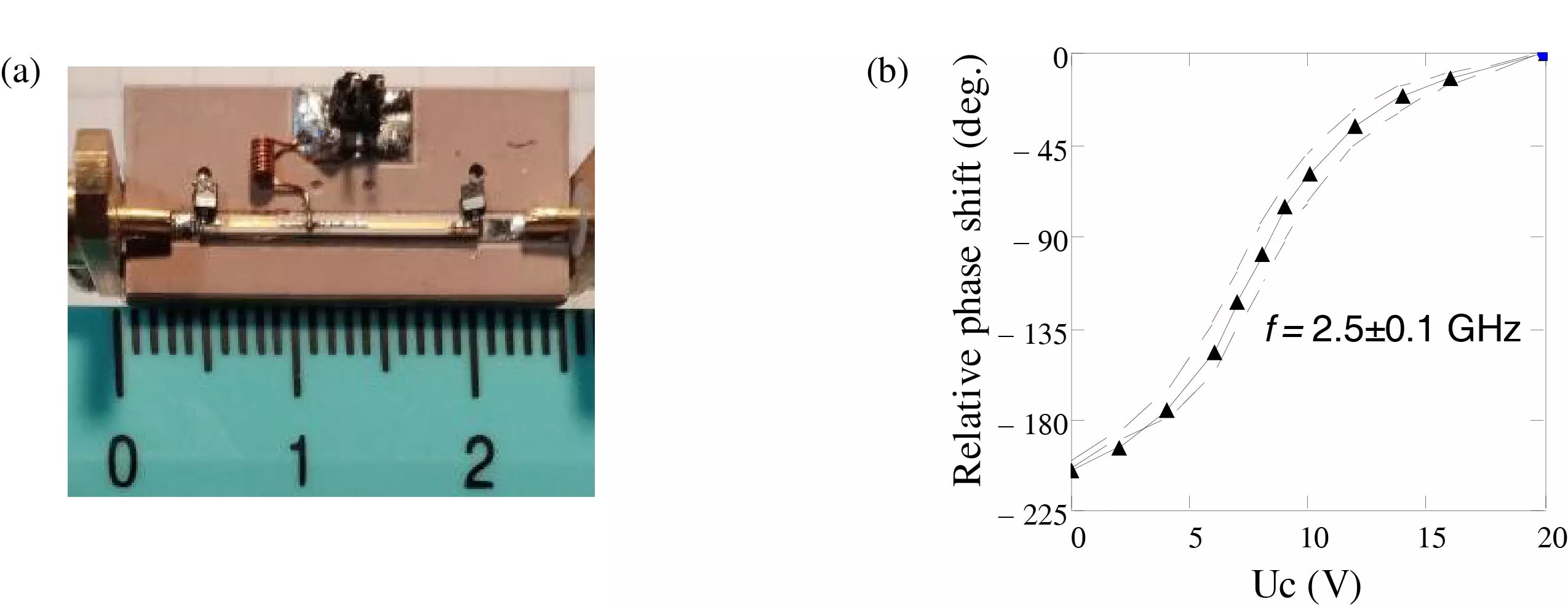

This letter presents a novel tunable reflection-type phase shifter (RTPS) employing an impedance-transforming transdirectional (IT TRD) coupler terminated by varactor-based reflective loads. The coupler is based on double-shielded coupled lines (DSCLs) and is implemented as a distributed surface-mount component, providing inherent impedance transformation for increasing the relative phase shift for given varactors. Fabricated using standard PCB technology, the prototype features intrinsic DC isolation between the RF path and control circuits, requiring only a single control voltage. Measured results show that the RTPS operates over a wide frequency band from 2.2 to 2.8 GHz (24%), achieving a tunable phase shift of up to 180˚ with an insertion loss of 1.3±0.7 dB and a return loss better than 11 dB. The proposed design is characterized by compact physical dimensions of 0.1 × 0.21λ at the center frequency.

1. Lin, Chien-San, Sheng-Fuh Chang, Chia-Chan Chang, and Yi-Hao Shu, "Design of a reflection-type phase shifter with wide relative phase shift and constant insertion loss," IEEE Transactions on Microwave Theory and Techniques, Vol. 55, No. 9, 1862-1868, Sep. 2007.
doi:10.1109/tmtt.2007.903346 Google Scholar

2. Burdin, Francois, Zyad Iskandar, Florence Podevin, and Philippe Ferrari, "Design of compact reflection-type phase shifters with high figure-of-merit," IEEE Transactions on Microwave Theory and Techniques, Vol. 63, No. 6, 1883-1893, Jun. 2015.
doi:10.1109/tmtt.2015.2428242 Google Scholar

3. Abbosh, Amin M., "Compact tunable reflection phase shifters using short section of coupled lines," IEEE Transactions on Microwave Theory and Techniques, Vol. 60, No. 8, 2465-2472, Aug. 2012.
doi:10.1109/tmtt.2012.2198232 Google Scholar

4. Sychev, Aleksandr N., Nickolay Yu. Rudyi, Igor M. Dobush, and Konstantin K. Zharov, "A phase shifter based on trans-directional coupler with DC isolation of RF-path and control circuit," 2018 XIV International Scientific-Technical Conference on Actual Problems of Electronics Instrument Engineering (APEIE), 380-383, 2018.
doi:10.1109/APEIE.2018.8545727

5. Sychev, Aleksandr N., Igor M. Dobush, Nickolay Y. Rudyi, and Sergey M. Struchkov, "Analog phase shifter of X-band implemented with novel trans-directional coupled-line coupler," 2018 48th European Microwave Conference (EuMC), 811-814, Madrid, Spain, 2018.
doi:10.23919/EuMC.2018.8541796

6. Occello, Olivier, Leonel Tiague, Marc Margalef-Rovira, Loic Vincent, Fabien Ndagijimana, and Philippe Ferrari, "High-performance compact reflection-type phase shifter operating at 2 GHz using a transdirectional coupler," 2020 50th European Microwave Conference (EuMC), 550-553, Utrecht, Netherlands, 2021.
doi:10.23919/EuMC48046.2021.9337998

7. Zhang, Tielin, Hongmei Liu, Xuejiao Wang, Yao Wang, and Shaojun Fang, "C-band full-360° reflection-type phase shifter implemented by trans-directional coupler using vertically installed planar technique," 2022 IEEE 9th International Symposium on Microwave, Antenna, Propagation and EMC Technologies for Wireless Communications (MAPE), 1-4, Chengdu, China, 2022.
doi:10.1109/MAPE53743.2022.9935167

8. Liu, Hongmei, Xuejiao Wang, Tielin Zhang, Shao-Jun Fang, and Zhongbao Wang, "Design of full-360° reflection-type phase shifter using trans-directional coupler with multi-resonance loads," Progress In Electromagnetics Research Letters, Vol. 101, 63-70, 2021.
doi:10.2528/pierl21091802 Google Scholar

9. Sychev, Aleksandr N., Vladislav A. Bondar, Kezhik B.-B. Dagba, Anton I. Stepanyuga, and Nickolay Y. Rudyi, "Theory of doubly-shielded coupled lines for directional couplers of various directivity types with impedance transformation," IEEE Transactions on Microwave Theory and Techniques, Vol. 71, No. 5, 2104-2117, May 2023.
doi:10.1109/tmtt.2022.3227310 Google Scholar

10. Wincza, Krzysztof, Kamil Staszek, Robert Smolarz, and Slawomir Gruszczynski, "Impedance-transforming transdirectional coupled-line directional couplers with maximum achievable transformation ratio," IEEE Access, Vol. 12, 93841-93847, 2024.
doi:10.1109/access.2024.3424536 Google Scholar

11. Sychev, Aleksandr N., Sergey A. Artishchev, Natalia S. Trufanova, and Nickolay Y. Rudyi, "Novel designs of quadrature 3-DB impedance-transforming transdirectional couplers based on double-shielded coupled lines," Progress In Electromagnetics Research C, Vol. 160, 56-64, 2025.
doi:10.2528/PIERC25082002 Google Scholar

Prof. Aleksandr N. Sychev

Dr. Sergey A. Artishchev

Dr. Natalia S. Ragimova

Dr. Evgeniy V. Shesterikov
