Abstract

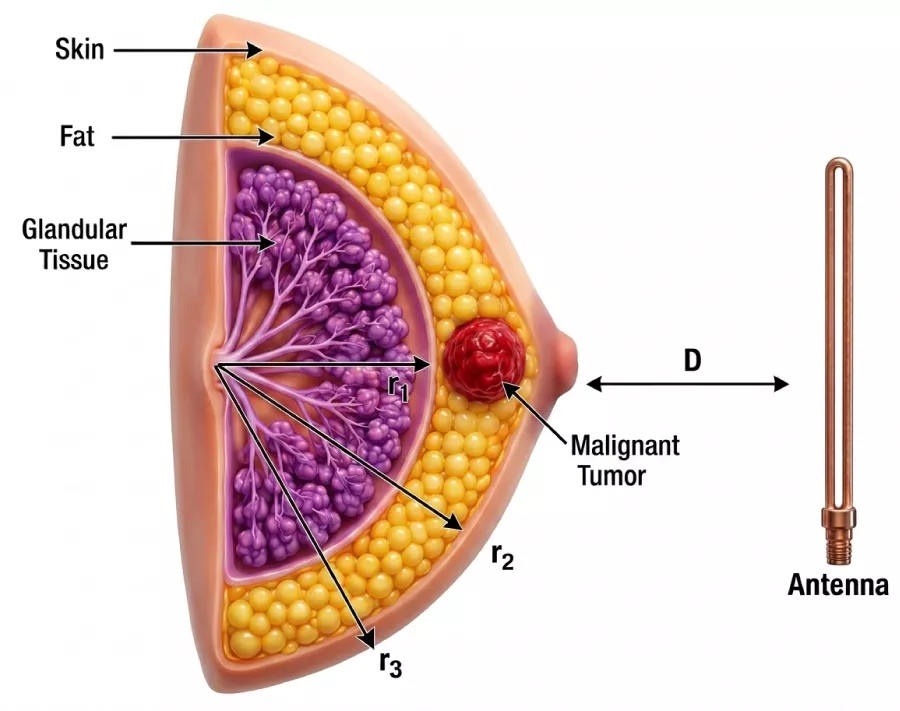

Malignant breast tumors differ greatly from healthy tissue in their electrical properties. The specific absorption rate (SAR), which utilizes dielectric properties, including conductivity and permittivity, is a crucial metric for identifying malignant tissue. The use of narrow-band radar technology has shown promise in this regard. In this study, a mono-static, narrow-band, high-directivity printed patch antenna was designed and fabricated on a Rogers RO4350B substrate (ε_r = 3.48, loss tangent = 0.0037) with dimensions of 70 × 55 × 1.52 mm³ and a 50 Ω feed line, operating at 2 GHz to ensure an optimal balance between penetration depth and spatial resolution. A three-dimensional breast phantom (radius 50 mm) was modeled in CST Microwave Studio to evaluate the SAR distribution under microwave exposure. The results consistently show elevated SAR values in malignant regions, with a direct correlation with tumor size, enabling accurate tumor localization based on the coordinates of the maximum SAR. Crucially, the maximum SAR values (4.3708 W/kg for 1-g and 2.4388 W/kg for 10-g tissue) remain within the IEEE controlled-environment safety limits. Powered by the proposed antenna, this SAR-based approach offers a safe, non-ionizing, and potentially effective technique for detecting small or deeply located breast tumors, confirming that diagnostic capability is achieved without any compromise to patient safety.

1. American Cancer Society "Cancer facts & figures 2025," https://www.cancer.org/content/dam/cancer-org/research/cancer-facts-and-statistics/annual-cancer-facts-and-figures/2025/2025-cancer-facts-and-figures-acs.pdf, 2025.

2. World Health Organization "Cancer fact sheet," https://www.who.int/news-room/fact-sheets/detail/cancer, 2025.

3. Hernström, Veronica, Viktoria Josefsson, Hanna Sartor, David Schmidt, Anna-Maria Larsson, Solveig Hofvind, Ingvar Andersson, Aldana Rosso, Oskar Hagberg, and Kristina Lång, "Screening performance and characteristics of breast cancer detected in the Mammography Screening with Artificial Intelligence trial (MASAI): A randomised, controlled, parallel-group, non-inferiority, single-blinded, screening accuracy study," The Lancet Digital Health, Vol. 7, No. 3, e175-e183, 2025.
doi:10.1016/s2589-7500(24)00267-x Google Scholar

4. Eisen, Andrea, Glenn G. Fletcher, Samantha Fienberg, Ralph George, Claire Holloway, Supriya Kulkarni, Jean M. Seely, and Derek Muradali, "Breast magnetic resonance imaging for preoperative evaluation of breast cancer: A systematic review and meta-analysis," Canadian Association of Radiologists Journal, Vol. 75, No. 1, 118-135, 2024.
doi:10.1177/08465371231184769 Google Scholar

5. Stout, Natasha K., Diana L. Miglioretti, Yu-Ru Su, Christoph I. Lee, Linn Abraham, Oguzhan Alagoz, Harry J. de Koning, John M. Hampton, Louise Henderson, Kathryn P. Lowry, et al. "Breast cancer screening using mammography, digital breast tomosynthesis, and magnetic resonance imaging by breast density," JAMA Internal Medicine, Vol. 184, No. 10, 1222-1231, 2024.
doi:10.1001/jamainternmed.2024.4224 Google Scholar

6. Boulerbah, Rachida, Abdelhalim Chaabane, Ibraheem Al-Naib, Abdulrahman S. M. Alqadami, Djelloul Aissaoui, and Hussein Attia, "Recent advancements in breast cancer detection: A holistic review of microwaves, ultrasound, and photo-acoustic imaging techniques," IEEE Journal of Microwaves, Vol. 5, No. 4, 776-792, 2025.
doi:10.1109/jmw.2025.3580503 Google Scholar

7. De Jesus Aragão, Alexandre, Dionisio Carvalho, Bruno Sanches, and Wilhelmus A. M. Van Noije, "A review on microwave imaging systems for breast cancer detection," IEEE Access, Vol. 12, 190611-190628, 2024.
doi:10.1109/access.2024.3516762 Google Scholar

8. Aboagye, Shadrack O., John A. Hunt, Graham Ball, and Yang Wei, "Portable noninvasive technologies for early breast cancer detection: A systematic review," Computers in Biology and Medicine, Vol. 182, 109219, 2024.
doi:10.1016/j.compbiomed.2024.109219 Google Scholar

9. Han, Bo Bo, Shobhit K. Patel, Ashish Baldania, Yogesh Sharma, and Fahad Ahmed Alzahrani, "Smart graphene-enhanced ceramic material refractive index sensor simulation design developed for highly sensitive breast Cancer detection optimized with machine learning," Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, Vol. 356, 127742, 2026.
doi:10.1016/j.saa.2026.127742 Google Scholar

10. Bhavani, Maddirala Vijaya Lakshmi, Divya Chaturvedi, Tiruganesh Lanka, Tella Anil Raju, Goutam Rana, and Arvind Kumar, "A non-invasive microwave imaging system for breast tumor detection using a high gain vivaldi antenna array sensor," IEEE Sensors Journal, Vol. 25, No. 17, 32631-32640, 2025.
doi:10.1109/jsen.2025.3588605 Google Scholar

11. Saeidi, Tale, Sarmad Nozad Mahmood, Sahar Saleh, Nick Timmons, Ahmed Jamal Abdullah Al-Gburi, and Faroq Razzaz, "Ultra-wideband (UWB) antennas for breast cancer detection with microwave imaging: A review," Results in Engineering, Vol. 25, 104167, 2025.
doi:10.1016/j.rineng.2025.104167 Google Scholar

12. Guetaf, Bilal, Abdelhalim Chaabane, Abderrezak Khalfallaoui, and Hussein Attia, "Narrow-band circularly polarized antenna for medical microwave imaging and health monitoring applications," Applied Computational Electromagnetics Society Journal (ACES), Vol. 38, No. 6, 424-438, 2023.
doi:10.13052/2023.aces.j.380607 Google Scholar

13. Mahfuz, M. M. Hasan, A. M. Mahfouz, Elham Baladi, and Ahmed A. Kishk, "Microstrip patch antennas for breast tumor/cancer cell detection–challenges, designs, and future opportunities: A review," IEEE Access, Vol. 12, 172297-172324, 2024.
doi:10.1109/access.2024.3496117 Google Scholar

14. Chen, Qianyun, Xi Rao, Ding Cao, Qiang Huang, Xue’er Xia, Songsheng Wang, Xi Zhang, Zhai Cai, Shuiyuan Chen, Xi Peng, Lingyan Meng, Zhou Li, Pusheng Zhang, and Shuai Han, "Real-time differentiation between benign and malignant breast tumors and other tissues using dielectric properties," Medical Science Monitor: International Medical Journal of Experimental and Clinical Research, Vol. 31, e947531, 2025.
doi:10.12659/msm.947531 Google Scholar

15. Fernández-Aranzamendi, Elizabeth G., Patricia R. Castillo-Araníbar, Ebert G. San Román Castillo, Belén S. Oller, Luz Ventura-Zaa, Gelber Eguiluz-Rodriguez, Vicente González-Posadas, and Daniel Segovia-Vargas, "Dielectric characterization of ex-vivo breast tissues: Differentiation of tumor types through permittivity measurements," Cancers, Vol. 16, No. 4, 793, 2024.
doi:10.3390/cancers16040793 Google Scholar

16. Hussein, Mousa, Falah Awwad, Dwija Jithin, Husain El Hasasna, Khawlah Athamneh, and Rabah Iratni, "Breast cancer cells exhibits specific dielectric signature in vitro using the open-ended coaxial probe technique from 200 MHz to 13.6 GHz," Scientific Reports, Vol. 9, No. 1, 4681, 2019.
doi:10.1038/s41598-019-41124-1 Google Scholar

17. Ali, Usman, Abdul Basir, Muhammad Zada, Sadiq Ullah, Babar Kamal, and Hyoungsuk Yoo, "Performance improvement of a dual-band textile antenna for on-body through artificial magnetic conductor," IEEE Access, Vol. 11, 72316-72331, 2023.
doi:10.1109/access.2023.3294412 Google Scholar

18. Boulerbah, Rachida, Abdelhalim Chaabane, Hussein Attia, and Djelloul Aissaoui, "Breast cancer detection using circularly polarized printed UWB antenna," 2023 2nd International Conference on Electronics, Energy and Measurement (IC2EM), 1-5, Medea, Algeria, 2023.
doi:10.1109/ic2em59347.2023.10419594

19. Lanka, Tiruganesh, Divya Chaturvedi, M. V. L. Bhavani, and Arvind Kumar, "Design of PRS enabled monopole slotted-antenna sensor for breast tumor detection," Scientific Reports, Vol. 15, No. 1, 19332, 2025.
doi:10.1038/s41598-025-99102-9 Google Scholar

20. Subramanian, Suresh, B. Sundarambal, and D. Nirmal, "Investigation on simulation-based specific absorption rate in ultra-wideband antenna for breast cancer detection," IEEE Sensors Journal, Vol. 18, No. 24, 10002-10009, 2018.
doi:10.1109/jsen.2018.2875621 Google Scholar

21. Banu, M. A. Shahira, S. Vanaja, and S. Poonguzhali, "UWB microwave detection of breast cancer using SAR," 2013 International Conference on Energy Efficient Technologies for Sustainability, 113-118, Nagercoil, India, 2013.
doi:10.1109/ICEETS.2013.6533366

22. Boulerbah, Rachida, Abdelhalim Chaabane, Hussein Attia, and Djelloul Aissaoui, "Breast cancer detection using aperture coupled patch antenna," 2024 3rd International Conference on Advanced Electrical Engineering (ICAEE), 1-4, Sidi-Bel-Abbes, Algeria, 2024.
doi:10.1109/ICAEE61760.2024.10783395

23. Aldhaeebi, Maged A., Thamer S. Almoneef, Hussein Attia, and Omar M. Ramahi, "Near-field microwave loop array sensor for breast tumor detection," IEEE Sensors Journal, Vol. 19, No. 24, 11867-11872, 2019.
doi:10.1109/jsen.2019.2936993 Google Scholar

24. Mahfuz, M. M. Hasan, Md. Rafiqul Islam, Mohamed Hadi Habaebi, Norun Abdul Malek, and Md. Waliullah Sami, "Design of a flexible textile antenna for early breast tumor detections," 2023 9th International Conference on Computer and Communication Engineering (ICCCE), 394-399, Kuala Lumpur, Malaysia, 2023.
doi:10.1109/ICCCE58854.2023.10246060

25. Elsaadi, Mussa and Rema Hamad, "Breast cancer hyperthermia treatment based on slotted patch antenna at 2.45 GHz," Circuits Syst, Vol. 14, No. 5, 10-18, 2023.
doi:10.4236/cs.2023.145002 Google Scholar

26. Bhavani, Maddirala Vijaya Lakshmi, Divya Chaturvedi, Tiruganesh Lanka, and Arvind Kumar, "Development of a QMSIW antenna sensor for tumor detection utilizing a hemispherical multilayered dielectric breast-shaped phantom," IEEE Sensors Journal, Vol. 24, No. 20, 32080-32089, 2024.
doi:10.1109/jsen.2024.3450990 Google Scholar

Ms. Rachida Boulerbah

Dr. Abdelhalim Chaabane

Dr. Djelloul Aissaoui

Dr. Abderrezak Khalfallaoui
