Abstract

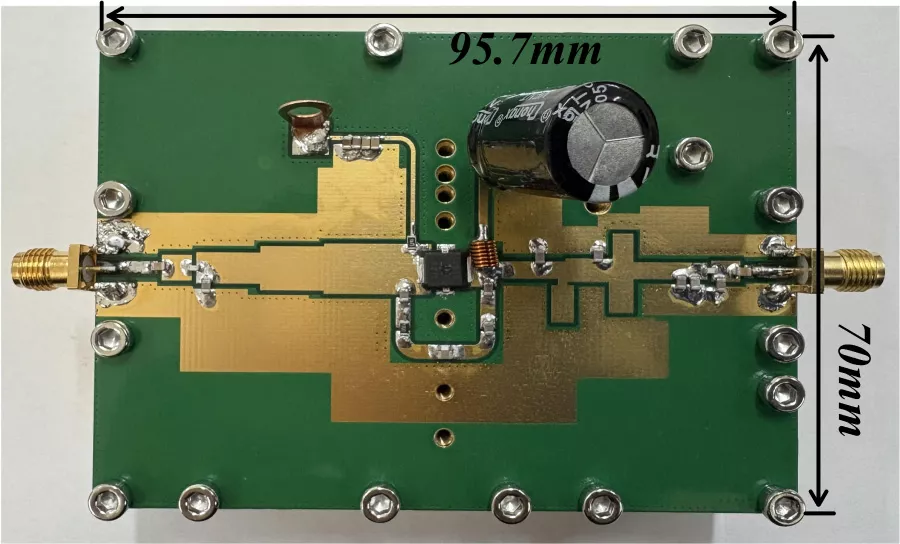

The rapid evolution of wireless communication networks is driving the rapid development of communication systems toward greater integration, wider bandwidth, and higher efficiency. To satisfy the design requirements of broadband, high-efficiency power amplifiers, this study proposes an implementation scheme that integrates filtering, matching, and harmonic-control technologies. In this innovative method, high-order matching networks are converted into low-order passive networks that integrate the parasitic output capacitance and package inductance of transistors, thereby achieving a more compact area. In addition, a dual-stub microstrip line cascaded topology is introduced to suppress the second harmonic. The test results demonstrate that the power amplifier achieves a gain of more than 16.5 dB in the 100-900 MHz frequency band, maintains a drain efficiency of over 55%, with a peak drain efficiency of up to 75% under saturated operation, delivers a saturated output power of 40.5-42 dBm, achieves a second harmonic suppression of up to 61 dBc, and has a relative bandwidth of 160%. This design realizes high-efficiency power transmission performance and demonstrates excellent potential for engineering applications in communication systems.

1. Chen, Shanzhi, Yingmin Wang, Fei Qin, Zukang Shen, and Shaohui Sun, "LTE-HI: A new solution to future wireless mobile broadband challenges and requirements," IEEE Wireless Communications, Vol. 21, No. 3, 70-78, 2014.
doi:10.1109/mwc.2014.6845051 Google Scholar

2. Chen, You-Huei, Tzu-Han Wang, Shu-Chen Lin, Jau-Horng Chen, and Yi-Jan Emery Chen, "A pulse-modulated polar transmitter using direct digital synthesis for 5G NR mobile applications," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 67, No. 10, 1894-1898, 2020.
doi:10.1109/tcsii.2019.2956978 Google Scholar

3. Yang, Mengsu, Jing Xia, Yan Guo, and Anding Zhu, "Highly efficient broadband continuous inverse class-F power amplifier design using modified elliptic low-pass filtering matching network," IEEE Transactions on Microwave Theory and Techniques, Vol. 64, No. 5, 1515-1525, 2016.
doi:10.1109/tmtt.2016.2544318 Google Scholar

4. Shariatifar, Milad, Mohsen Jalali, and Abdolali Abdipour, "A concurrent dual-band continuous Class-F power amplifier with intermodulation impedance tuning: Analysis and design technique," AEU --- International Journal of Electronics and Communications, Vol. 111, 152899, 2019.
doi:10.1016/j.aeue.2019.152899 Google Scholar

5. Zhou, Li-Heng, Xin Yu Zhou, Wing Shing Chan, Jing Zhou Pang, and Derek Ho, "Integrated filtering Class-F power amplifier based on microstrip multimode resonator," 2020 IEEE/MTT-S International Microwave Symposium (IMS), 119-122, Los Angeles, CA, USA, 2020.
doi:10.1109/IMS30576.2020.9223987

6. Sharma, Tushar, Ramzi Darraji, Fadhel Ghannouchi, and Neha Dawar, "Generalized continuous class-F harmonic tuned power amplifiers," IEEE Microwave and Wireless Components Letters, Vol. 26, No. 3, 213-215, 2016.
doi:10.1109/lmwc.2016.2524989 Google Scholar

7. Dhar, Sagar K., Tushar Sharma, Ning Zhu, Ramzi Darraji, Roy Mclaren, Damon G. Holmes, Vince Mallette, and Fadhel M. Ghannouchi, "Input-harmonic-controlled broadband continuous class-F power amplifiers for sub-6-GHz 5G applications," IEEE Transactions on Microwave Theory and Techniques, Vol. 68, No. 7, 3120-3133, 2020.
doi:10.1109/tmtt.2020.2984603 Google Scholar

8. Wright, Peter, Jonathan Lees, Johannes Benedikt, Paul J. Tasker, and Steve C. Cripps, "A methodology for realizing high efficiency class-J in a linear and broadband PA," IEEE Transactions on Microwave Theory and Techniques, Vol. 57, No. 12, 3196-3204, 2009.
doi:10.1109/tmtt.2009.2033295 Google Scholar

9. Guo, Qing-Yi, Xiu Yin Zhang, Jin-Xu Xu, Yuan Chun Li, and Quan Xue, "Bandpass class-F power amplifier based on multifunction hybrid cavity–microstrip filter," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 64, No. 7, 742-746, 2017.
doi:10.1109/tcsii.2016.2600575 Google Scholar

10. Chen, Kenle and Dimitrios Peroulis, "A 3.1-GHz class-F power amplifier with 82% power-added-efficiency," IEEE Microwave and Wireless Components Letters, Vol. 23, No. 8, 436-438, 2013.
doi:10.1109/lmwc.2013.2271295 Google Scholar

11. Rabbi, K., J. Zhou, Y. Huang, Y. Zhuang, N. McEwan, A. Rayit, and R. Rayit, "Highly efficient wideband harmonic-tuned power amplifier using low-pass matching network," 2017 47th European Microwave Conference (EuMC), 292-295, Nuremberg, Germany, 2017.
doi:10.23919/EuMC.2017.8230857

12. Jiao, Lingxiao, Yongle Wu, Zixuan Ning, Weimin Wang, and Yuanan Liu, "A new impedance-transforming dual-band balun with filtering response and favorable output isolations," AEU --- International Journal of Electronics and Communications, Vol. 71, 162-167, 2017.
doi:10.1016/j.aeue.2016.10.019 Google Scholar

13. Zhao, Hongmin, Yongle Wu, Weimin Wang, and Yuanan Liu, "A novel dual-band highly efficient power amplifier for 5G applications," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 32, No. 5, e23093, 2022.
doi:10.1002/mmce.23093 Google Scholar

14. Zhuang, Zheng, Yongle Wu, Mengdan Kong, and Weimin Wang, "High-selectivity single-ended/balanced DC-block filtering impedance transformer and its application on power amplifier," IEEE Transactions on Circuits and Systems I: Regular Papers, Vol. 67, No. 12, 4360-4369, 2020.
doi:10.1109/tcsi.2020.3015883 Google Scholar

15. Chen, Xiaopan, Yongle Wu, and Weimin Wang, "Dual-band, dual-output power amplifier using simplified three-port, frequency-dividing matching network," Electronics, Vol. 11, No. 1, 144, 2022.
doi:10.3390/electronics11010144 Google Scholar

16. Gao, Li, Xiu Yin Zhang, Shichang Chen, and Quan Xue, "Compact power amplifier with bandpass response and high efficiency," IEEE Microwave and Wireless Components Letters, Vol. 24, No. 10, 707-709, 2014.
doi:10.1109/lmwc.2014.2340791 Google Scholar

17. Turulin, I. I. and H. Sh. Mogheer, "Method and algorithm for synthesis of controlled digital low-pass butterworth filters on the example of a 4th order filter," 2022 International Ural Conference on Electrical Power Engineering (UralCon), 336-340, Magnitogorsk, Russian Federation, 2022.
doi:10.1109/UralCon54942.2022.9906684

18. Matthaei, G., L. Young, and E. Jones, Microwave Filters, Impedance-Matching Networks, and Coupling Structures, Artech House, Dedham, MA, USA, 1980.

19. Matthaei, G. L., "Tables of Chebyshev impedance-transforming networks of low-pass filter form," Proceedings of the IEEE, Vol. 52, No. 8, 939-963, 1964.
doi:10.1109/proc.1964.3185 Google Scholar

20. Ceylan, O., H. B. YAĞCI, and S. Paker, "Tunable Class-F high power amplifier at X-Band using GaN HEMT," Turkish Journal of Electrical Engineering and Computer Sciences, Vol. 26, No. 5, 2327-2334, 2018.
doi:10.3906/elk-1803-71 Google Scholar

21. Feng, K., J. Nan, and M. Cong, "Design of LDMOS power amplifier based on D-CRLH bandpass filter matching network," Electronics, Vol. 15, No. 5, 927, 2026.
doi:10.3390/electronics15050927 Google Scholar

22. Aghajani, Sara, Mahmoud Kamarei, and Marziyeh Chegini, "A new approach for ultra-wideband continuous class B/J power amplifier design and fabrication based on increasing efficiency in power loss-less case," AEU --- International Journal of Electronics and Communications, Vol. 174, 155038, 2024.
doi:10.1016/j.aeue.2023.155038 Google Scholar

23. Haider, Muhammad Furqan, Fei You, Tian Qi, Chuan Li, and Shakeel Ahmad, "Co-design of second harmonic-tuned power amplifier and a parallel-coupled stub loaded resonator," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 67, No. 12, 3013-3017, 2020.
doi:10.1109/tcsii.2020.2991888 Google Scholar
