2026-08-25
Accurate Modelling of the Nonlinear Magnetic Restoring Force and the Electromechanical Transduction Coefficient in an Electromagnetic Vibration Energy Harvester
By
Progress In Electromagnetics Research C, Vol. 173, 1-8, 2026
Abstract

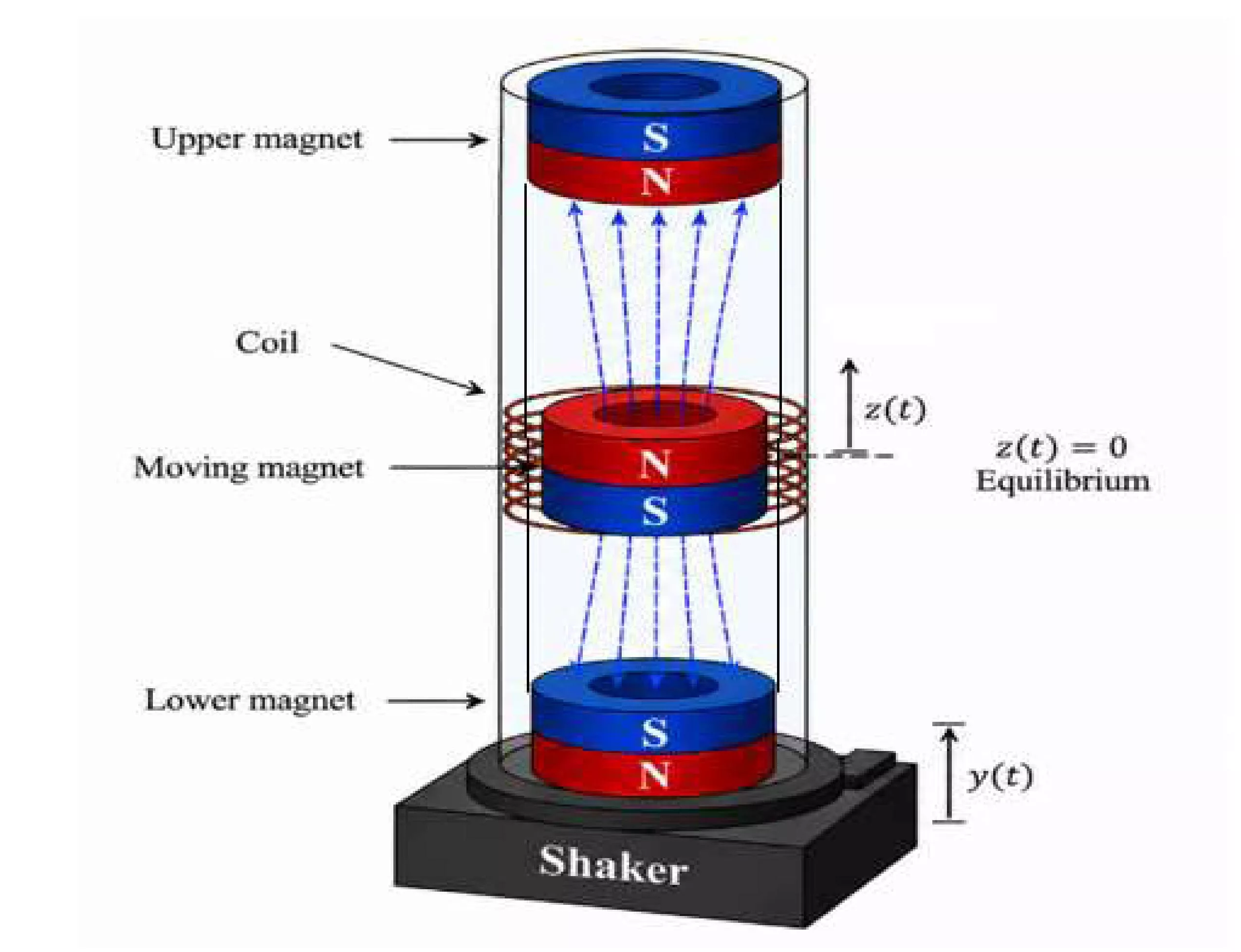

Electromagnetic harvesters based on magnetic levitation have emerged as particularly attractive systems owing to their contactless suspension, low mechanical damping, and inherently nonlinear stiffness behavior, which are suited to low-frequency ambient excitation. The investigated harvester consists of a levitating magnet suspended between two fixed outer magnets via repulsive magnetic forces, with a pickup coil converting oscillatory motion into electrical energy under base excitation. The primary source of difficulty in this system is the nonlinear magnetic restoring force Fmag and the electromechanical transduction coefficient γ, which must be pre-characterized via semi-analytical or finite element methods before any solution can be attempted. Therefore, the accurate pre-characterization of both Fmag and γ is the essential foundation of the entire modelling process. A Fourier space semi-analytical approach is proposed and developed, transforming a three-dimensional magnetostatic problem into a computationally efficient one-dimensional spectral calculation without remeshing. The semi-analytical predictions were validated against COMSOL finite element simulations, and their strong mutual agreement confirmed the accuracy of the proposed method before embedding it into the motion's coupled nonlinear equations.
Citation
Merwan Hebbache, Naamane Mohdeb, Hocine Bouchekhou, Nabil Ikhlef, Hicham Allag, and Abdelghani Kimouche, "Accurate Modelling of the Nonlinear Magnetic Restoring Force and the Electromechanical Transduction Coefficient in an Electromagnetic Vibration Energy Harvester," Progress In Electromagnetics Research C, Vol. 173, 1-8, 2026.
doi:10.2528/PIERC26060705
References

1. Mann, B. P. and N. D. Sims, "Energy harvesting from the nonlinear oscillations of magnetic levitation," Journal of Sound and Vibration, Vol. 319, No. 1-2, 515-530, 2009.
doi:10.1016/j.jsv.2008.06.011        Google Scholar

2. Saha, C. R., T. O’donnell, N. Wang, and P. McCloskey, "Electromagnetic generator for harvesting energy from human motion," Sensors and Actuators A: Physical, Vol. 147, No. 1, 248-253, 2008.
doi:10.1016/j.sna.2008.03.008        Google Scholar

3. Covaci, Corina and Aurel Gontean, "Piezoelectric energy harvesting solutions: A review," Sensors, Vol. 20, No. 12, 3512, 2020.
doi:10.3390/s20123512        Google Scholar

4. Muscat, Andrew, Soham Bhattacharya, and Yong Zhu, "Electromagnetic vibrational energy harvesters: A review," Sensors, Vol. 22, No. 15, 5555, 2022.
doi:10.3390/s22155555        Google Scholar

5. Dowlati, Shakiba, Najib Kacem, and Noureddine Bouhaddi, "Enhancing the performance of vibration energy harvesting based on 2: 1: 2 internal resonance in magnetically coupled oscillators," Micromachines, Vol. 16, No. 1, 23, 2025.
doi:10.3390/mi16010023        Google Scholar

6. Kecik, Krzysztof, "Simultaneous vibration mitigation and energy harvesting from a pendulum-type absorber," Communications in Nonlinear Science and Numerical Simulation, Vol. 92, 105479, 2021.
doi:10.1016/j.cnsns.2020.105479        Google Scholar

7. Sebald, Gael, Hiroki Kuwano, Daniel Guyomar, and Benjamin Ducharne, "Simulation of a Duffing oscillator for broadband piezoelectric energy harvesting," Smart Materials and Structures, Vol. 20, No. 7, 075022, 2011.
doi:10.1088/0964-1726/20/7/075022        Google Scholar

8. Li, Zhen, Lijun Rong, Aoxiang Lan, Mingze Tang, and Yougang Sun, "Design and experimental research of a track vibration energy harvester based on a wideband magnetic levitation structure," Machines, Vol. 14, No. 2, 225, 2026.
doi:10.3390/machines14020225        Google Scholar

9. Imbaquingo, Carlos, Christian Bahl, Andrea R. Insinga, and Rasmus Bjørk, "A two-dimensional electromagnetic vibration energy harvester with variable stiffness," Applied Energy, Vol. 325, 119650, 2022.
doi:10.1016/j.apenergy.2022.119650        Google Scholar

10. Jensen, Tobias Willemoes, Andrea R. Insinga, Johan Christian Ehlers, and Rasmus Bjørk, "The full phase space dynamics of a magnetically levitated electromagnetic vibration harvester," Scientific Reports, Vol. 11, No. 1, 16607, 2021.
doi:10.1038/s41598-021-95478-6        Google Scholar

11. Imbaquingo, Carlos, Christian Bahl, Andrea R. Insinga, and Rasmus Bjørk, "Two-dimensional elliptically shaped electromagnetic vibration energy harvester," Sensors and Actuators A: Physical, Vol. 350, 114091, 2023.
doi:10.1016/j.sna.2022.114091        Google Scholar

12. Beleggia, M., S. Tandon, Y. Zhu, and M. De Graef, "On the magnetostatic interactions between nanoparticles of arbitrary shape," Journal of Magnetism and Magnetic Materials, Vol. 278, No. 1-2, 270-284, 2004.
doi:10.1016/j.jmmm.2003.12.1314        Google Scholar

13. Beleggia, M., D. Vokoun, and M. De Graef, "Demagnetization factors for cylindrical shells and related shapes," Journal of Magnetism and Magnetic Materials, Vol. 321, No. 9, 1306-1315, 2009.
doi:10.1016/j.jmmm.2008.11.046        Google Scholar

14. Beleggia, M. and M. De Graef, "General magnetostatic shape–shape interactions," Journal of Magnetism and Magnetic Materials, Vol. 285, No. 1-2, L1-L10, 2005.
doi:10.1016/j.jmmm.2004.09.004        Google Scholar

15. Mohdeb, Naamane, Hicham Allag, and Tarik Hacib, "A new approximation for calculating the attraction force in cylindrical permanent magnets arrays and cylindrical linear single-axis-actuator," Progress In Electromagnetics Research C, Vol. 91, 213-225, 2019.
doi:10.2528/pierc19010804        Google Scholar
