A Miniaturized High-Efficiency Harmonic-Tuned Class-F Power Oscillator
By
Guangshuang Yu,

    Mr. Guangshuang Yu

    Liaoning Technical University

    China

    Homepage

Taijun Liu,

    Dr. Taijun Liu

    College of Information Science and Engineering

    Ningbo University

    China

    Homepage

Jingchang Nan

    Professor Jingchang Nan

    Liaoning Technical University

    China

    Homepage

Progress In Electromagnetics Research C, Vol. 172, 458-467, 2026
doi:10.2528/PIERC26060902 | Google Scholar

Abstract

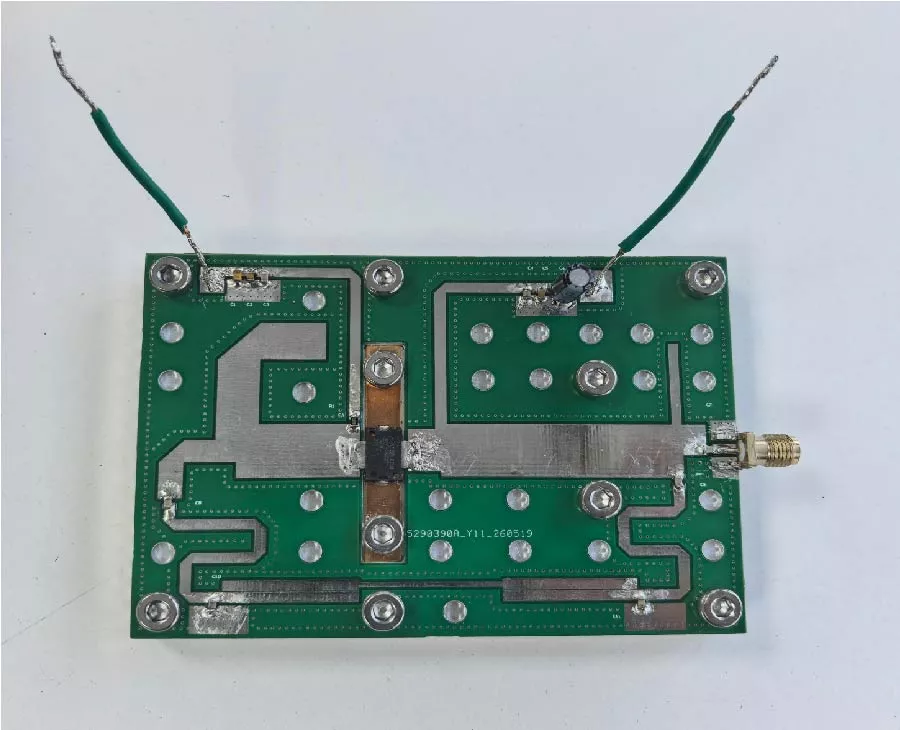

To address the requirements for compact size and low cost of RF signal sources, a novel design method for high-efficiency Class-F power oscillators is proposed. The key contribution of this method is the integrated design of the harmonic-tuning and impedance-matching networks. An asymmetric π-type harmonic tuning network is proposed to simultaneously realize harmonic termination for high-efficiency Class-F operation and fundamental load impedance matching, thereby significantly reducing circuit footprint. The amplifier's output was coupled to a feedback network via a capacitor and returned to the amplifier through a frequency-selective network, enabling a stable self-excited oscillation. To verify the design, a power oscillator is implemented using a low-cost LDMOS transistor and an FR4 substrate. The experimental results show that the fabricated oscillator operates at 918\,MHz with a direct current-to-radio-frequency (DC-RF) efficiency of 68.20% and a maximum output power of 42.90 dBm. Additionally, a low phase noise of -130 dBc/Hz at 1 MHz offset is achieved, robustly validating the effectiveness of this approach.
Download Full Article (35) View Full Article volume
Citation
Guangshuang Yu, Taijun Liu, and Jingchang Nan, "A Miniaturized High-Efficiency Harmonic-Tuned Class-F Power Oscillator," Progress In Electromagnetics Research C, Vol. 172, 458-467, 2026.
doi:10.2528/PIERC26060902
References

1. Yotov, Ivo, Georgi Todorov, and Todor Todorov, "Study of self-excited thermomechanical oscillator with shape memory alloys," Actuators, Vol. 13, No. 5, 182, 2024.
doi:10.3390/act13050182        Google Scholar

2. Kudinov, Sergey and Viacheslav Ivanov, "Optimization of phase synchronization of radio pulses of a transistor microwave self-excited oscillator," 2024 IEEE Ural-Siberian Conference on Biomedical Engineering, Radioelectronics and Information Technology (USBEREIT), 284-287, Yekaterinburg, Russian Federation, May 2024.
doi:10.1109/usbereit61901.2024.10584014

3. Shin, Suk Woo, Gil Wong Choi, Hyoung Jong Kim, Su Hyun Lee, Sang Hoon Kim, and Jin Joo Choi, "Frequency-tunable high-efficiency power oscillator using GaN HEMT," 2010 IEEE MTT-S International Microwave Symposium, 1000-1003, Anaheim, CA, USA, May 2010.
doi:10.1109/mwsym.2010.5516887

4. Kim, Sang Hoon, Hyoung Jong Kim, Suk Woo Shin, Jae Duk Kim, Bo Ki Kim, and Jin Joo Choi, "Combined power oscillator using GaN HEMT," 2011 IEEE MTT-S International Microwave Symposium, 1-4, Baltimore, MD, USA, Jun. 2011.
doi:10.1109/mwsym.2011.5972775

5. Lee, Sanghun, Kisang Jung, Hak Seong Kim, Huan Nguyen, Thinh Nguyen, Luan Nguyen, Cuong Huynh, Kunhee Cho, and Jusung Kim, "Frequency-locked RF power oscillator with 43-dbm output power and 58% efficiency," IEEE Transactions on Very Large Scale Integration (VLSI) Systems, Vol. 29, No. 4, 739-746, Apr. 2021.
doi:10.1109/tvlsi.2021.3056720        Google Scholar

6. Ahmadi, Mohammad Mahdi and Shirin Pezeshkpour, "A self-starting class-E power oscillator with an inverting gate driver," IEEE Transactions on Industrial Electronics, Vol. 67, No. 10, 8344-8354, Oct. 2020.
doi:10.1109/tie.2019.2949533        Google Scholar

7. Rezk, Theodora M., Ghazal A. Fahmy, Sameh A. Ibrahim, and Hani F. Ragai, "A 433 MHz e-GaN HEMT based power oscillator for far field wireless power transfer," 2020 8th International Japan-Africa Conference on Electronics, Communications, and Computations (JAC-ECC), 80-83, Alexandria, Egypt, Dec. 2020.
doi:10.1109/jac-ecc51597.2020.9355883

8. Rezk, Theodora M., Ghazal A. Fahmy, Sameh A. Ibrahim, and Hani F. Ragai, "Design of a differential power oscillator for 433 MHz WPT using e-GaN HEMTs," Ain Shams Engineering Journal, Vol. 13, No. 3, 101581, May 2022.
doi:10.1016/j.asej.2021.09.008        Google Scholar

9. Pezeshkpour, Shirin and Mohammad Mahdi Ahmadi, "A self-tuned class-E/F3 power oscillator," IEEE Transactions on Power Electronics, Vol. 39, No. 9, 11398-11408, Sep. 2024.
doi:10.1109/tpel.2024.3390243        Google Scholar

10. Shin, Suk-Woo and Jin-Joo Choi, "Frequency-tunable 150W harmonic-tuned power oscillator," Microwave and Optical Technology Letters, Vol. 53, No. 6, 1459-1462, Jun. 2011.
doi:10.1002/mop.25970        Google Scholar

11. Hwang, Woong Jae, Suk Woo Shin, Gil Wong Choi, Hyoung Jong Kim, and Jin Joo Choi, "High-efficiency power oscillator using harmonic-tuned matching network," 2009 IEEE MTT-S International Microwave Symposium Digest, 1505-1508, Boston, MA, USA, Jun. 2009.
doi:10.1109/mwsym.2009.5165994

12. Lee, Seunghyun, Sanggeun Jeon, and Jinho Jeong, "Harmonic-tuned high efficiency RF oscillator using GaN HEMTs," IEEE Microwave and Wireless Components Letters, Vol. 22, No. 6, 318-320, Jun. 2012.
doi:10.1109/lmwc.2012.2197816        Google Scholar

13. Jeong, Jinho and Daeung Jang, "Design technique for harmonic-tuned RF power oscillators for high-efficiency operation," IEEE Transactions on Industrial Electronics, Vol. 62, No. 1, 221-228, Jan. 2015.
doi:10.1109/tie.2014.2331021        Google Scholar

14. Guo, Qingyu, Yifeng Lu, Chaowu Mao, and Jianyang Zhou, "Design of 2.45-GHz high-efficiency miniaturized power oscillator using GaN HEMT," Journal of Physics: Conference Series, Vol. 2527, No. 1, 012064, 2023.
doi:10.1088/1742-6596/2527/1/012064

15. Kim, Juwan, Inho Park, and Hyunchul Ku, "Design of a highly efficient N-stage harmonic terminated voltage multiplier for wireless power transfer," Energies, Vol. 14, No. 21, 7203, Nov. 2021.
doi:10.3390/en14217203        Google Scholar

16. Iqbal, Hasan and Arif Sarwat, "Design and implementation of hybrid GA-PSO-based harmonic mitigation technique for modified packed U-cell inverters," Energies, Vol. 18, No. 1, 124, Dec. 2025.
doi:10.3390/en18010124        Google Scholar

17. Wu, Qixiu, Wei Deng, Yaqian Sun, Haikun Jia, Hongzhuo Liu, Shiwei Zhang, Zhihua Wang, and Baoyong Chi, "An enhanced class-F dual-core VCO with common-mode-noise self-cancellation and isolation technique," IEEE Journal of Solid-State Circuits, Vol. 59, No. 8, 2441-2454, Aug. 2024.
doi:10.1109/jssc.2024.3367351        Google Scholar

18. Hou, Yaru, Runlong Li, Pei-Ling Chi, and Tao Yang, "A dual-core dual-mode class-F VCO with wide frequency tuning range using wide inductance-switching-range inductor," IEEE Microwave and Wireless Technology Letters, Vol. 35, No. 4, 460-463, Apr. 2025.
doi:10.1109/lmwt.2025.3536158        Google Scholar

19. Kim, Jisu and Juntaek Oh, "Ku-band class-F VCO based on independent third-harmonic-controlled resonator," IEEE Microwave and Wireless Technology Letters, 1-4, 2026.
doi:10.1109/lmwt.2026.3707908        Google Scholar

20. Jang, Sheng-Lyang, Zhen-Wei Yeh, and Wen-Cheng Lai, "N-core class-F LC voltage-controlled-oscillators using area-efficient series-LC resonator," 2026 IEEE Texas Symposium on Wireless and Microwave Circuits and Systems (WMCS), 1-5, Waco, TX, USA, Apr. 2026.
doi:10.1109/wmcs70298.2026.11591450

21. Sun, Menghan, Di Lu, Baoqi Zhu, Weiming Ma, Kwan L. Yeung, and Ming Yu, "High-efficiency, low-phase-noise power oscillator based on feedback network synthesis technique," IEEE Transactions on Microwave Theory and Techniques, 1-12, 2026.
doi:10.1109/tmtt.2026.3713831        Google Scholar
