A Stable Multi-Band Bandpass Negative Group Delay Circuit with Ultra-Low Insertion Loss
By
Zhiyang Feng,

    Mr. Zhiyang Feng

    School of Information Science and Engineering

    Dalian Polytechnic University

    China

    Homepage

Aixia Yuan,

    Dr. Aixia Yuan

    School of Information Science and Engineering

    Dalian Polytechnic University

    China

    Homepage

Junzheng Liu,

    Dr. Junzheng Liu

    Dalian SeaSky Automation Co.

    China

    Homepage

Yuwei Meng,

    Dr. Yuwei Meng

    School of Information Science and Engineering

    Dalian Polytechnic University

    China

    Homepage

Hongjun Zhang

    Dr. Hongjun Zhang

    School of Information Science and Engineering

    Dalian Polytechnic University

    China

    Homepage

Progress In Electromagnetics Research C, Vol. 172, 371-378, 2026
doi:10.2528/PIERC26062305 | Google Scholar

Abstract

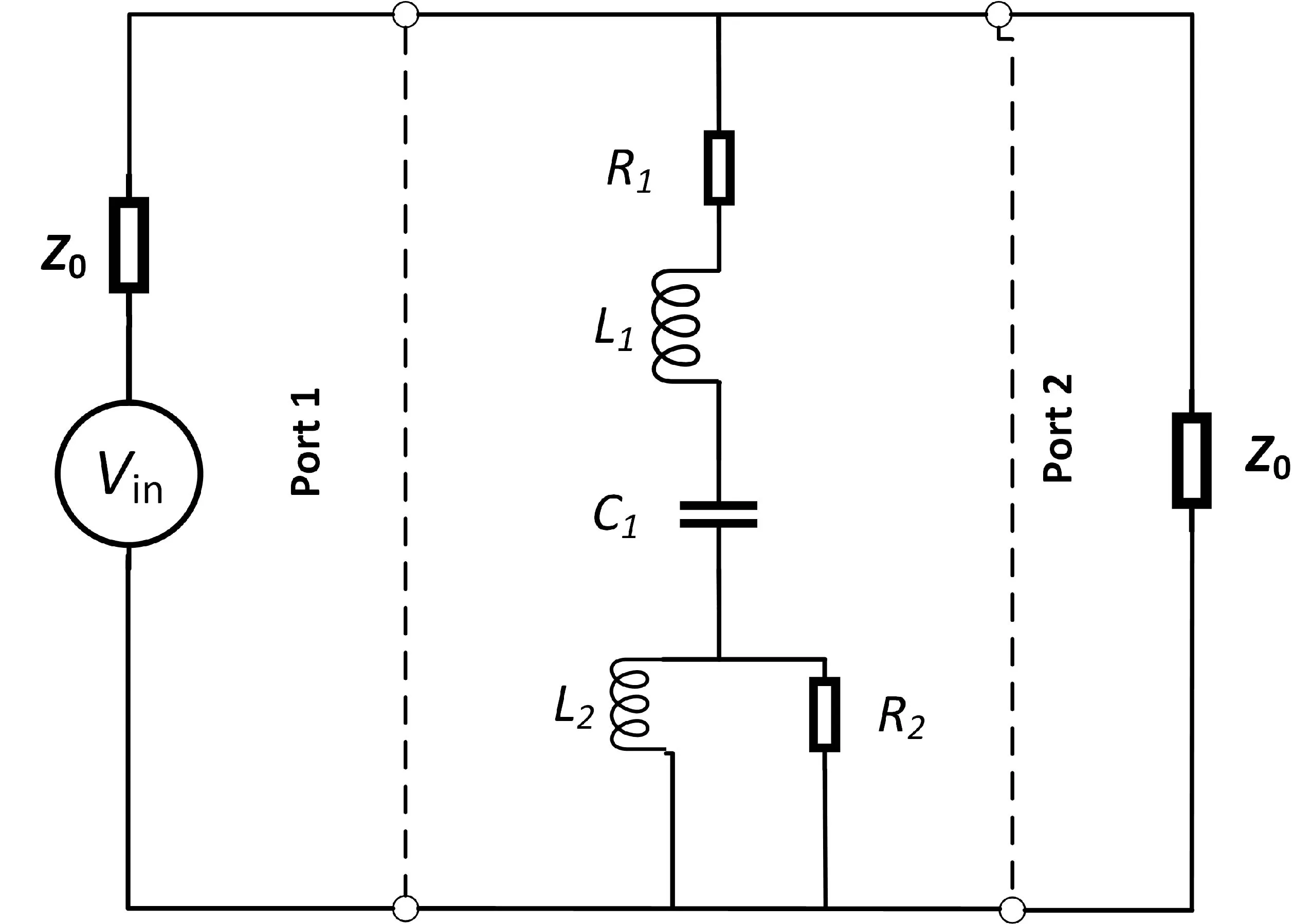

Negative group delay (NGD) circuits are important for signal delay compensation in RF and microwave systems. However, realizing multiple NGD passbands with low insertion loss and compact size remains challenging. This paper proposes a compact lumped-element tri-band bandpass NGD circuit for low-frequency RF applications. The proposed circuit consists of three parallel resonant branches. Theoretical modeling, parameter analysis, circuit simulation, and experimental measurements are carried out to investigate the NGD characteristics. The fabricated prototype exhibits NGD responses at 46 MHz, 90 MHz, and 146 MHz. The measured group delays are -3.35 ns, -2.13 ns, and -1.41 ns, respectively, while the corresponding insertion losses are 1.807 dB, 1.638 dB, and 1.495 dB. The fractional NGD bandwidths reach 36.96%, 18.88%, and 12.90%. The proposed lumped-element topology provides compact size, low insertion loss, and tri-band NGD performance, making it suitable for low-frequency RF delay compensation and multi-band signal-processing applications.
Download Full Article (42) View Full Article volume
Citation
Zhiyang Feng, Aixia Yuan, Junzheng Liu, Yuwei Meng, and Hongjun Zhang, "A Stable Multi-Band Bandpass Negative Group Delay Circuit with Ultra-Low Insertion Loss," Progress In Electromagnetics Research C, Vol. 172, 371-378, 2026.
doi:10.2528/PIERC26062305
References

1. Lucyszyn, S., I. D. Robertson, and A. H. Aghvami, "Negative group delay synthesiser," Electronics Letters, Vol. 29, No. 9, 798-800, 1993.
doi:10.1049/el:19930533        Google Scholar

2. Broomfield, C. D. and J. K. A. Everard, "Broadband negative group delay networks for compensation of microwave oscillators and filters," Electronics Letters, Vol. 36, No. 23, 1931-1933, 2000.
doi:10.1049/el:20001377        Google Scholar

3. Wan, Fayu, Taocheng Gu, Blaise Ravelo, Binhong Li, Jing Cheng, Qingyun Yuan, and Junxiang Ge, "Negative group delay theory of a four-port RC-network feedback operational amplifier," IEEE Access, Vol. 7, 75708-75720, 2019.
doi:10.1109/access.2019.2922422        Google Scholar

4. Wan, Fayu, Xiang Miao, Blaise Ravelo, Qingyun Yuan, Jing Cheng, Qizheng Ji, and Junxiang Ge, "Design of multi-scale negative group delay circuit for sensors signal time-delay cancellation," IEEE Sensors Journal, Vol. 19, No. 19, 8951-8962, 2019.
doi:10.1109/jsen.2019.2921834        Google Scholar

5. Meng, Yuwei, Zhongbao Wang, Shaojun Fang, Te Shao, Hongmei Liu, and Zhining Chen, "Dual-band negative group delay microwave circuit with low signal attenuation and arbitrary frequency ratio," IEEE Access, Vol. 8, 49908-49919, 2020.
doi:10.1109/access.2020.2978545        Google Scholar

6. Zhou, Xiang, Taochen Gu, Lili Wu, Fayu Wan, Binhong Li, Nour Mohammad Murad, Sébastien Lalléchère, and Blaise Ravelo, "S-matrix and bandpass negative group delay innovative theory of Ti-geometrical shape microstrip structure," IEEE Access, Vol. 8, 160363-160373, 2020.
doi:10.1109/access.2020.3020270        Google Scholar

7. Ravelo, Blaise, Fayu Wan, Jamel Nebhen, Wenceslas Rahajandraibe, and Sébastien Lalléchère, "Resonance effect reduction with bandpass negative group delay fully passive function," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 68, No. 7, 2364-2368, 2021.
doi:10.1109/tcsii.2021.3059813        Google Scholar

8. Vauché, Rémy, Rym Assila Belhadj Mefteh, Fayrouz Haddad, Jamel Nebhen, Wenceslas Rahajandraibe, Fayu Wan, Sébastien LALLéchère, and Blaise Ravelo, "Experimental time-domain study for bandpass negative group delay analysis with lill-shape microstrip circuit," IEEE Access, Vol. 9, 24155-24167, 2021.
doi:10.1109/access.2021.3056221        Google Scholar

9. Meng, Yuwei, Zhongbao Wang, Shao-Jun Fang, and Hongmei Liu, "A tri-band negative group delay circuit for multiband wireless applications," Progress In Electromagnetics Research C, Vol. 108, 159-169, 2021.
doi:10.2528/pierc20112201        Google Scholar

10. Yuan, Aixia, Shaojun Fang, Zhongbao Wang, and Hongmei Liu, "A novel multifunctional negative group delay circuit for realizing band-pass, high-pass and low-pass," Electronics, Vol. 10, No. 14, 1742, 2021.
doi:10.3390/electronics10141742        Google Scholar

11. Ji, Qizheng, Taochen Gu, Zhiliang Gao, Ming Yang, Yafei Yuan, Hongyu Du, Fayu Wan, Nour Mohammad Murad, Glauco Fontgalland, Hugerles S. Silva, and Blaise Ravelo, "CSRR DGS-based bandpass negative group delay circuit design," IEEE Access, Vol. 11, 20309-20318, 2023.
doi:10.1109/access.2023.3249968        Google Scholar

12. Meng, Yuwei, Peng Li, Aixia Yuan, and Zhenping Lan, "Compact broadband negative group delay circuit with flatness and bandwidth enhancement," Electronics, Vol. 13, No. 15, 3056, 2024.
doi:10.3390/electronics13153056        Google Scholar

13. Nako, Julia, Costas Psychalinos, Ahmed S. Elwakil, and Brent J. Maundy, "A note on the bandwidth of negative group delay filters," International Journal of Circuit Theory and Applications, Vol. 53, No. 1, 477-484, 2025.
doi:10.1002/cta.4132        Google Scholar

14. Gurgel, Nathan B., Glauco Fontgalland, Idalmir S. Queiroz Jr., Samanta M. Holanda, Benoit Agnus, Jerome Rossignol, and Blaise Ravelo, "Compact quadband NGD microstrip circuit for 2-6 GHz ISM bands," Progress In Electromagnetics Research M, Vol. 134, 1-12, 2025.
doi:10.2528/pierm25032801        Google Scholar

15. Chen, Ziyou, YeXi Song, Tiedi Zhang, Bo Yan, and Chao Fan, "Design of a novel ultra-low-frequency inductorless negative group delay chip," 2024 International Conference on Microwave and Millimeter Wave Technology (ICMMT), 1-3, Bejing, China, 2024.
doi:10.1109/ICMMT61774.2024.10672226

16. Yuan, Aixia, Xinqi Guo, Yuwei Meng, Junzheng Liu, and Niannan Chang, "Design of multi-band circuit with negative group delay and lower insertion loss characteristics," AEU --- International Journal of Electronics and Communications, Vol. 189, 155596, 2025.
doi:10.1016/j.aeue.2024.155596        Google Scholar

17. Chang, Niannan, Aixia Yuan, Ying Wang, and Junzheng Liu, "Multi-band pass negative group delay circuit with low insertion loss," International Journal of Circuit Theory and Applications, Vol. 53, No. 3, 1292-1301, 2025.
doi:10.1002/cta.4177        Google Scholar

18. Sambatra, E. J. R., Y. C. Mombo Boussougou, Lucius Ramifidisoa, J.-P. Kouadio, S. Ngoho, A. Jaomiary, and N. M. Murad, "Band Pass Negative Group Delay demonstration on a VHF RLC parallel passive lumped circuit," Advanced Electromagnetics, Vol. 11, No. 1, 9-21, 2022.
doi:10.7716/aem.v11i1.1858        Google Scholar
