Abstract

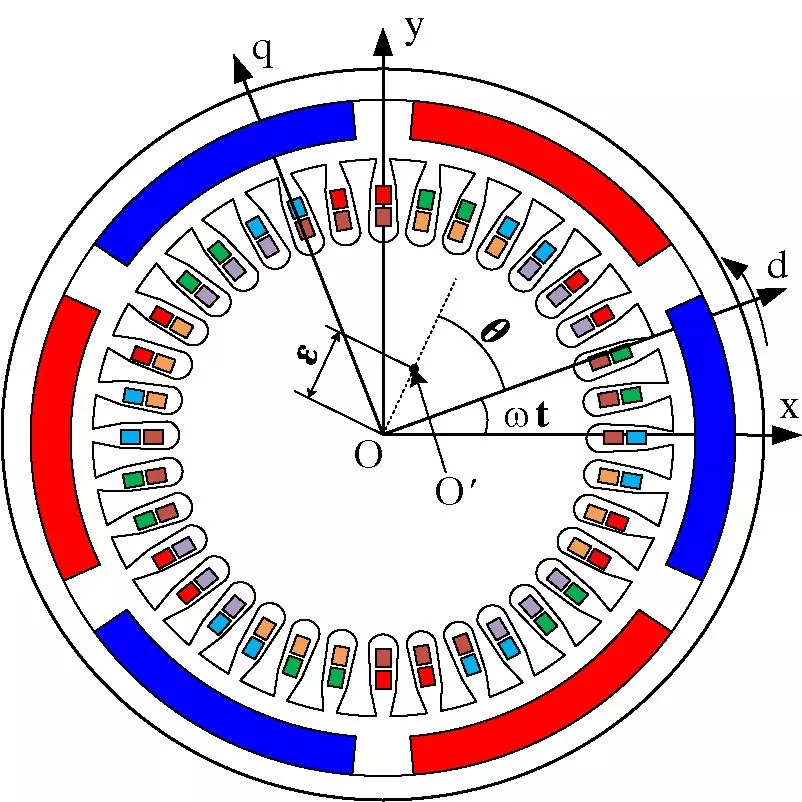

Rotor mass eccentricity in an outer-rotor coreless bearingless permanent magnet synchronous motor (ORC-BPMSM) causes synchronous unbalance vibration, which degrades suspension stability and limits high-speed operation. To suppress this vibration, an optimized secondary-path estimation variable-step-size filtered-x least mean square (OSPE-VSS-FxLMS) feedforward compensation method is proposed. First, the rotor unbalance vibration mechanism is derived from the suspension force model. Then, a hyperbolic tangent-exponential (tanh-exp) function is introduced to adaptively regulate the FxLMS step size, improving the trade-off between convergence speed and steady-state error. Meanwhile, a normalized least mean square (NLMS)-based online secondary-path estimation strategy is developed to reduce gradient deviation caused by secondary-path mismatch. Simulations and experiments are conducted under constant-speed and acceleration conditions. Compared with the uncompensated condition at 3000 r/min, the displacement vibration amplitudes in the x- and y-direction are both reduced to 11 μm, corresponding to a reduction of about 69.4%. The effectiveness of the proposed unbalance vibration compensation method is confirmed by both simulated and experimental results.

1. Ooshima, M., S. Kitazawa, A. Chiba, T. Fukao, and D. G. Dorrell, "Design and analyses of a coreless-stator-type bearingless motor/generator for clean energy generation and storage systems," IEEE Transactions on Magnetics, Vol. 42, No. 10, 3461-3463, Oct. 2006.
doi:10.1109/tmag.2006.879071 Google Scholar

2. Sun, Xiaodong, Long Chen, and Zebin Yang, "Overview of bearingless permanent-magnet synchronous motors," IEEE Transactions on Industrial Electronics, Vol. 60, No. 12, 5528-5538, Dec. 2013.
doi:10.1109/tie.2012.2232253 Google Scholar

3. Zhang, Tao, Xinfeng Liu, Lihong Mo, Xiaoting Ye, Wei Ni, Weihong Ding, Juang Huang, and Xue Wang, "Modeling and analysis of hybrid permanent magnet type bearingless motor," IEEE Transactions on Magnetics, Vol. 54, No. 3, 1-4, Mar. 2018.
doi:10.1109/tmag.2017.2766661 Google Scholar

4. Wang, Yuchen, Kai Liu, Wei Hua, Chao Zhang, Zheng Wu, and Hengliang Zhang, "Analysis and detection of rotor eccentricity in permanent magnet synchronous machines based on linear Hall sensors," IEEE Transactions on Power Electronics, Vol. 37, No. 4, 4719-4729, Apr. 2022.
doi:10.1109/tpel.2021.3131576 Google Scholar

5. Han, Wenjing, Yuanwen Cai, Wenting Han, Zengyuan Yin, and Chunmiao Yu, "Review on active vibration control method of magnetically suspended system," IEEE Access, Vol. 11, 108117-108125, 2023.
doi:10.1109/access.2023.3317333 Google Scholar

6. Chen, Shyh-Leh, Shyu-Yu Lin, and Chow-Shing Toh, "Adaptive unbalance compensation for a three-pole active magnetic bearing system," IEEE Transactions on Industrial Electronics, Vol. 67, No. 3, 2097-2106, Mar. 2020.
doi:10.1109/tie.2019.2903747 Google Scholar

7. Mao, Bo and Huangqiu Zhu, "Unbalance vibration suppression control of PMa-BSynRM based on total least square adaptive filtering algorithm," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 11, No. 6, 5798-5808, Dec. 2023.
doi:10.1109/jestpe.2023.3326463 Google Scholar

8. Liu, Chao and Gang Liu, "Autobalancing control for MSCMG based on sliding-mode observer and adaptive compensation," IEEE Transactions on Industrial Electronics, Vol. 63, No. 7, 4346-4356, Jul. 2016.
doi:10.1109/tie.2016.2551681 Google Scholar

9. Fang, Yubin, Xiaojin Zhu, Zhiyuan Gao, Jiaming Hu, and Jian Wu, "New feedforward filtered-x least mean square algorithm with variable step size for active vibration control," Journal of Low Frequency Noise, Vibration and Active Control, Vol. 38, No. 1, 187-198, 2019.
doi:10.1177/1461348418812326 Google Scholar

10. Li, Weiguang, Zhichun Yang, Kui Li, and Wei Wang, "Hybrid feedback PID-FxLMS algorithm for active vibration control of cantilever beam with piezoelectric stack actuator," Journal of Sound and Vibration, Vol. 509, 116243, 2021.
doi:10.1016/j.jsv.2021.116243 Google Scholar

11. Han, Wenjing, Yuanwen Cai, Wenting Han, Yuan Ren, Weijie Wang, Chunmiao Yu, and Zengyuan Yin, "Harmonic vibration suppression of MSCSG based on normalized-variable-step-size LMS algorithm," IEEE Sensors Journal, Vol. 24, No. 6, 8585-8595, Mar. 2024.
doi:10.1109/jsen.2023.3314674 Google Scholar

12. Mao, Chuan and Changsheng Zhu, "Unbalance compensation for active magnetic bearing rotor system using a variable step size real-time iterative seeking algorithm," IEEE Transactions on Industrial Electronics, Vol. 65, No. 5, 4177-4186, May 2018.
doi:10.1109/tie.2017.2772144 Google Scholar

13. Jalal, Babur, Xiaopeng Yang, Xuchen Wu, Teng Long, and Tapan K. Sarkar, "Efficient direction-of-arrival estimation method based on variable-step-size LMS algorithm," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 8, 1576-1580, Aug. 2019.
doi:10.1109/lawp.2019.2923700 Google Scholar

14. Wu, Zhihan, Jiaqiang Yang, Liang Yan, and Anning Niu, "Regularized autocorrelated errors variable step size FxLMS algorithm-based active noise control," IEEE Transactions on Industrial Electronics, Vol. 73, No. 3, 4850-4861, Mar. 2026.
doi:10.1109/tie.2025.3621658 Google Scholar

15. Zhou, Yang, Haiquan Zhao, and Dongxu Liu, "Genetic algorithm-based adaptive active noise control without secondary path identification," IEEE Transactions on Instrumentation and Measurement, Vol. 72, 1-9, 2023.
doi:10.1109/tim.2023.3309366 Google Scholar

16. Zheng, Hongbo, Dequan Yang, Xiling Xie, and Zhiyi Zhang, "An adaptive algorithm for active vibration control of parameter-varying systems with a new online secondary path estimation method," IEEE Signal Processing Letters, Vol. 27, 705-709, 2020.
doi:10.1109/lsp.2020.2986139 Google Scholar

17. Hua, Yizhou and Huangqiu Zhu, "Rotor radial displacement sensorless control of bearingless permanent magnet synchronous motor based on MRAS and suspension force compensation," ISA Transactions, Vol. 103, 306-318, Aug. 2020.
doi:10.1016/j.isatra.2020.05.005 Google Scholar

18. Zhu, Huangqiu, Jianhao Zhu, Daihong Jiang, Bo Mao, and Yichen Liu, "Displacement selfsensing control of outer rotor coreless bearingless permanent magnet synchronous motor based on least square support vector machine optimized by IMFO," IEEE Transactions on Power Electronics, Vol. 40, No. 1, 716-726, Jan. 2025.
doi:10.1109/tpel.2024.3478250 Google Scholar

Mr. Zelong Zhao

Prof. Huangqiu Zhu

Dr. Yichen Liu
