2026-10-07
A Novel Method for Calculating the Ground Loss Resistance of a Very Low Frequency T-Type Antenna Array
By
Xiangchuan Liu,

    Dr. Xiangchuan Liu

    Wuhan Maritime Communication Research Institute

    China

    Homepage

Chengquan Li,

    Mr. Chengquan Li

    Wuhan Maritime Communication Research Institute

    China

    Homepage

Chao Liu

    Dr. Chao Liu

    Wuhan Maritime Communication Research Institute

    China

    Homepage

Progress In Electromagnetics Research C, Vol. 173, 411-416, 2026
doi:10.2528/PIERC26072004 | Google Scholar

Abstract

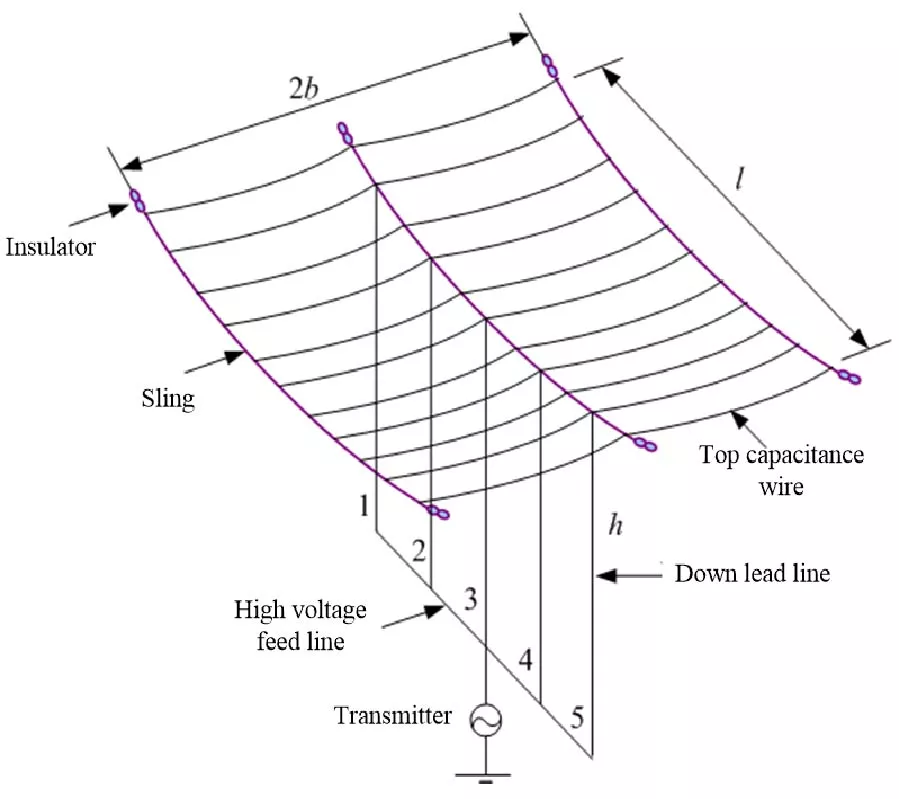

This paper proposes a novel algorithm to calculate the ground-loss resistance of a very low-frequency (VLF) T-type antenna array with a ground screen. The near-ground region of the T-type antenna is divided into three zones: ground screen zone, ground screen outer-end zone, and ground screen outer lateral zone. Magnetic-field loss resistance and electric-field loss resistance generated by horizontal top wires and vertical down leads are calculated in all three zones to obtain the antenna's total ground loss resistance. Example calculations show that the results obtained by the proposed method are closer to the measured values than those calculated by the classical Wait-Pope method. The variation law of ground-loss resistance generated in different zones of the antenna site with earth conductivity is analyzed, and valuable conclusions are drawn.
Download Full Article (34) View Full Article volume
Citation
Xiangchuan Liu, Chengquan Li, and Chao Liu, "A Novel Method for Calculating the Ground Loss Resistance of a Very Low Frequency T-Type Antenna Array," Progress In Electromagnetics Research C, Vol. 173, 411-416, 2026.
doi:10.2528/PIERC26072004
References

1. Hurdsman, D. E., P. M. Hansen, and J. W. Rockway, "LF and VLF antenna modeling," IEEE Antennas and Propagation Society International Symposium. Digest. Held in conjunction with: USNC/CNC/URSI North American Radio Sci. Meeting (Cat. No.03CH37450), Vol. 4, 811-814, Columbus, OH, USA, 2003.
doi:10.1109/aps.2003.1220396

2. King, Ronold W. P., "On the radiation efficiency and the electromagnetic field of a vertical electric dipole in the air above a dielectric or conducting half-space," Progress In Electromagnetics Research, Vol. 4, 1-43, 1991.
doi:10.2528/pier90042300        Google Scholar

3. Riddolls, R. J., "Near-field response in lossy media with exponential conductivity inhomogeneity," Journal of Electromagnetic Waves and Applications, Vol. 20, No. 11, 1551-1558, 2006.
doi:10.1163/156939306779274354        Google Scholar

4. Poljak, Dragan and Vicko Doric, "Wire antenna model for transient analysis of simple grounding systems, Part I: The vertical grounding electrode," Progress In Electromagnetics Research, Vol. 64, 149-166, 2006.
doi:10.2528/pier06062101        Google Scholar

5. Poljak, Dragan and Vicko Doric, "Wire antenna model for transient analysis of simple grounding systems, Part II: The horizontal grounding electrode," Progress In Electromagnetics Research, Vol. 64, 167-189, 2006.
doi:10.2528/pier06062102        Google Scholar

6. Zhang, D. K., D. C. Yang, and Z. L. He, "Design method for ultra-long wave transmitting antennas," Journal of Shipborne Radio, Vol. 2, 1-15, 1980.        Google Scholar

7. Watt, A. D., VLF Radio Engineering, 51-68, Pergamon Press, 1967.

8. Liu, C., Y. J. Liang, Q. Z. Liu, and Y. Fu, "Analysis and calculation of ground loss resistance for a VLF T-type antenna array with the ground screen," Journal of Xidian University, Vol. 35, No. 6, 1026-1030, 2008.
doi:10.3969/j.issn.1001-2400.2008.06.014        Google Scholar

9. Liu, Chao, Qi-Zhong Liu, Long Gen Zheng, and Wei Yu, "Numeric calculation of input impedance for a giant VLF T-type antenna array," Progress In Electromagnetics Research, Vol. 75, 1-10, 2007.
doi:10.2528/pier07051701        Google Scholar

10. Ren, Bo-Yu, Xian-Qiang Li, Yuan-Cheng Qin, Hao Du, Liang-Chang Fei, and Rui Huang, "Novel numerical analysis of electric fields in the near field of very-low-frequency antennas based on the charge simulation method," IET Microwaves, Antennas & Propagation, Vol. 18, No. 8, 618-628, 2024.
doi:10.1049/mia2.12488        Google Scholar

11. Xie, Hui, Xiangyu Xu, Huaning Wu, and Ning Wang, "Multiobjective particle swarm optimization to design the top load of a very low frequency thirteen-tower umbrella antenna," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 2023, 1792918, 2023.
doi:10.1155/2023/1792918        Google Scholar

12. Xu, Xiangyu, Hui Xie, Zhiqing Luo, and Lu Wan, "Analysis of the electrical performance of multituned VLF thirteen-tower umbrella antennas," International Journal of Antennas and Propagation, Vol. 2022, 8590468, 2022.
doi:10.1155/2022/8590468        Google Scholar

13. Quan, Ying, Hui Xie, Cheng Yang, Hang Yu, and Xinmiao Liu, "Effects of introducing confluence rings on ground loss resistance of VLF umbrella-type antenna," Electronics, Vol. 11, No. 20, 3419, October 2022.
doi:10.3390/electronics11203419        Google Scholar
