Abstract

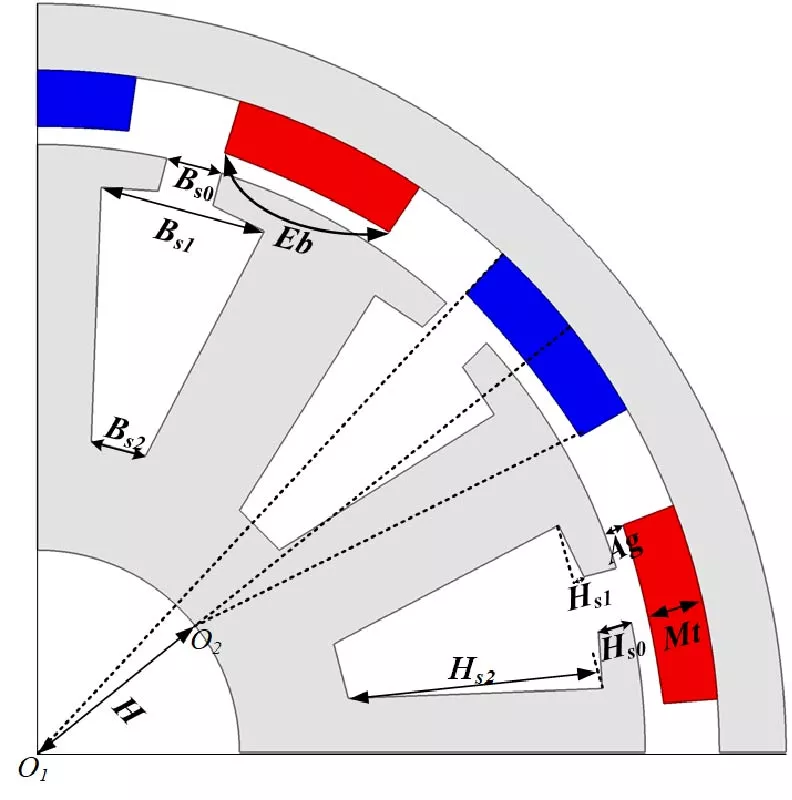

This paper proposes a surrogate model-based multi-objective optimization framework to improve the comprehensive electromagnetic performance of outer rotor permanent magnet brushless DC motors. Targeting key performance metrics including efficiency, torque ripple, cogging torque, core loss and total harmonic distortion (THD) of back-electromotive force (EMF), a parametric finite element model is established to identify key parameters and performance indicators. Dimensionality reduction is carried out through statistical correlation and cluster analysis. An Elliptical Basis Functions (EBF) neural network surrogate model is thereafter constructed to substitute the computationally expensive finite-element model. Different from conventional Response Surface Methodology (RSM) and Radial Basis Function (RBF) models, EBF adopts Mahalanobis distance to mitigate prediction deviation induced by parameter coupling and achieves superior fitting accuracy for strongly-nonlinear motor responses under limited sample size. The Pareto solution set is obtained through the Non-dominated Sorting Genetic Algorithm (NSGA-II). Then, the GRA-TOPSIS multi-criteria decision-making approach is employed to objectively select the global optimal solution from the Pareto solution set and avoid subjective solution selection. Finite element analysis results confirm that the motor performance has been significantly improved: torque ripple, peak cogging torque, core loss, and eddy-current loss are reduced by 18.8%, 18.7%, 6.97%, and 7.12%, respectively, and the effectiveness of constructing an efficient optimization framework has been verified.

1. Konijeti, Krishna, Satya Naga Mali, and M. L. Bharathi, "Extraction of maximum power from solar with BLDC motor driven electric vehicles based HHO algorithm," Advances in Engineering Software, Vol. 170, 103137, August 2022.
doi:10.1016/j.advengsoft.2022.103137 Google Scholar

2. Apribowo, Chico Hermanu Brillianto, Musyaffa Ahmad, and Hari Maghfiroh, "Fuzzy logic controller and its application in brushless DC motor (BLDC) in electric vehicle --- A review," Journal of Electrical, Electronic, Information, and Communication Technology, Vol. 3, No. 1, 35, April 2021.
doi:10.20961/jeeict.3.1.50651 Google Scholar

3. Du, Guanghui, Chengshuai Hu, Qixun Zhou, Wentao Gao, and Qizheng Zhang, "Multi-objective optimization for outer rotor low-speed permanent magnet motor," Applied Sciences, Vol. 12, No. 16, 8113, August 2022.
doi:10.3390/app12168113 Google Scholar

4. Sato, Hayaho and Hajime Igarashi, "Automatic design of PM motor using Monte Carlo tree search in conjunction with topology optimization," IEEE Transactions on Magnetics, Vol. 58, No. 9, 1-4, September 2022.
doi:10.1109/tmag.2022.3164926 Google Scholar

5. Jo, Seong-Tae, Hyo-Seob Shin, Young-Geun Lee, Ji-Hun Lee, and Jang-Young Choi, "Optimal design of a BLDC motor considering three-dimensional structures using the response surface methodology," Energies, Vol. 15, No. 2, 461, January 2022.
doi:10.3390/en15020461 Google Scholar

6. Cheng, Mengyu, Xing Zhao, Mahmoud Dhimish, Wangde Qiu, and Shuangxia Niu, "A review of data-driven surrogate models for design optimization of electric motors," IEEE Transactions on Transportation Electrification, Vol. 10, No. 4, 8413-8431, December 2024.
doi:10.1109/tte.2024.3366417 Google Scholar

7. Park, Young-Un and Dae-Kyong Kim, "Analytical prediction of the cogging torque in external-rotor single-phase BLDC motors with tapered air-gap," International Journal of Applied Electromagnetics and Mechanics, Vol. 59, No. 2, 721-728, February 2019.
doi:10.3233/jae-171089 Google Scholar

8. Cao, Y., L. Feng, R. Mao, L. Yu, H. Jia, and Z. Jia, "Multi-objective stratified optimization design of axial-flux permanent magnet memory motor," Proceedings of the CSEE, Vol. 41, No. 6, 1983-1991, 2021.
doi:10.13334/j.0258-8013.pcsee.201435 Google Scholar

9. Jing, Yi-Yang, Biao He, Xiang-Yu Yang, and Zhi-Min Ma, "Multi objective optimization of outer rotor wheel-hub permanent magnet synchronous motor based on exact analytical method," Journal of Electrical Engineering & Technology, Vol. 19, No. 1, 507-519, June 2023.
doi:10.1007/s42835-023-01565-1 Google Scholar

10. Ajamloo, Akbar Mohammadi, Aghil Ghaheri, and Ebrahim Afjei, "Multi-objective optimization of an outer rotor BLDC motor based on taguchi method for propulsion applications," 2019 10th International Power Electronics, Drive Systems and Technologies Conference (PEDSTC), 34-39, Shiraz, Iran, February 2019.
doi:10.1109/pedstc.2019.8697586

11. Geng, Weiwei, Jing Wang, Lei Li, and Jian Guo, "Design and multiobjective optimization of a new flux-concentrating rotor combining Halbach PM array and spoke-type IPM machine," IEEE/ASME Transactions on Mechatronics, Vol. 28, No. 1, 257-266, February 2023.
doi:10.1109/tmech.2022.3196115 Google Scholar

12. Wang, Xu, Ying Fan, Xingchi Lu, Qiushuo Chen, and Christopher H. T. Lee, "Multiobjective optimization of a dual stator brushless hybrid excitation motor based on response surface model and NSGA 2," IEEE Transactions on Industry Applications, Vol. 58, No. 5, 6105-6114, September 2022.
doi:10.1109/tia.2022.3184669 Google Scholar

13. Ye, Xuerong, Hao Chen, Huimin Liang, Xinjun Chen, and Jiaxin You, "Multi-objective optimization design for electromagnetic devices with permanent magnet based on approximation model and distributed cooperative particle swarm optimization algorithm," IEEE Transactions on Magnetics, Vol. 54, No. 3, 1-5, March 2018.
doi:10.1109/tmag.2017.2758818 Google Scholar

14. Gao, Yuan, Tao Yang, Serhiy Bozhko, Pat Wheeler, Tomislav Dragicevic, and Chris Gerada, "Neural network aided PMSM multi-objective design and optimization for more-electric aircraft applications," Chinese Journal of Aeronautics, Vol. 35, No. 10, 233-246, October 2022.
doi:10.1016/j.cja.2021.08.006 Google Scholar

15. Ai, Qiang, Hongqian Wei, and Youtong Zhang, "Optimal design for flux-intensifying permanent magnet machine based on neural network and multi-objective optimization," 2020 4th CAA International Conference on Vehicular Control and Intelligence (CVCI), Vol. 6, 596-601, Hangzhou, China, December 2020.
doi:10.1109/cvci51460.2020.9338647

16. Hao, Jinshun, Shuangfu Suo, Yiyong Yang, Yang Wang, Wenjie Wang, and Xiaolong Chen, "Optimization of torque ripples in an interior permanent magnet synchronous motor based on the orthogonal experimental method and MIGA and RBF neural networks," IEEE Access, Vol. 8, 27202-27209, February 2020.
doi:10.1109/access.2020.2971473 Google Scholar

17. Rahmani, Omid, Sayed Alireza Sadrossadat, Mostafa Noohi, Ali Mirvakili, and Maitham Shams, "Radial basis function-based Pareto optimization of an outer rotor brushless DC motor," International Journal of Numerical Modelling: Electronic Networks, Devices and Fields, Vol. 37, No. 2, 1-15, January 2024.
doi:10.1002/jnm.3214 Google Scholar

18. Zhao, Peirui, Xiaohong Wang, Hongliang Yu, and Shizeng Lu, "Method for identifying current operating conditions of main motor of cement rotary kiln based on spearman rank correlation coefficient," 2019 34rd Youth Academic Annual Conference of Chinese Association of Automation (YAC), 537-541, Jinzhou, China, June 2019.
doi:10.1109/yac.2019.8787648

19. Murtagh, Fionn and Pedro Contreras, "Algorithms for hierarchical clustering: An overview," WIREs Data Mining and Knowledge Discovery, Vol. 2, No. 1, 86-97, December 2011.
doi:10.1002/widm.53 Google Scholar

20. Garud, Sushant S., Iftekhar A. Karimi, and Markus Kraft, "Design of computer experiments: A review," Computers & Chemical Engineering, Vol. 106, 71-95, November 2017.
doi:10.1016/j.compchemeng.2017.05.010 Google Scholar

Dr. Xiaoting Ye

Dr. Xianhai Yu

Dr. Zirui Chen

Dr. Tao Zhang
