Temperature Distribution and Current-Carrying Capacity of XLPE High-Voltage Cables under Different Laying Methods
By
Gaohui Yu,

    Dr. Gaohui Yu

    Cable Engineering College

    Henan Institute of Technology

    China

    Homepage

Liujie Wan,

    Dr. Liujie Wan

    Henan Institute of Technology

    China

    Homepage

Guozhu Wang,

    Prof. Guozhu Wang

    School of Cable Engineering

    Henan Institute of Technology

    China

    Homepage

Zhiqiang Bai

    Dr. Zhiqiang Bai

    Cable Engineering College

    Henan Institute of Technology

    China

    Homepage

Progress In Electromagnetics Research M, Vol. 140, 74-84, 2026
doi:10.2528/PIERM26081306 | Google Scholar

Abstract

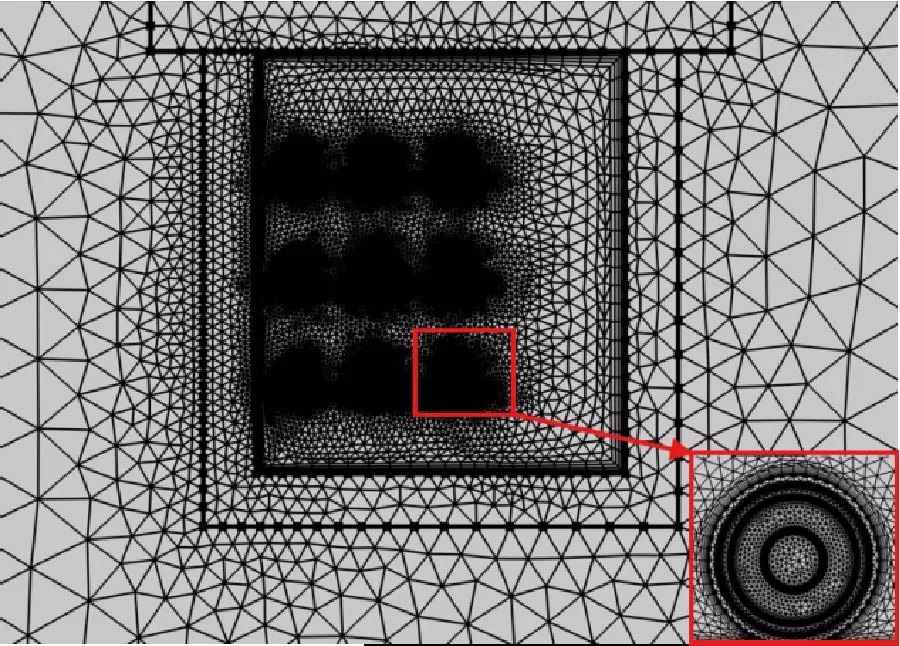

Current research on cable current-carrying capacity mostly focuses on a single laying form and lacks a systematic comparison of temperature-load characteristics under three mainstream laying conditions: direct burial, pipe duct laying, and cable trench laying. This paper takes the YJLW03-64/110\,kV single-core high-voltage cable as the research object, develops a two-dimensional electromagnetic-thermal-fluid multi-physics field-coupling model, and determines the carrying capacity by constraining the conductor's maximum allowable temperature to 90 ℃. The finite element software COMSOL is used to complete the simulation analysis of multiple conditions under the three laying methods. For direct burial laying, the improvement effect of high thermal conductivity sandy soil backfill thickness of 100 mm and 200 mm on heat dissipation is explored; for pipe duct laying, the temperature distribution and carrying capacity differences between air gap and cement-based thermally conductive grout filling are compared; for cable trench laying, the convective heat transfer effect of solid supports and different support opening rates is analyzed. The results show that the improvement measures under the three laying methods can respectively increase the cable current-carrying capacity by varying degrees. The results can provide support and technical reference for selecting high-voltage cable laying methods, as well as expanding and renovating carrying capacity.
Download Full Article (21) View Full Article volume
Citation
Gaohui Yu, Liujie Wan, Guozhu Wang, and Zhiqiang Bai, "Temperature Distribution and Current-Carrying Capacity of XLPE High-Voltage Cables under Different Laying Methods," Progress In Electromagnetics Research M, Vol. 140, 74-84, 2026.
doi:10.2528/PIERM26081306
References

1. Sun, J., S. Chen, J. Sha, et al. "Evaluation and prediction of thermal aging life of XLPE for cables," Electric Machines and Control, Vol. 26, No. 6, 31-39, 2022.        Google Scholar

2. Duan, X., Y. Liu, S. Liu, et al. "Review on ablative mechanism of the buffer layer in high voltage XLPE cable and associated detection methods," Transactions of China Electrotechnical Society, Vol. 40, No. 5, 1540-1558, 2025.        Google Scholar

3. Hou, S., M. Fu, L. Jia, et al. "Long-term aging performances and life evaluation of 220 kV XLPE insulation materials," High Voltage Engineering, Vol. 49, No. 12, 4900-4910, 2023.        Google Scholar

4. Gao, F., L. Huang, L. Zhang, et al. "Electromagnetic influence analysis of high voltage long distance segment cable laying in public transportation tunnel," High Voltage Apparatus, Vol. 57, No. 12, 156-161, 2021.        Google Scholar

5. Yu, S., L. Li, Y. Li, et al. "Modified ampacity calculation for XLPE HVDC submarine cables under thermal aging conditions based on IEC 60287 standard," Guangdong Electric Power, Vol. 38, No. 11, 95-102, 2025.        Google Scholar

6. Li, W., G. Liu, Z. Wang, et al. "Steady-state parallel thermal circuit model for three-core XLPE cable and its experimental verification," Southern Power System Technology, Vol. 9, No. 3, 57-62, 2015.        Google Scholar

7. Ma, A. and Y. Zhang, "Thermal circuit model of ultra-high voltage cables considering mutual heat effect," High Voltage Engineering, Vol. 48, No. 3, 1068-1076, 2022.
doi:10.13336/j.1003-6520.hve.20210136        Google Scholar

8. Huang, S., Y. Wu, and L. Li, "Calculation of temperature field and current-carrying capacity of single-core power cables under direct burial laying," Engineering Journal of Wuhan University, Vol. 47, No. 4, 502-505, 2014.        Google Scholar

9. Jia, L., H. Li, X. Li, et al. "Simulation study on influence of different factors on temperature of high-power liquid cooled charging cables under coupling of multiple physical fields," Guangdong Electric Power, Vol. 37, No. 6, 111-119, 2024.        Google Scholar

10. Xu, C., P. Wang, F. Yang, et al. "Analysis of multi-physics field and temperature gradient field of crimping defects on intermediate joints on the three-core cable," High Voltage Engineering, Vol. 50, No. 4, 1769-1780, 2024.        Google Scholar

11. Zhang, Ruisong, Shihao Zhang, Maozhou Wang, Jia Peng, Zhengshi Chang, Junbo Deng, Shaohua Wang, Yong Yang, and Yu Ma, "Ampacity improvement of high voltage submarine cables installed in J-tubes," Electric Power Systems Research, Vol. 244, 111562, July 2025.
doi:10.1016/j.epsr.2025.111562        Google Scholar

12. Shi, D., G. Li, Z. Yu, et al. "Analysis of cable current-carrying capacity in tunnel installation based on electromagnetic-heat-fluid coupling," Insul. Mater., Vol. 55, No. 12, 111-118, 2022.        Google Scholar

13. Nie, C., S. Guo, H. Niu, et al. "Simulation of multi-physical field coupling circuit of high voltage cable cluster laying in tunnel and analysis of typical operating states," Guangdong Electric Power, Vol. 34, No. 2, 68-76, 2021.        Google Scholar

14. Czapp, Stanislaw and Filip Ratkowski, "Optimization of thermal backfill configurations for desired high-voltage power cables ampacity," Energies, Vol. 14, No. 5, 1452, March 2021.
doi:10.3390/en14051452        Google Scholar

15. Zhou, X., T. Tian, J. Bai, et al. "Comparative study on applicability of tunnel cable brackets made of different materials," High Voltage Apparatus, Vol. 61, No. 9, 146-154, 2025.        Google Scholar

16. Feng, P., Research on the electrical heating coupling characteristics and fault analysis of 35 kV power cables, M.S. thesis, Zhengzhou Univ., Zhengzhou, China, 2021.

17. Li, H., Y. Zhang, and R. Zhang, "Simulation of temperature field and current carrying capacity of direct buried XLPE cables under different laying conditions," Eletric Power Engineering Technology, Vol. 42, No. 1, 169-177, 2023.        Google Scholar

18. Zhou, Y., X. Fu, W. Lyu, et al. "Simulation analysis of temperature and current carrying capacity of submarine cables in the dual loop heterogeneous landing section considering circulation," High Voltage Engineering, Vol. 51, No. 6, 2748-2758, 2025.        Google Scholar

19. Liu, X., Y. Liu, Y. Han, et al. "Electromagnetic-thermal coupled simulation and current-carrying capacity evaluation of medium-voltage cables laid in duct," Wire & Cable, Vol. 69, No. 1, 77-87, 2026.        Google Scholar

20. Zhang, Q., D. Ju, J. Huang, et al. "Study on simulation method for temperature distribution of high-voltage cables laid in tunnels based on electric-thermal-fluid fields coupling," High Voltage Apparatus, Vol. 62, No. 4, 183-190, 2026.        Google Scholar

21. Nie, Yongjie, Daoyuan Chen, Shuai Zheng, Xiaowei Xu, Xilian Wang, and Zhensheng Wu, "Simulation and calculation of temperature field and current-carrying capacity of power cables under different laying methods," Energies, Vol. 17, No. 18, 4611, September 2024.
doi:10.3390/en17184611        Google Scholar

22. Wang, D., Y. Quan, H. Zhang, et al. "Analysis of rated current-carrying capacity enhancement strategies for submarine cables based on thermoelectric coupling modeling," Wire & Cable, Vol. 68, No. 6, 19-28, 2025.        Google Scholar

23. Kuehn, T. H. and R. J. Goldstein, "An experimental and theoretical study of natural convection in the annulus between horizontal concentric cylinders," Journal of Fluid Mechanics, Vol. 74, No. 4, 695-719, April 1976.
doi:10.1017/s0022112076002012        Google Scholar

24. Markatos, N. C. and K. A. Pericleous, "Laminar and turbulent natural convection in an enclosed cavity," International Journal of Heat and Mass Transfer, Vol. 27, No. 5, 755-772, May 1984.
doi:10.1016/0017-9310(84)90145-5        Google Scholar

25. Ministry of Housing and Urban-Rural Development of the People's Republic of China, "Code for design of cables of electric engineering: GB 50217-2018," China Planning Press, 2018.

26. Zhou, T., "Experimental study on heat transfer performance of buried pipe with twisted tape insand/graphite backfill," M.S. thesis, Beijing Jiaotong University, Beijing, China, 2018.

27. Ministry of Housing and Urban-Rural Development of the People's Republic of China, Thermal Design Code for Civil Building: GB 50176-2016, China Architecture & Building Press, 2016.
