Abstract

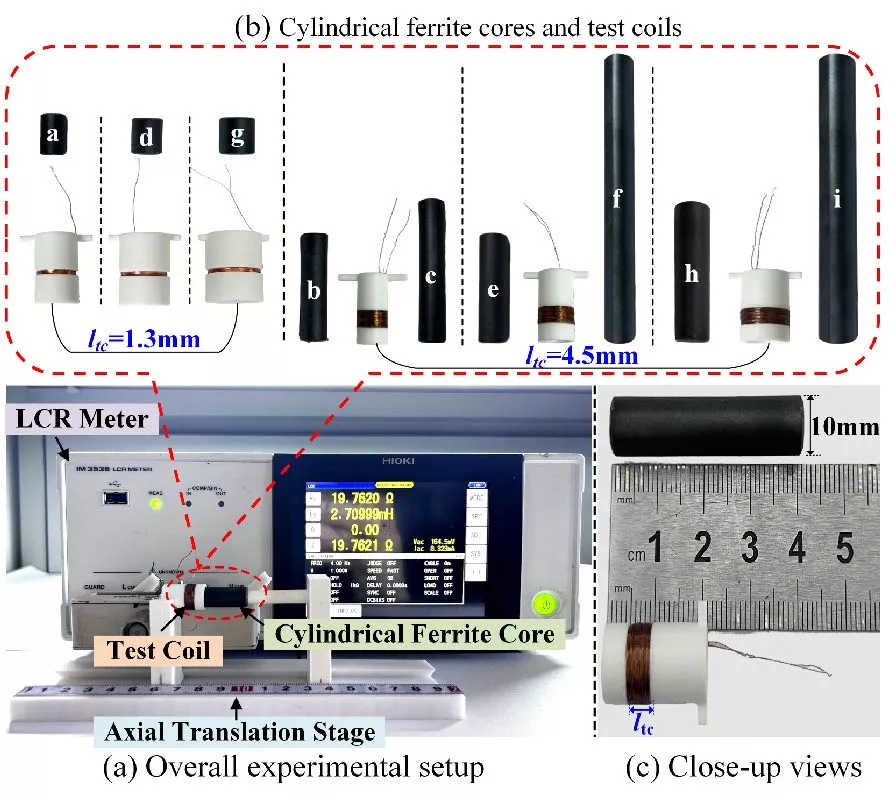

Cylindrical ferrite cores are widely used in wireless implantable medical devices (WIMDs) to enhance magnetic coupling performance. Conventional uniform-permeability models feature simple formulations and low computational costs, making them suitable for rapid engineering analysis. However, they cannot describe the axially varying magnetic response inside finite-length ferrite cores. Due to the demagnetizing effect caused by finite core dimensions, the effective permeability shows a non-uniform axial distribution. To address this issue, an analytical model for the axial effective permeability distribution of finite-length cylindrical cores is established based on demagnetizing field theory and the magnetic charge model. Furthermore, a unified-parameter correction model and a piecewise correction model are developed based on finite element simulation results to improve the prediction accuracy. Over the aspect-ratio range of 1-10, the piecewise correction model reduces the maximum axial relative error from 15.64% to 2.67% compared with the unified-parameter correction model. An effective permeability measurement platform is further established, where the average effective permeability at different axial positions is obtained by varying the relative axial position between the test coil and the magnetic core, enabling experimental validation of the correction models. The results show that the axial effective permeability of cylindrical cores gradually decreases from the center toward both ends and exhibits a symmetric distribution with respect to the center. Experimental results are generally consistent with predictions of the piecewise correction model in terms of the axial distribution characteristics, while noticeable deviations remain for cores with small aspect ratios. The proposed model enables direct calculation of the axial effective permeability distribution of cylindrical ferrite cores from their geometric parameters, providing a theoretical basis for the analysis and optimization of WIMD receivers and other electromagnetic devices employing cylindrical ferrite cores.

1. Hong, Changeui, Dongwuk Jung, Taeyeon Lee, and Jongho Lee, "Optical wireless data transfer through skin for implantable biomedical electronics," npj Flexible Electronics, Vol. 9, No. 1, 126, November 2025.
doi:10.1038/s41528-025-00500-w Google Scholar

2. Wang, Ziheng, Ankit Shah, Hyowon Lee, and Chi Hwan Lee, "Microfluidic technologies for wearable and implantable biomedical devices," Lab on a Chip, Vol. 25, No. 18, 4542-4576, 2025.
doi:10.1039/d5lc00499c Google Scholar

3. Cao, Xianbo, Hiroyasu Sato, Kai-Da Xu, Wen Jiang, Shuxi Gong, and Qiang Chen, "A systematic method for efficient wireless powering to implantable biomedical devices," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 3, 2745-2757, March 2023.
doi:10.1109/tap.2023.3240005 Google Scholar

4. Farooq, Muhammad, Bilal Amin, Adnan Elahi, William Wijns, and Atif Shahzad, "Planar elliptical inductor design for wireless implantable medical devices," Bioengineering, Vol. 10, No. 2, 151, January 2023.
doi:10.3390/bioengineering10020151 Google Scholar

5. Yakovlev, Anatoly, Sanghoek Kim, and Ada Poon, "Implantable biomedical devices: Wireless powering and communication," IEEE Communications Magazine, Vol. 50, No. 4, 152-159, April 2012.
doi:10.1109/mcom.2012.6178849 Google Scholar

6. Kang, Sungwoo, Juhwan Kim, Jinwoo Kim, Eunji Lee, Hyeongyu Park, and Jin Ho Chang, "Sandwich-structured piezoelectric ultrasound harvester for wireless power charging of implantable biomedical electronics," Biosensors and Bioelectronics, Vol. 288, 117789, November 2025.
doi:10.1016/j.bios.2025.117789 Google Scholar

7. Strauch, Ludvik, Mojca Pavlin, and Vladimir Boštjan Bregar, "Optimization, design, and modeling of ferrite core geometry for inductive wireless power transfer," International Journal of Applied Electromagnetics and Mechanics, Vol. 49, No. 1, 145-155, February 2015.
doi:10.3233/jae-150029 Google Scholar

8. Cheng, Yuhua, Guoxiong Chen, Dongdong Xuan, Gaorong Qian, Maysam Ghovanloo, and Gaofeng Wang, "Analytical modeling of small, solenoidal, and implantable coils with ferrite tube core," IEEE Microwave and Wireless Components Letters, Vol. 29, No. 3, 237-239, March 2019.
doi:10.1109/lmwc.2019.2891620 Google Scholar

9. Khan, M. W. A., Toni Bjorninen, Lauri Sydanheimo, and Leena Ukkonen, "Characterization of two-turns external loop antenna with magnetic core for efficient wireless powering of cortical implants," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 1410-1413, 2016.
doi:10.1109/lawp.2015.2511187 Google Scholar

10. Trompetter, Bill, Jérôme Leveneur, Max Goddard-Winchester, Ben Rumsey, James Turner, Graham Weir, John Kennedy, Shen Chong, and Nick Long, "Ferrite based soft magnetic composite development intended for inroad charging application," Journal of Magnetism and Magnetic Materials, Vol. 570, 170530, March 2023.
doi:10.1016/j.jmmm.2023.170530 Google Scholar

11. Gao, Jinyang, Guozheng Yan, Zhiwu Wang, Pingping Jiang, and Dasheng Liu, "A capsule robot powered by wireless power transmission: Design of its receiving coil," Sensors and Actuators A: Physical, Vol. 234, 133-142, October 2015.
doi:10.1016/j.sna.2015.08.021 Google Scholar

12. Jaafari, Soukaina, Hamza El Hafdaoui, Khadija Ajabboune, Ahmed Khallaayoun, and Esmail Ahouzi, "Optimization of circular coils with ferrite boxes for enhanced efficiency in wireless power transfer for electric vehicles," Green Energy and Intelligent Transportation, Vol. 4, No. 2, 100195, April 2025.
doi:10.1016/j.geits.2024.100195 Google Scholar

13. Kim, Dongwook, Hongseok Kim, Anfeng Huang, Qiusen He, Hanyu Zhang, Seungyoung Ahn, Yuyu Zhu, and Jun Fan, "Analysis and introduction of effective permeability with additional air-gaps on wireless power transfer coils for electric vehicle based on SAE J2954 recommended practice," Energies, Vol. 12, No. 24, 4797, December 2019.
doi:10.3390/en12244797 Google Scholar

14. Sato, M. and Y. Ishii, "Simple and approximate expressions of demagnetizing factors of uniformly magnetized rectangular rod and cylinder," Journal of Applied Physics, Vol. 66, No. 2, 983-985, July 1989.
doi:10.1063/1.343481 Google Scholar

15. Chen, D.-X., J. A. Brug, and R. B. Goldfarb, "Demagnetizing factors for cylinders," IEEE Transactions on Magnetics, Vol. 27, No. 4, 3601-3619, July 1991.
doi:10.1109/20.102932 Google Scholar

16. Paterson, J. H., S. J. Cooke, and A. D. R. Phelps, "Finite-difference calculation of demagnetizing factors for shapes with cylindrical symmetry," Journal of Magnetism and Magnetic Materials, Vol. 177-181, 1472-1473, January 1998.
doi:10.1016/s0304-8853(97)00788-9 Google Scholar

17. Theilmann, Paul T. and Peter M. Asbeck, "An analytical model for inductively coupled implantable biomedical devices with ferrite rods," IEEE Transactions on Biomedical Circuits and Systems, Vol. 3, No. 1, 43-52, February 2009.
doi:10.1109/tbcas.2008.2004776 Google Scholar

18. Im, S. H. and Gwans Soo Park, "A research on the demagnetizing factors for magnetic hollow cylinders," 2018 21st International Conference on Electrical Machines and Systems (ICEMS), 2629-2632, Jeju, Korea (South), October 2018.
doi:10.23919/icems.2018.8548969

19. Zhuang, Haoyu, Wei Wang, Kai Zhao, Shuai Kuang, Zuoer Wang, and Guozheng Yan, "Efficient power receiving coil with novel ferrite core structure for capsule robot," IEEE Transactions on Biomedical Circuits and Systems, Vol. 16, No. 5, 939-946, October 2022.
doi:10.1109/tbcas.2022.3200524 Google Scholar

20. Lang, Franz and Stephen J. Blundell, "Fourier space derivation of the demagnetization tensor for uniformly magnetized objects of cylindrical symmetry," Journal of Magnetism and Magnetic Materials, Vol. 401, 1060-1067, March 2016.
doi:10.1016/j.jmmm.2015.10.133 Google Scholar

21. Andreev, A. K., "A method for calculating the mutual inductance of a coil system using a model of an axially magnetized cylinder," Technical Physics Letters, Vol. 46, No. 11, 1096-1099, November 2020.
doi:10.1134/s1063785020110024 Google Scholar

22. Wang, Meng, Jing Feng, Yanyan Shi, and Minghui Shen, "Demagnetization weakening and magnetic field concentration with ferrite core characterization for efficient wireless power transfer," IEEE Transactions on Industrial Electronics, Vol. 66, No. 3, 1842-1851, 2018.
doi:10.1109/tie.2018.2840485 Google Scholar

23. Nielsen, K. K. and R. Bjørk, "The magnetic field from a homogeneously magnetized cylindrical tile," Journal of Magnetism and Magnetic Materials, Vol. 507, 166799, August 2020.
doi:10.1016/j.jmmm.2020.166799 Google Scholar

24. Rojo, Alberto G., "Coulomb force between two dirac monopoles," American Journal of Physics, Vol. 94, No. 1, 65-67, January 2026.
doi:10.1119/5.0244845 Google Scholar

25. Kaverine, Evgueni, Sebastien Palud, Franck Colombel, and Mohamed Himdi, "Investigation on an effective magnetic permeability of the rod-shaped ferrites," Progress In Electromagnetics Research Letters, Vol. 65, 43-48, 2017.
doi:10.2528/pierl16110203 Google Scholar

26. Pugh, B. K., D. P. Kramer, and C. H. Chen, "Demagnetizing factors for various geometries precisely determined using 3-D electromagnetic field simulation," IEEE Transactions on Magnetics, Vol. 47, No. 10, 4100-4103, October 2011.
doi:10.1109/tmag.2011.2157994 Google Scholar

27. Tashiro, Kunihisa, Hiroyuki Wakiwaka, and Gen-Ya Hattori, "Estimation of effective permeability for dumbbell-shaped magnetic cores," IEEE Transactions on Magnetics, Vol. 51, No. 1, 1-4, January 2015.
doi:10.1109/tmag.2014.2359468 Google Scholar

28. Xu, Hang, Hiroharu Kamada, Shinichi Nomura, Hirotaka Chikaraishi, Hiroaki Tsutsui, and Takanori Isobe, "A simple calculation method for center magnetic flux density of a magnetic core electromagnet with a wide air gap," IEEE Transactions on Applied Superconductivity, Vol. 32, No. 6, 1-6, September 2022.
doi:10.1109/tasc.2022.3158350 Google Scholar

Dr. Xinyu Li

Dr. Kewei Zhu

Dr. Yitong Wu

Dr. Jinyang Gao
