2026-10-20
Multi-Band Negative Group Delay SSPP Circuits Using Backside H-Shaped Units
By
Qi Wang,

    Dr. Qi Wang

    Nanjing University of Information Science & Technology (NUIST)

    China

    Homepage

Fayu Wan,

    Professor Fayu Wan

    College of Electronics and Information Engineering

    Nanjing University of Information Science and Technology

    China

    Homepage

Nathan B. Gurgel,

    Mr. Nathan B. Gurgel

    Federal University of Campina Grande

    Brazil

    Homepage

Lagouge Tartibu,

    Dr. Lagouge Tartibu

    Department of Mechanical Engineering

    University of Johannesburg

    South Africa

    Homepage

Glauco Fontgalland,

    Dr. Glauco Fontgalland

    Brenton School of Engineering

    University of Mount Union

    USA

    Homepage

Sébastien Lallechere,

    Dr. Sébastien Lallechere

    Association Française de Science des Systèmes (AFSCET)

    France

    Homepage

Blaise Ravelo

    Dr. Blaise Ravelo

    Nanjing University of Information Science & Technology (NUIST)

    China

    Homepage

Progress In Electromagnetics Research M, Vol. 140, 96-105, 2026
DOI:10.2528/PIERM26083104 | Google Scholar

Abstract

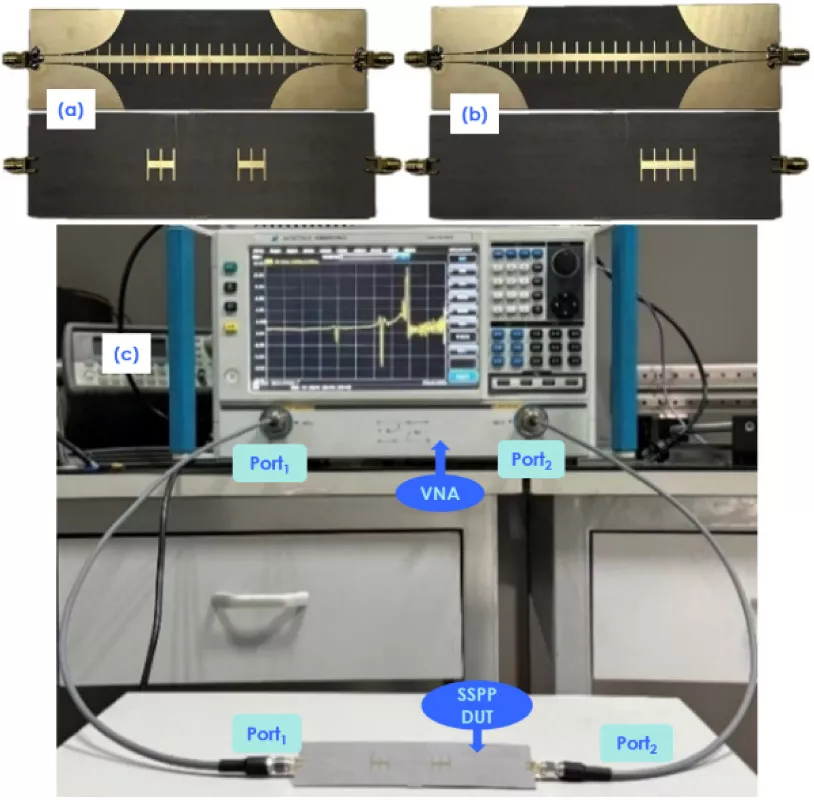

Spoof surface plasmon polariton (SSPP) circuits typically have a positive group delay (PGD), leading to undesired pulse broadening and limiting the performance of high-speed communication systems. To address this issue, a novel approach is introduced by integrating identical H-shaped units on the backside of a conventional coplanar waveguide (CPW) SSPP circuit. Negative group delay (NGD) is achieved through mutual coupling between these units, effectively compensating for PGD-induced distortions. Parametric scans revealed that increasing the number of NGD units enables multi-band NGD circuit operation, while incorporating multiple groups of isolated units further enhances NGD performance without significantly altering the center frequency. The experimental results demonstrate a dual-band NGD response with group delays (GD) GD(f1) = -2.33 ns and GD(f2) = -6.55 ns at f1 = 5.33 GHz and f2 = 8.07 GHz, respectively, and a four-band response with GDs GD(f1) = -1.66 ns, GD(f2) = -4.94 ns, GD(f3) = -4.64 ns, and GD(f4) = -1.46 ns at f1 = 3.24 GHz, f2 = 5.96 GHz, f3 = 7.64 GHz, and f4 = 8.39 GHz, respectively. These findings validate the effectiveness of the backside NGD structure in extending SSPP functionality, offering significant potential applications in microwave communication and sensing systems in which precise delay control and multi-band operation are critical.
Download Full Article (11) View Full Article volume
Citation
Qi Wang, Fayu Wan, Nathan B. Gurgel, Lagouge Tartibu, Glauco Fontgalland, Sébastien Lallechere, and Blaise Ravelo, "Multi-Band Negative Group Delay SSPP Circuits Using Backside H-Shaped Units," Progress In Electromagnetics Research M, Vol. 140, 96-105, 2026.
DOI:10.2528/PIERM26083104
References

1. Xu, Jie, Hao Chi Zhang, Wenxuan Tang, Jian Guo, Cheng Qian, and Wenyuan Li, "Transmission-spectrum-controllable spoof surface plasmon polaritons using tunable metamaterial particles," Applied Physics Letters, Vol. 108, No. 19, May 2016.
doi:10.1063/1.4950701        Google Scholar

2. Cinar, Yilmaz, Salih Yildirim, Gulay Ozsahin, Muhammed Unutmaz, and Mehmet Unlu, "Modelling terahertz spoof surface plasmon polariton waveguides using a circuit model," IEEE Transactions on Terahertz Science and Technology, Vol. 11, No. 5, 557-565, September 2021.
doi:10.1109/tthz.2021.3086690        Google Scholar

3. Kianinejad, Amin, Zhi Ning Chen, and Cheng-Wei Qiu, "Design and modeling of spoof surface plasmon modes-based microwave slow-wave transmission line," IEEE Transactions on Microwave Theory and Techniques, Vol. 63, No. 6, 1817-1825, June 2015.
doi:10.1109/tmtt.2015.2422694        Google Scholar

4. Gu, Lin and Yuandan Dong, "Miniaturized reconfigurable dual-band bandstop filter utilizing a novel hybrid resonator for enhanced stopband suppression," Chinese Journal of Electronics, Vol. 34, No. 3, 766-773, May 2025.
doi:10.23919/cje.2024.00.224        Google Scholar

5. Jaiswal, Rahul Kumar, Nidhi Pandit, and Nagendra Prasad Pathak, "Amplification of propagating spoof surface plasmon polaritons in ring resonator-based filtering structure," IEEE Transactions on Plasma Science, Vol. 48, No. 9, 3253-3260, September 2020.
doi:10.1109/tps.2020.3014856        Google Scholar

6. Wu, Jieping, Weilai Wang, Maode Liu, Shuangxi Xue, Guangming Yang, and Xiaoqing Yang, "A nondestructive liquid-level sensor based on spoof surface plasmon polaritons controlled by liquid metal switches," IEEE Sensors Journal, Vol. 25, No. 15, 29841-29850, August 2025.
doi:10.1109/jsen.2025.3581232        Google Scholar

7. Xing, Jiaqi, Da Li, Yudi Fan, Gangzha Liu, Xiaobin Lin, Ruifeng Li, Ling Zhang, Hongsheng Chen, and Er-Ping Li, "Ultra-thin SSPP-based sheet for suppressing microwave radiated emission in SiP modules," IEEE Transactions on Electromagnetic Compatibility, Vol. 65, No. 2, 376-385, April 2023.
doi:10.1109/temc.2022.3230057        Google Scholar

8. Ji, Lei, Xiao-Chun Li, and Jun-Fa Mao, "Half-mode substrate integrated waveguide dispersion tailoring using 2.5-D spoof surface plasmon polaritons structure," IEEE Transactions on Microwave Theory and Techniques, Vol. 68, No. 7, 2539-2550, July 2020.
doi:10.1109/tmtt.2020.2989278        Google Scholar

9. Chaparla, Rishitej, et al. "Spoof surface plasmon polaritons-based feeder for a dielectric rod antenna at microwave frequencies," Progress In Electromagnetics Research M, Vol. 129, 23-32, 2024.
doi:10.2528/pierm24080403        Google Scholar

10. Cai, Weibin and Longfang Ye, "A transition-free miniaturized bandpass filter with a wide upper stopband based on defected-ground spoof surface plasmon polariton units," IEEE Transactions on Microwave Theory and Techniques, Vol. 73, No. 11, 9226-9236, November 2025.
doi:10.1109/tmtt.2025.3594729        Google Scholar

11. Lu, Guodong, Qi Kang, and Weiwen Li, "SSPP transmission system with negative group delay and power compensation," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 72, No. 6, 868-872, June 2025.
doi:10.1109/tcsii.2025.3564569        Google Scholar

12. Wei, Li, Yuheng Li, and Weiwen Li, "Negative group delay SSPP mode based on coupled periodic cells," Optics Communications, Vol. 569, 130795, October 2024.
doi:10.1016/j.optcom.2024.130795        Google Scholar

13. Lu, Guodong, Yuheng Li, and Weiwen Li, "Implementing negative group delay by using SSPP units with equivalent single negative permeability," Alexandria Engineering Journal, Vol. 127, 1064-1072, August 2025.
doi:10.1016/j.aej.2025.07.005        Google Scholar

14. Gu, T., F. Wan, and B. Ravelo, "Design of ultra-wide band flat negative group delay circuit," Acta Electronica Sinica, Vol. 52, No. 12, 3967-3975, 2024.
doi:10.12263/DZXB.20240185        Google Scholar

15. Gu, Taochen, Fayu Wan, Junxiang Ge, Lalléchère Sébastien, Rahajandraibe Wenceslas, and Ravelo Blaise, "NGD analysis of defected ground and siw-matched structure," Chinese Journal of Electronics, Vol. 32, No. 2, 343-352, March 2023.
doi:10.23919/cje.2021.00.233        Google Scholar

16. Cui, Wenyi, Yue Cen, and Jingjing Zhang, "Fixed-condition spoof plasmonic parametric amplifier for multi-carrier signals," Progress In Electromagnetics Research, Vol. 185, 49-56, 2026.
doi:10.2528/pier26021102        Google Scholar

17. Jaiswal, Rahul Kumar, Nidhi Pandit, and Nagendra Prasad Pathak, "Spoof plasmonic-based band-pass filter with high selectivity and wide rejection bandwidth," IEEE Photonics Technology Letters, Vol. 31, No. 15, 1293-1296, August 2019.
doi:10.1109/lpt.2019.2926094        Google Scholar

18. Liu, Yiqin, Wanli Li, Jinxuan Deng, and Weiwen Li, "A gain-tunable SSPP circuit system with negative group delay," IEEE Journal of Selected Topics in Quantum Electronics, Vol. 32, No. 3, 1-5, May 2026.
doi:10.1109/jstqe.2026.3654052        Google Scholar

19. Lu, Guodong, Yiqin Liu, and Weiwen Li, "A novel spoof surface plasmon polaritons unit with dual-band negative group delay," IEEE Transactions on Plasma Science, Vol. 54, No. 1, 228-235, January 2026.
doi:10.1109/tps.2025.3635647        Google Scholar

20. Wang, Zhongbao, Yuan Cao, Te Shao, Shaojun Fang, and Yuanan Liu, "A negative group delay microwave circuit based on signal interference techniques," IEEE Microwave and Wireless Components Letters, Vol. 28, No. 4, 290-292, April 2018.
doi:10.1109/lmwc.2018.2811254        Google Scholar

21. Ravelo, Blaise, "X-band negative group-delay lossy stub line," IET Microwaves, Antennas & Propagation, Vol. 12, No. 1, 137-143, December 2017.
doi:10.1049/iet-map.2017.0024        Google Scholar
