2026-07-27
Modulation of Electromagnetic Wave Physical Characteristics by Strongly Anisotropic Acoustic Metamaterials
By
Zhanying Guo,

    Dr. Zhanying Guo

    Jiaozuo Normal College

    China

    Homepage

Hui Li,

    Dr. Hui Li

    Jiaozuo Normal College

    China

    Homepage

Yang An

    Dr. Yang An

    Jiaozuo Normal College

    China

    Homepage

Progress In Electromagnetics Research M, Vol. 139, 21-35, 2026
doi:10.2528/PIERM26031803 | Google Scholar

Abstract

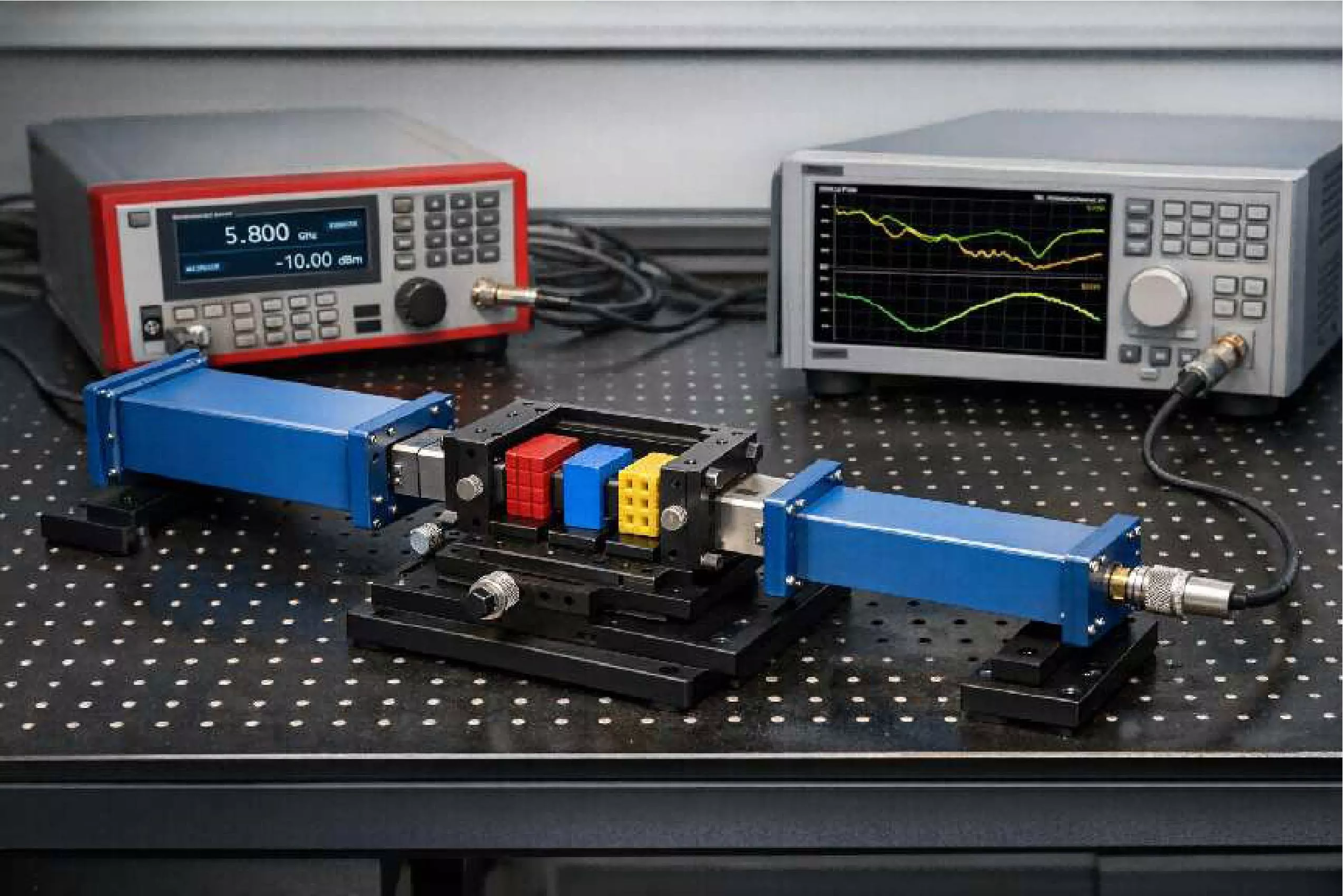

Objective: This study aims to experimentally and numerically investigate the modulation of electromagnetic wave physical characteristics (transmittance, absorptance, impedance) by strongly an isotropic acoustic materialism in the 2-12 GHz frequency band, and to quantify the influence of material parameters (thickness, density, elastic modulus, an isotropic direction) on wave control performance. Methods: Three types of material units (metal composite, polymer, ceramic reinforced) with thicknesses of 1.5-3 mm and anisotropic directions along X, Y, Z axes were fabricated. Transmittance and absorbance were measured using a vector network analyzer with a WR-90 guideway system. Finite element simulations incorporating acoustic-electromagnetic coupling (strain-induced permittivity modulation) were conducted. Sensitivity analysis was performed by varying thickness (±10%), elastic modulus (±5 GPa), density (±500 kg/m3), and direction angle (±15°). Results: High-frequency absorbance reached 0.91 (metal composite at 9.5 GHz), while low-frequency transmittance remained above 0.70. Thickness and elastic modulus predominantly affected the amplitude and position of high-frequency absorption peaks, whereas density and direction angle primarily regulated low-frequency response, resulting in multi-peak broadband absorption. The deviation between experimental data and finite element simulation was less than 3%. Sensitivity analysis revealed that thickness (±10%) and elastic modulus (±5 GPa) produced the most significant changes in transmittance (0.60-0.91) and absorptance (0.70-0.91). Conclusion: Strongly an isotropic acoustic materialism offer mechanically t unable electromagnetic wave control, with thickness and elastic modulus as key design parameters. These findings provide experimental and theoretical references for high-frequency communication antennas, radar stealth coatings, and broadband absorption devices.
Download Full Article (6) View Full Article volume
Citation
Zhanying Guo, Hui Li, and Yang An, "Modulation of Electromagnetic Wave Physical Characteristics by Strongly Anisotropic Acoustic Metamaterials," Progress In Electromagnetics Research M, Vol. 139, 21-35, 2026.
doi:10.2528/PIERM26031803
References

1. Yao, Dan, Jie Zhang, Jingyu Lei, Zixuan Zhao, Yumei Zhang, Yue Zhao, Jie Pang, and Jiang Li, "A comprehensive review of acoustic metamaterials: Applications and challenges for lightweight noise control in large-scale transportation," Materials & Design, Vol. 260, 115002, 2025.
doi:10.1016/j.matdes.2025.115002        Google Scholar

2. Liu, Zeyu, Longping Huo, Zhenyi Sun, Jianfeng Wu, and Baoliang Zhang, "Raspberry-structured composite microspheres with enhanced electromagnetic wave attenuation via controlling the carbothermal process," Science China Materials, Vol. 68, 4192-4203, 2025.
doi:10.1007/s40843-025-3501-0        Google Scholar

3. Cao, Wei, Wenjing Li, Haiyang Yi, and Yuanyuan Liu, "Probability analysis of undrained clay slope stability considering strength anisotropy and heterogeneous rotated anisotropy," Frontiers in Earth Science, Vol. 13, 1581457, 2025.
doi:10.3389/feart.2025.1581457        Google Scholar

4. Li, Zelin, Shaohua Zhang, Guofa Li, and Weiwei Gu, "Stable high-frequency components recovery via multichannel absorption compensation," IEEE Transactions on Geoscience and Remote Sensing, Vol. 63, 1-9, 2025.
doi:10.1109/tgrs.2025.3566400        Google Scholar

5. Cui, Shuo, Yaoyao Li, Shijian Zhang, Ling Chen, Cheng Cao, and Donglin Su, "A polarization control operator for polarized electromagnetic wave designing," Chinese Journal of Electronics, Vol. 33, No. 5, 1253-1260, 2024.
doi:10.23919/cje.2022.00.410        Google Scholar

6. Wan, Yuanhong, Fengyuan Shen, Yuping Sun, and Xianguo Liu, "Boosting magnetic loss and impedance matching based on laminated structure for balancing low-/high-frequency broadband microwave absorption," Journal of Alloys and Compounds, Vol. 1001, 175162, 2024.
doi:10.1016/j.jallcom.2024.175162        Google Scholar

7. Kim, Seung-Woo, Jung-Woo Song, Jun-Pyo Hong, Hyun-Jong Kim, and Jong-Hun Kang, "Finite element analysis and validation of wind turbine bearings," Energies, Vol. 17, No. 3, 692, 2024.
doi:10.3390/en17030692        Google Scholar

8. Liu, Yichao, Xiaomin Ma, Kun Chao, Fei Sun, Zihao Chen, Jinyuan Shan, Hanchuan Chen, Gang Zhao, and Shaojie Chen, "Simultaneously realizing thermal and electromagnetic cloaking by multi-physical null medium," Opto-Electronic Science, Vol. 3, No. 2, 230027, 2024.
doi:10.29026/oes.2024.230027        Google Scholar

9. He, Sailing, Ruili Zhang, and Junbo Liang, "Multi-physical field null medium: New solutions for the simultaneous control of EM waves and heat flow," Opto-Electronic Advances, Vol. 7, No. 11, 240211, 2024.
doi:10.29026/oea.2024.240211        Google Scholar

10. Lu, Dang, Wenhao Yang, Haidong Wu, and Tao Zhou, "Research on simplified tire finite element modeling and simulation method," Proceedings of the Institution of Mechanical Engineers, Part D: Journal of Automobile Engineering, Vol. 239, No. 2-3, 447-463, 2025.
doi:10.1177/09544070231207528        Google Scholar

11. Chen, Luyun and Xichun Huang, "Acoustic cloaking design based on penetration manipulation with combination acoustic metamaterials," Journal of Low Frequency Noise, Vibration and Active Control, Vol. 43, No. 1, 429-436, 2024.
doi:10.1177/14613484231209299        Google Scholar

12. Liu, Yijie, Jintang Zhou, Xiaoxuan He, Lvtong Duan, Yucheng Wang, Zhenyu Cheng, and Zhengjun Yao, "Magneto-electric integrated design strategy of NiCo@ C composites for synergistic absorption and conversion in mid-high frequency microwaves," Nano Research, Vol. 17, No. 4, 2205-2215, 2024.
doi:10.1007/s12274-023-6085-0        Google Scholar

13. Dong, Erqian, Peizheng Cao, Jinhu Zhang, Sai Zhang, N. X. Fang, and Yu Zhang, "Underwater acoustic metamaterials," National Science Review, Vol. 10, No. 6, nwac246, 2023.
doi:10.1093/nsr/nwac246        Google Scholar

14. Walker, Joanna M. and John P. Castagna, "Excess anisotropy: A method to predict frequency of resistive fractures in the wolfcamp shale," Energies, Vol. 16, No. 6, 2838, 2023.
doi:10.3390/en16062838        Google Scholar

15. Zhu, Zhenjing, Ning Hu, Junyi Wu, Wenxin Li, Jiabao Zhao, Maofa Wang, Fanzong Zeng, Huajie Dai, and Yongju Zheng, "A review of underwater acoustic metamaterials for underwater acoustic equipment," Frontiers in Physics, Vol. 10, 1068833, 2022.
doi:10.3389/fphy.2022.1068833        Google Scholar

16. Peng, Yu-Gui, Simon Yves, and Ying Li, "Editorial: Advances in phononic and acoustic metamaterials," Frontiers in Physics, Vol. 10, 1078449, 2022.
doi:10.3389/fphy.2022.1078449        Google Scholar

17. Pokhrel, Ashok, Bhuwan Nepal, Upama Karki, Arjun Sapkota, Anish Rai, Sara Bey, Tim Mewes, and Claudia Mewes, "Influence of layer dependent perpendicular anisotropy on higher-order anisotropies in thin films," Journal of Magnetism and Magnetic Materials, Vol. 563, 169963, 2022.
doi:10.1016/j.jmmm.2022.169963        Google Scholar

18. Ji, Guosheng and John Huber, "Recent progress in acoustic metamaterials and active piezoelectric acoustic metamaterials --- A review," Applied Materials Today, Vol. 26, 101260, 2022.
doi:10.1016/j.apmt.2021.101260        Google Scholar

19. Gu, Xiaoqiang, Youhong Li, Jing Hu, Zhenhao Shi, Fayun Liang, and Maosong Huang, "Elastic shear stiffness anisotropy and fabric anisotropy of natural clays," Acta Geotechnica, Vol. 17, No. 8, 3229-3243, 2022.
doi:10.1007/s11440-022-01468-x        Google Scholar

20. Gao, Nansha, Zhicheng Zhang, Jie Deng, Xinyu Guo, Baozhu Cheng, and Hong Hou, "Acoustic metamaterials for noise reduction: A review," Advanced Materials Technologies, Vol. 7, No. 6, 2100698, 2022.
doi:10.1002/admt.202100698        Google Scholar

21. Zhou, Yi-Qing and Wen-Yu Luo, "A finite element model for underwater sound propagation in 2-D environment," Journal of Marine Science and Engineering, Vol. 9, No. 9, 956, 2021.
doi:10.3390/jmse9090956        Google Scholar

22. Song, Hao, Xiaodong Ding, Zixian Cui, and Haohao Hu, "Research progress and development trends of acoustic metamaterials," Molecules, Vol. 26, No. 13, 4018, 2021.
doi:10.3390/molecules26134018        Google Scholar

23. Han, Rui, Peng Shen, Liang Qiao, Hongsheng Chen, Yikun Fang, Zhaohui Guo, Shengzhi Dong, Minggang Zhu, Dong Zhou, Fashen Li, and Wei Li, "High frequency properties of 2D Sm2Fe14B nanoflakes with bianisotropy," Journal of Magnetism and Magnetic Materials, Vol. 529, 167859, 2021.
doi:10.1016/j.jmmm.2021.167859        Google Scholar

24. Lian, J. X., B. Zhou, Y. H. Wang, and J. Li, "Measurement of gas concentration under strong interference by frequency multiplexing based on high-frequency reference signal," Acta Optica Sinica, Vol. 40, No. 16, 186-198, 2020.
doi:10.3788/AOS202040.1630001        Google Scholar

25. Kumar, Sanjay and Heow Pueh Lee, "Recent advances in acoustic metamaterials for simultaneous sound attenuation and air ventilation performances," Crystals, Vol. 10, No. 8, 686, 2020.
doi:10.3390/cryst10080686        Google Scholar
