Abstract

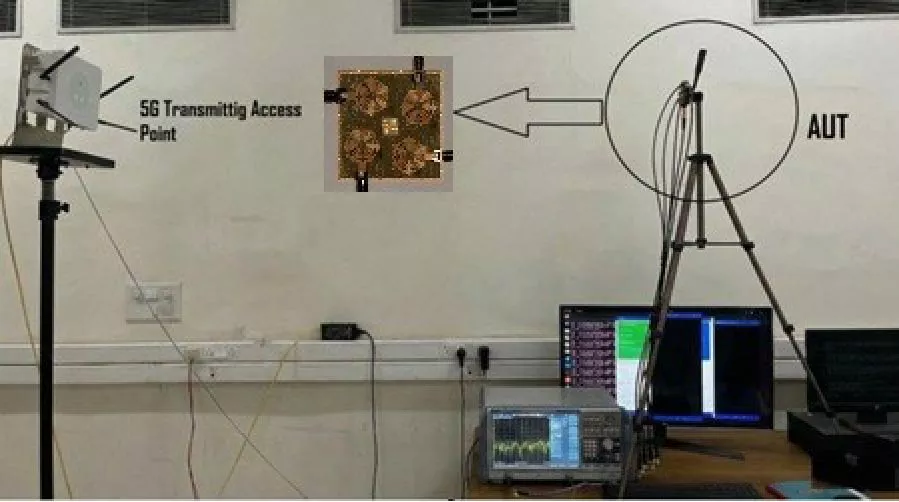

A compact, fractal-shaped, triple-band multiple-input multiple-output (MIMO) antenna integrated with a frequency-selective surface (FSS) to improve radiation characteristics is presented in this work. The proposed design employs a fractal-based radiating element to achieve multiband characteristics while minimizing the size. The four-port MIMO configuration is developed from a single-port radiator using an orthogonal arrangement to improve the port isolation. A central square slot is introduced to suppress mutual coupling by interrupting surface current paths, thereby improving inter-element isolation across all operating bands. To enhance the gain, a multi-resonant uniplanar frequency selective surface (FSS) is designed and positioned to act as a partially reflective surface. The FSS unit cell, modelled using an equivalent circuit approach, exhibits three distinct stopbands corresponding to the desired operating frequencies of 2.7-3.5 GHz, 5.5-8.4 GHz and 9.3-10.9 GHz. The combined antenna-FSS configuration, with the overall electrical size of (0.5×0.5×0.235)λ, demonstrates a gain improvement of 3-4 dBi in all bands, without compromising bandwidth. With three frequency bands of 2.5-3.875 GHz, 5.25-6.05 GHz and 8.6-10.6 GHz, the proposed MIMO antenna achieves good MIMO characteristics, making it suitable for modern high-speed wireless technologies including sub-6-GHz 5G (WiMAX), WLAN, and ISM bands.

1. Kunwar, Alaknanda, Anil Kumar Gautam, and Binod Kumar Kanaujia, "Inverted L-slot triple-band antenna with defected ground structure for WLAN and WiMAX applications," International Journal of Microwave and Wireless Technologies, Vol. 9, No. 1, 191-196, 2017.
doi:10.1017/s1759078715001105 Google Scholar

2. Pandey, Dheeraj, Reshmi Dhara, and Surajit Kundu, "A table lamp shaped compact triband antenna for various wireless technologies," International Conference on Intelligent Communication, Control and Devices, Vol. 1164, 309-320, Singapore, 2025.
doi:10.1007/978-981-97-8329-8_24

3. Hussain, Niamat, Anees Abbas, Sang-Myeong Park, Seong Gyoon Park, and Kim Nam, "A compact tri-band antenna based on inverted-L stubs for smart devices," Computers, Materials, & Continua, Vol. 70, No. 2, 3321-3331, 2022.
doi:10.32604/cmc.2022.020688 Google Scholar

4. Wang, Lan, Jianguo Yu, Tangyao Xie, and Kun Bi, "A novel multiband fractal antenna for wireless application," International Journal of Antennas and Propagation, Vol. 2021, No. 1, 9926753, 2021.
doi:10.1155/2021/9926753 Google Scholar

5. Rajpoot, Shalikram, Gaurav Singh Baghel, and M. V. Swati, "Design of a compact, wideband, diagonal square fractal MIMO antenna for vehicular communication," AEU --- International Journal of Electronics and Communications, Vol. 202, 156023, Dec. 2025.
doi:10.1016/j.aeue.2025.156023 Google Scholar

6. Abo El-Hassan, M., Asmaa E. Farahat, and Khalid F. A. Hussein, "Multiband millimeter-wave patch antenna with parasitic element," Microwave and Optical Technology Letters, Vol. 65, No. 2, 590-596, 2023.
doi:10.1002/mop.33495 Google Scholar

7. Hwang, In-June, Ju-Ik Oh, Hye-Won Jo, Kwang-Seok Kim, Jong-Won Yu, and Dong-Jin Lee, "28 GHz and 38 GHz dual-band vertically stacked dipole antennas on flexible liquid crystal polymer substrates for millimeter-wave 5G cellular handsets," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 5, 3223-3236, May 2022.
doi:10.1109/tap.2021.3137234 Google Scholar

8. Ruchi, Ruchi and Machavaram V. Kartikeyan, "Metamaterial-inspired tri-band antenna for 5G-C and Ka band applications," Microwave and Optical Technology Letters, Vol. 63, No. 9, 2423-2429, Sep. 2021.
doi:10.1002/mop.32923 Google Scholar

9. Liu, Chun-Mei, Shao-Qiu Xiao, and Ke Wu, "Miniaturized cylindrical open-ended SIW cavity antenna and its dual-band applications," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 8, 4390-4400, Aug. 2021.
doi:10.1109/tap.2020.3048553 Google Scholar

10. Bansal, Aakash and Richa Gupta, "A review on microstrip patch antenna and feeding techniques," International Journal of Information Technology, Vol. 12, No. 1, 149-154, 2020.
doi:10.1007/s41870-018-0121-4 Google Scholar

11. Raj, Tej, Ranjan Mishra, Ankush Kapoor, Dheeraj Pandey, and Surajit Kundu, "A compact quad port MIMO antenna with gain augmentation using angularly stable and polarization insensitive FSS for 5G communication," AEU --- International Journal of Electronics and Communications, Vol. 190, 155636, Feb. 2025.
doi:10.1016/j.aeue.2024.155636 Google Scholar

12. Pandey, Dheeraj and Surajit Kundu, "Design and analysis of a quad-port dual-band MIMO antenna for submillimeter and millimeter wave 5G applications," International Journal of Communication Systems, Vol. 38, No. 12, e70168, Aug. 2025.
doi:10.1002/dac.70168 Google Scholar

13. Khan, Aamir Shafi and Surajit Kundu, "A quad-port sub millimeter and millimeter wave ultra-wideband compact MIMO antenna with isolation improvement for 5G FR-2 band applications," Sādhanā, Vol. 50, No. 3, 175, Aug. 2025.
doi:10.1007/s12046-025-02865-0 Google Scholar

14. Sun, Yitian, Minmin Tian, and G. S. Cheng, "Characteristic mode-based neutralization line design for MIMO antenna," International Journal of Antennas and Propagation, Vol. 2022, No. 1, 9669114, 2022.
doi:10.1155/2022/9669114 Google Scholar

15. Mistri, Raj Kumar, Ajit Kumar Singh, Santosh Kumar Mahto, and Rashmi Sinha, "Quad element millimetre-wave MIMO antenna for 5G communication," Journal of Electromagnetic Waves and Applications, Vol. 37, No. 15, 1258-1273, 2023.
doi:10.1080/09205071.2023.2231934 Google Scholar

16. Ghosh, Sourav, Gaurav Singh Baghel, and M. V. Swati, "Design of a highly-isolated, high-gain, compact 4-port MIMO antenna loaded with CSRR and DGS for millimeter wave 5G communications," AEU --- International Journal of Electronics and Communications, Vol. 169, 154721, Sep. 2023.
doi:10.1016/j.aeue.2023.154721 Google Scholar

17. Dey, Soumik, Sukomal Dey, and Shiban K. Koul, "Isolation improvement of MIMO antenna using novel EBG and hair-pin shaped DGS at 5G millimeter wave band," IEEE Access, Vol. 9, 162820-162834, 2021.
doi:10.1109/access.2021.3133324 Google Scholar

18. Prasad, S., M. Meenakshi, N. Adhithiya, P. H. Rao, Radha Krishna Ganti, and Saswata Bhaumik, "mmWave multibeam phased array antenna for 5G applications," Journal of Electromagnetic Waves and Applications, Vol. 35, No. 13, 1802-1814, 2021.
doi:10.1080/09205071.2021.1917004 Google Scholar

19. Yin, Si-Yu, Jia-Lin Li, Yi-Ming Zhang, and Qi-Cheng Ye, "Fan-shaped multibeam metasurface lens antenna for high crossover levels and stable radiation gain," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 6, 1809-1813, 2024.
doi:10.1109/lawp.2024.3370262 Google Scholar

20. Iqbal, J., Usman Illahi, M. N. M. Yasin, Mahmoud A. Albreem, and M. F. Akbar, "Bandwidth enhancement by using parasitic patch on dielectric resonator antenna for Sub-6 GHz 5G NR bands application," Alexandria Engineering Journal, Vol. 61, No. 6, 5021-5032, Jun. 2022.
doi:10.1016/j.aej.2021.09.049 Google Scholar

21. Elabd, Rania Hamdy and Ahmed Jamal Abdullah Al-Gburi, "Super-compact 28/38 GHz 4-port MIMO antenna using metamaterial-inspired EBG structure with SAR analysis for 5G cellular devices," Journal of Infrared, Millimeter, and Terahertz Waves, Vol. 45, No. 1, 35-65, 2024.
doi:10.1007/s10762-023-00959-6 Google Scholar

22. Rajavel, V. and Dibyendu Ghoshal, "Multiband antenna design with integrated AMC surface and FSS superstrate for wireless body area network communications," Arabian Journal for Science and Engineering, Vol. 49, No. 12, 16495-16520, 2024.
doi:10.1007/s13369-024-09060-z Google Scholar

23. Desai, Arpan, Heng-Tung Hsu, Yi-Fan Tsao, Basma M. Yousef, and Ahmed A. Ibrahim, "FSS based high gain optically transparent MIMO antenna for Sub-6 GHz 5G mid-band applications," Optik, Vol. 307, 171829, Jul. 2024.
doi:10.1016/j.ijleo.2024.171829 Google Scholar

24. Zeain, M. Y., Maisarah Abu, Ayman A. Althuwayb, Hussein Alsariera, Ahmed Jamal Abdullah Al-Gburi, Ali Abdulateef Abdulbari, and Zahriladha Zakaria, "A new technique of FSS-based novel chair-shaped compact MIMO antenna to enhance the gain for Sub-6 GHz 5G applications," IEEE Access, Vol. 12, 49489-49507, 2024.
doi:10.1109/access.2024.3380013 Google Scholar

25. Salem, Ahmed Mohamed, Hanane Djellab, Mohamed Lashab, Oumaima Allaoua, Mahmud Abd Elwanis, Chan Hwang See, and Raed A. Abd-Alhameed, "High isolation and high gain of MIMO antennas with FSS for 5G mm-Wave applications," Microwave and Optical Technology Letters, Vol. 68, No. 1, e70499, Jan. 2026.
doi:10.1002/mop.70499 Google Scholar

26. Kundu, Surajit, "Gain augmentation of a triple notched ultra-wideband antenna using compact uniplanar frequency selective surface for ground penetrating radar," IETE Journal of Research, Vol. 69, No. 2, 813-824, 2023.
doi:10.1080/03772063.2020.1838348 Google Scholar

27. Al-Gburi, A. J. A., "Do we really need frequency-selective surface and metasurface reflectors for antenna gain enhancement, or are metallic reflectors enough?," International Journal of Antennas and Propagation, Vol. 2026, No. 1, 2141943, 2026.
doi:10.1155/ijap/2141943 Google Scholar

28. Al-Gburi, Ahmed Jamal Abdullah, Imran Bin Mohd Ibrahim, Mohammed Yousif Zeain, and Zahriladha Zakaria, "Compact size and high gain of CPW-fed UWB strawberry artistic shaped printed monopole antennas using FSS single layer reflector," IEEE Access, Vol. 8, 92697-92707, 2020.
doi:10.1109/access.2020.2995069 Google Scholar

29. Mohammed, Dunya Zeki and Ahmed J. A. Al-Gburi, "Compact, gain-enhanced 5G mmWave antenna with metallic ground-backed reflector for high-speed railway communication systems," High-speed Railway, Vol. 3, No. 4, 281-292, Dec. 2025.
doi:10.1016/j.hspr.2025.08.004 Google Scholar

30. Al-Gburi, Ahmed Jamal Abdullah, Imran Bin Mohd Ibrahim, Zahriladha Zakaria, Badrul Hisham Ahmad, Noor Azwan Bin Shairi, and Mohammed Yousif Zeain, "High gain of UWB planar antenna utilising FSS reflector for UWB applications," Computers, Materials, & Continua, Vol. 70, No. 1, 1419-1436, 2022.
doi:10.32604/cmc.2022.019741 Google Scholar

31. Al-Gburi, Ahmed Jamal Abdullah, Imran Mohd Ibrahim, Zahriladha Zakaria, Muhannad Kaml Abdulhameed, and Tale Saeidi, "Enhancing gain for UWB antennas using FSS: A systematic review," Mathematics, Vol. 9, No. 24, 3301, Dec. 2021.
doi:10.3390/math9243301 Google Scholar

Dr. Suvro Kundu

Dr. Dheeraj Pandey

Dr. Tej Raj

Dr. Surajit Kundu
