Abstract

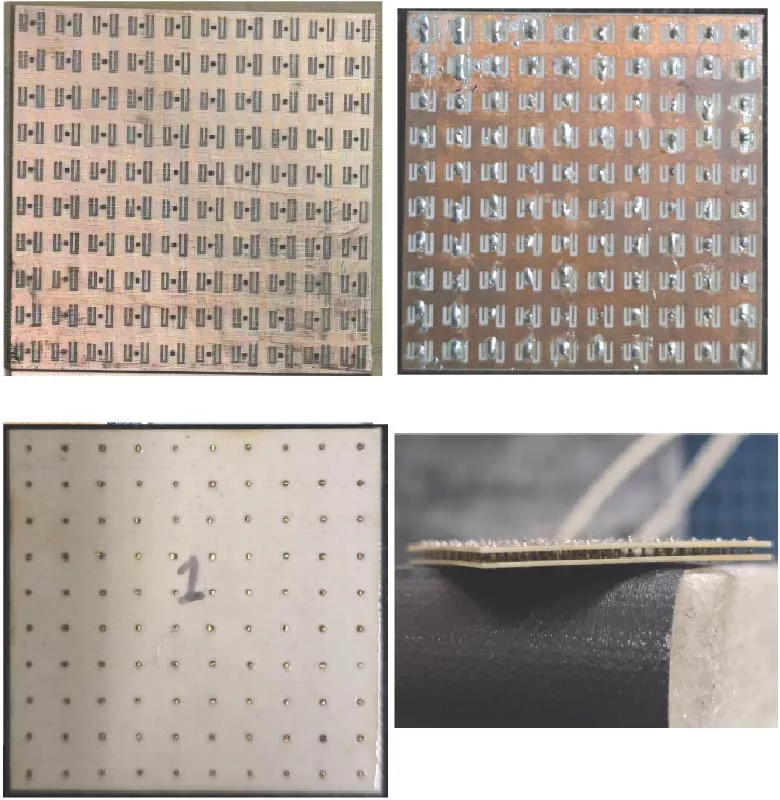

This study presents a compact frequency-selective metasurface for transmissive and reflective polarization conversion over the V-band (40-65 GHz). The structure consists of two Rogers RO4003C substrates separated by a 0.2-mm air gap and interconnected by a metallic post to enhance electromagnetic coupling. We performed parametric optimization to obtain multiple polarization-conversion bands. The optimized unit cell has a periodicity of 3.9 mm and employs resonator dimensions of L₁ = 2.6 mm, L₂ = 2.1 mm, W = 1.0 mm, S = 0.3 mm, H = 0.2 mm, and D = 0.3 mm. We conducted full-wave simulations and free-space measurements using WR-19 horn antennas and a vector network analyzer for validation. The proposed structure exhibits frequency-selective polarization-conversion behavior, with the transmission conversion exceeding 90% over approximately 40-49 GHz and near-unity conversion at selected frequencies, while the reflection conversion approaches 100% at resonant frequencies of approximately 58 and 60.5 GHz. The fabricated prototype showed good agreement with simulations, with minor discrepancies attributed to fabrication and measurement uncertainties. The proposed structure is promising for millimeter-wave communications, intelligent electromagnetic surfaces, radar sensing, transmitarray antennas, and future 6G systems.

1. Stutzman, Warren L., Polarization in Electromagnetic Systems, 2nd Ed., Artech House, Norwood, MA, USA, 2018.

2. Zhu, Qian, Hanwei Tian, and Weixiang Jiang, "Manipulations and applications of radiating waves using electromagnetic metasurfaces," Opto-Electronic Engineering, Vol. 50, No. 9, 230115, 2023.
doi:10.12086/oee.2023.230115 Google Scholar

3. Omar, Ahmed Abdelmottaleb, "Reflective and transmissive linear polarization rotators: A review," IEEE Open Journal of Antennas and Propagation, Vol. 6, No. 3, 633-644, 2025.
doi:10.1109/ojap.2025.3543633 Google Scholar

4. Zhang, Bianmei and Xiaoming Liu, "Broadband efficient reflective linear polarization converter," Progress In Electromagnetics Research C, Vol. 159, 235-242, 2025.
doi:10.2528/PIERC25080104 Google Scholar

5. Neema, Kinatingal and Deepti Das Krishna, "Dual split ring resonator based reconfigurable reflective metasurface for linear-to-linear polarization conversion," Progress In Electromagnetics Research M, Vol. 124, 11-17, 2024.
doi:10.2528/pierm23121102 Google Scholar

6. Kamal, Babar, Jingdong Chen, Yingzeng Yin, Jian Ren, Sadiq Ullah, and Usman Ali, "Design and experimental analysis of dual-band polarization converting metasurface," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 8, 1409-1413, 2021.
doi:10.1109/lawp.2021.3083334 Google Scholar

7. Li, Fengxia, Linbo Zhang, Peiheng Zhou, Haiyan Chen, Rui Zhao, Yang Zhou, Difei Liang, Haipeng Lu, and Longjiang Deng, "Dual-band reflective polarization converter based on slotted wire resonators," Applied Physics B, Vol. 124, No. 2, 28, 2018.
doi:10.1007/s00340-018-6900-6 Google Scholar

8. Wu, Yuming, Shengli Jia, and Ting Zheng, "Design of an ultra-wide-angle reflective polarization conversion metasurfaces," 2022 International Conference on Microwave and Millimeter Wave Technology (ICMMT), 1-3, Harbin, China, 2022.
doi:10.1109/ICMMT55580.2022.10023127

9. Madheswaran, Saranya and Rajeshkumar Venkatesan, "A dual-band reflective polarizer based meta-surface with higher angular stability for C and X-band applications," Scientific Reports, Vol. 14, No. 1, 29353, 2024.
doi:10.1038/s41598-024-80734-2 Google Scholar

10. Ren, Xiaole, Yunqing Liu, Zhonghang Ji, Qiong Zhang, and Wei Cao, "Ultra-wideband passive polarization conversion metasurface for radar cross-section reduction across C-, X-, Ku-, and K-bands," Micromachines, Vol. 16, No. 3, 292, 2025.
doi:10.3390/mi16030292 Google Scholar

11. Yan, Mingbao, Jiafu Wang, Weiyu Wang, Cuilian Xu, Hongya Chen, Wenjie Wang, Lin Zheng, and Shaobo Qu, "An FSS-backed reflective polarization conversion meta-surface for radar stealth," Photonics and Nanostructures --- Fundamentals and Applications, Vol. 43, 100846, 2021.
doi:10.1016/j.photonics.2020.100846 Google Scholar

12. Eldesouki, Eman M., Shaza M. El-Nady, Shimaa A. M. Soliman, and Ahmed M. Attiya, "Quad-band reflective metasurface for linear to circular polarization conversion," Microwave and Optical Technology Letters, Vol. 66, No. 6, e34223, 2024.
doi:10.1002/mop.34223 Google Scholar

13. Zhang, Bao, Qi Xie, Tianxing Gao, Shui Liu, and Feng Xu, "A low-profile wide-angle multiband multifunctional reflective polarization conversion metasurface," Microwave and Optical Technology Letters, Vol. 67, No. 4, e70194, 2025.
doi:10.1002/mop.70194 Google Scholar

14. Lin, Xiaofang, Xu Zhang, Ming Chang, Wenqiang Li, Siyang Yu, and Maolong Zhang, "Dual-band reflective polarization converter based on metasurface," Optoelectronics Letters, Vol. 19, No. 12, 716-720, 2023.
doi:10.1007/s11801-023-3040-y Google Scholar

15. Chandra, Madhavi, Nilotpal, Diptiranjan Samantaray, M. Thottappan, and Somak Bhattacharyya, "A broadband transmissive type metasurface cross-polarization converter for EMC application," IEEE Transactions on Electromagnetic Compatibility, Vol. 65, No. 1, 186-194, 2023.
doi:10.1109/temc.2022.3213833 Google Scholar

16. Bose, Meenambal and Vasudevan Karuppiah, "Design and experimental characterization of an anisotropic transmissive metasurface for polarization conversion in upper mid-band 6G systems," Measurement, Vol. 269, 120797, 2026.
doi:10.1016/j.measurement.2026.120797 Google Scholar

17. Shen, Zhaoyang, Qinghe Zhang, Xiaojun Huang, Jiong Wu, and Helin Yang, "Simultaneous transmissive and reflective polarization conversion cross different operating bands in a single metasurface," Optics & Laser Technology, Vol. 169, 110071, 2024.
doi:10.1016/j.optlastec.2023.110071 Google Scholar

18. El Yousfi, Ahmed, Joudi M. Al-Ahmadi, Abdulrahman Mohammed Alnour Ahmed, and Ahmed Abdelmottaleb Omar, "Simple dual-band polarization rotator with independent control of transmissive and reflective modes," Progress In Electromagnetics Research Letters, Vol. 129, 42-46, 2026.
doi:10.2528/pierl26011702 Google Scholar

19. Wan, Houfeng, Guowen Ding, Lei Zhang, Xinyao Luo, and Shenyun Wang, "An ultrathin single-layer polarization converter with independently tunable transmission and reflection operating frequencies," IEEE Antennas and Wireless Propagation Letters, Vol. 25, No. 5, 2045-2049, 2026.
doi:10.1109/lawp.2026.3670618 Google Scholar

20. Yang, Heng, Yuan He, Mei Song Tong, Le Tian Guo, Peng Li, and Yun Jing Zhang, "A reflection-transmission multifunctional polarization conversion metasurface," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 6, 5099-5109, 2024.
doi:10.1109/tap.2024.3400619 Google Scholar

21. Nasir, Muhammad, Slawomir Koziel, and Anna Pietrenko-Dabrowska, "A multifunctional bi-anisotropic metasurface with reflection-transmission polarization conversion and narrow bandpass transmission characteristics," Scientific Reports, Vol. 16, No. 1, 13838, 2026.
doi:10.1038/s41598-026-44437-0 Google Scholar

22. Lestari, Defi, Dian Widi Astuti, Umaisaroh Umaisaroh, Noor Asniza Murad, and Mudrik Alaydrus, "Transmissive dual-band polarization converter based on metal-only metasurface at V-band," 2025 12th International Conference on Electrical Engineering, Computer Science and Informatics (EECSI), 194-197, Semarang, Indonesia, 2025.
doi:10.1109/EECSI67060.2025.11290576
