Microwave Measurements of Complex Permittivity by a Cylindrical Dielectric Resonator in a Closed Metal Cavity - A Further Analysis
By
Jyh Sheen,

    Professor Jyh Sheen

    Department of Electronic Engineering

    National Formosa University

    Taiwan

    Homepage

Zuo-Wen Hong

    Dr. Zuo-Wen Hong

    Department of Electronic Engineering

    National Formosa University

    Taiwan

    Homepage

Progress In Electromagnetics Research M, Vol. 140, 66-73, 2026
doi:10.2528/PIERM26072604 | Google Scholar

Abstract

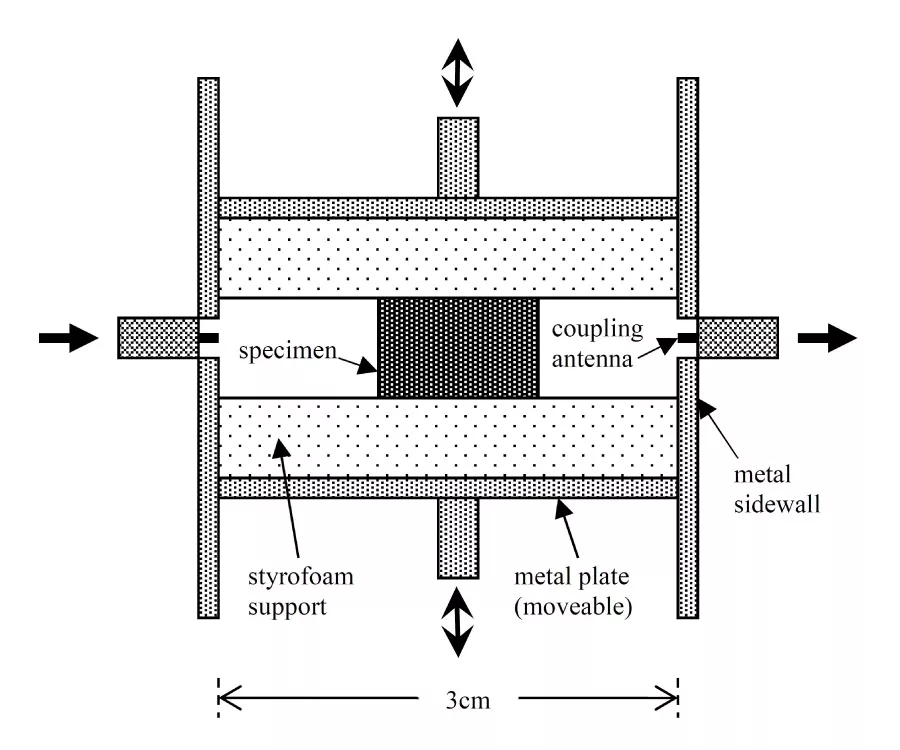

This paper describes various aspects of the analysis of a technique for measuring the dielectric constant and loss tangent using a cylindrical dielectric resonator in a closed metal cavity. The resonator's TE01δ resonant mode mode was selected as the measurement target. The clear electric and magnetic field patterns inside the dielectric resonator are provided from a theory derived by improving a very simple field model. Resonant frequencies under different dielectric constants are studied. All the possible sources of the conducting dissipation are investigated to improve the accuracy of the loss tangent measurement. The influence of the energy storage factor on the calculation of loss tangent measurement is investigated, too. This cavity is also used for measuring complex permittivity over a sweeping frequency range, and the accuracy as well as the limitations of its swept-frequency capability are discussed. The improved field model is compared with the primitive one through experimental measurements.
