Abstract

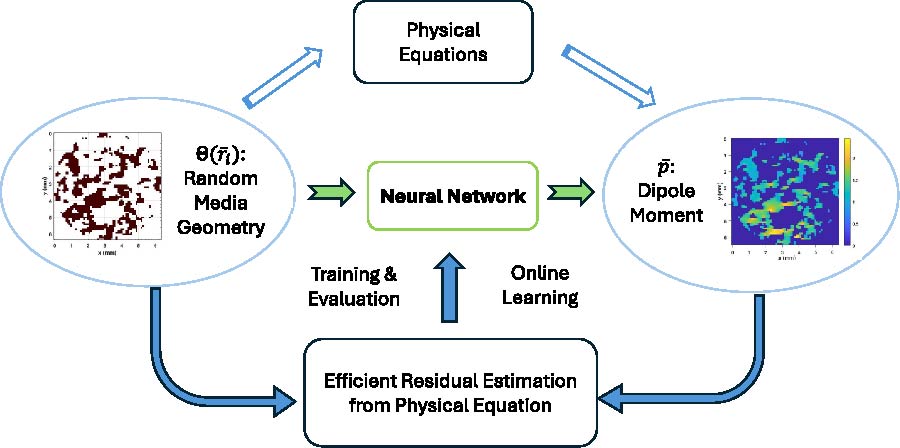

In this paper, a novel framework is proposed which combines physical scattering models with artificial neural networks (ANN) to solve electromagnetic scattering problems of random media through a volume integral equation formulation. The framework is applied to a snow scattering problem where snow is represented by a bicontinuous random medium. A neural network is constructed linking the random media structure to the induced dipole moments on the media. The volume integral equation (VIE) serves as a natural physical constraint on the network input-out relations and is used to guide the training of the network. A discrete dipole approximation (DDA) strategy is adopted to convert the VIE into matrix equations which also defines the loss function of the surrogate neural network. For addressing deterministic scattering problems, this represents a viable alternative to traditional iterative algorithms, providing comparable accuracy at the expense of reduced efficiency. In solving statistical scattering problems, neural networks with physics-informed loss function achieve accuracy comparable to that of data-driven models while significantly reducing the dependency on extensive precomputed training datasets. The physics-based loss function also allows the network to self-diagnose the prediction accuracy in real operations. This work demonstrates a novel strategy to effectively merge physical equations with artificial neural networks, and the idea can be inspiring to many relevant fields, especially when randomness effects are exhibited through a complicated nonlinear system.

1. Ishimaru, Akira, Wave Propagation and Scattering in Random Media, Vol. 2, Vol. 1, Academic Press, New York, 1978.
doi:10.1109/9780470547045

2. Tsang, L., J. A. Kong, and R. T. Shin, Theory of Microwave Remote Sensing, Wiley Interscience, New York, 1985.
doi:10.1029/jb084ib10p05669

3. Tsang, L., J. A. Kong, and K.-H. Ding, Scattering of Electromagnetic Waves, Vol. 1, Wiley Interscience, New York, 2000.
doi:10.1002/0471224286

4. Tsang, L., J. A. Kong, K.-H. Ding, and C. O. Ao, Scattering of Electromagnetic Waves, Vol. 2, Wiley-Interscience, New York, 2001.
doi:10.1002/0471224308

5. Tang, L. and J. A. Kong, Scattering of Electromagnetic Waves, Vol. 3, Wiley-Interscience, New York, 2001.
doi:10.1002/0471224278

6. Shi, Jiancheng, Chuan Xiong, and Lingmei Jiang, "Review of snow water equivalent microwave remote sensing," Science China Earth Sciences, Vol. 59, 731-745, 2016.
doi:10.1007/s11430-015-5225-0

7. Ding, Kung-Hau, Xiaolan Xu, and Leung Tsang, "Electromagnetic scattering by bicontinuous random microstructures with discrete permittivities," IEEE Transactions on Geoscience and Remote Sensing, Vol. 48, No. 8, 3139-3151, Aug. 2010.
doi:10.1109/tgrs.2010.2043953

8. Saad, Y., Iterative Methods for Sparse Linear Systems, PWS Publishing Company, Boston, 1996.
doi:10.1137/1.9780898718003

9. Saad, Youcef and Martin H. Schultz, "GMRES: A generalized minimal residual algorithm for solving nonsymmetric linear systems," SIAM Journal on Scientific and Statistical Computing, Vol. 7, No. 3, 856-869, 1986.
doi:10.1137/0907058

10. Xue, Bo-Wen, Rui Guo, Mao-Kun Li, Sheng Sun, and Xiao-Min Pan, "Deep-learning-equipped iterative solution of electromagnetic scattering from dielectric objects," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 7, 5954-5966, 2023.
doi:10.1109/tap.2023.3264701

11. Ma, Zhenchao, Kuiwen Xu, Rencheng Song, Chao-Fu Wang, and Xudong Chen, "Learning-based fast electromagnetic scattering solver through generative adversarial network," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 4, 2194-2208, 2021.
doi:10.1109/tap.2020.3026447

12. Abdelrahman, Mohamed A., Ankush Gupta, and Wael A. Deabes, "A feature-based solution to forward problem in electrical capacitance tomography of conductive materials," IEEE Transactions on Instrumentation and Measurement, Vol. 60, No. 2, 430-441, Feb. 2011.
doi:10.1109/tim.2010.2049224

13. Caorsi, S. and P. Gamba, "Electromagnetic detection of dielectric cylinders by a neural network approach," IEEE Transactions on Geoscience and Remote Sensing, Vol. 37, No. 2, 820-827, Mar. 1999.
doi:10.1109/36.752198

14. Bermani, E., S. Caorsi, A. Massa, and M. Raffetto, "On the training patterns of a neural network for target localization in the spatial domain," Microwave and Optical Technology Letters, Vol. 28, No. 3, 207-209, 2001.
doi:10.1002/1098-2760(20010205)28:3<207::aid-mop17>3.0.co;2-7

15. Raissi, Maziar and George Em Karniadakis, "Hidden physics models: Machine learning of nonlinear partial differential equations," Journal of Computational Physics, Vol. 357, 125-141, 2018.
doi:10.1016/j.jcp.2017.11.039

16. Raissi, M., P. Perdikaris, and G. E. Karniadakis, "Physics-informed neural networks: A deep learning framework for solving forward and inverse problems involving nonlinear partial differential equations," Journal of Computational Physics, Vol. 378, 686-707, 2019.
doi:10.1016/j.jcp.2018.10.045

17. Jin, Lei, Jialei Xie, Baicao Pan, and Guoqing Luo, "Generalized phase retrieval model based on physics-inspired network for holographic metasurface (Invited Paper)," Progress In Electromagnetics Research, Vol. 178, 103-110, 2023.
doi:10.1117/12.3023658

18. Zhang, Pan, Yanyan Hu, Yuchen Jin, Shaogui Deng, Xuqing Wu, and Jiefu Chen, "A Maxwell's equations based deep learning method for time domain electromagnetic simulations," IEEE Journal on Multiscale and Multiphysics Computational Techniques, Vol. 6, 35-40, 2021.
doi:10.1109/wmcs49442.2020.9172407

19. Son, Seho, Hyunseung Lee, Dayeon Jeong, Ki-Yong Oh, and Kyung Ho Sun, "A novel physics-informed neural network for modeling electromagnetism of a permanent magnet synchronous motor," Advanced Engineering Informatics, Vol. 57, 102035, 2023.
doi:10.1016/j.aei.2023.102035

20. Zhang, Jun-Bo, Da-Miao Yu, and Xiao-Min Pan, "Physics-informed neural networks for the solution of electromagnetic scattering by integral equations," 2022 International Applied Computational Electromagnetics Society Symposium (ACES-China), 1-2, Xuzhou, China, 2022.
doi:10.1109/aces-china56081.2022.10065316

21. Bai, Xuyang and Shurun Tan, "Layered soil remote sensing with multichannel passive microwave observations using a physics-embedded artificial intelligence framework: A theoretical study," IEEE Transactions on Geoscience and Remote Sensing, Vol. 61, 1-12, 2023.
doi:10.1109/tgrs.2023.3327781

22. Xu, Xiaolan, Leung Tsang, and Simon Yueh, "Electromagnetic models of co/cross polarization of bicontinuous/DMRT in radar remote sensing of terrestrial snow at X- and Ku-band for CoReH2O and SCLP applications," IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, Vol. 5, No. 3, 1024-1032, Jun. 2012.
doi:10.1109/jstars.2012.2190719

23. Tsang, Leung, Jin Pan, Ding Liang, Zhongxin Li, Donald W. Cline, and Yunhua Tan, "Modeling active microwave remote sensing of snow using dense media radiative transfer (DMRT) theory with multiple-scattering effects," IEEE Transactions on Geoscience and Remote Sensing, Vol. 45, No. 4, 990-1004, Apr. 2007.
doi:10.1109/tgrs.2006.888854

24. Tan, Shurun, Wenmo Chang, Leung Tsang, Juha Lemmetyinen, and Martin Proksch, "Modeling both active and passive microwave remote sensing of snow using dense media radiative transfer (DMRT) theory with multiple scattering and backscattering enhancement," IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, Vol. 8, No. 9, 4418-4430, Sep. 2015.
doi:10.1109/jstars.2015.2469290

25. Nocedal, Jorge and Stephen J. Wright, Numerical Optimization, Springer, 1999.
doi:10.1137/0801023

Dr. Jiayi Du

Mr. Yuanhao Cao

Mr. Chunzeng Luo

Dr. Gaoang Wang

Professor Shurun Tan
