Abstract

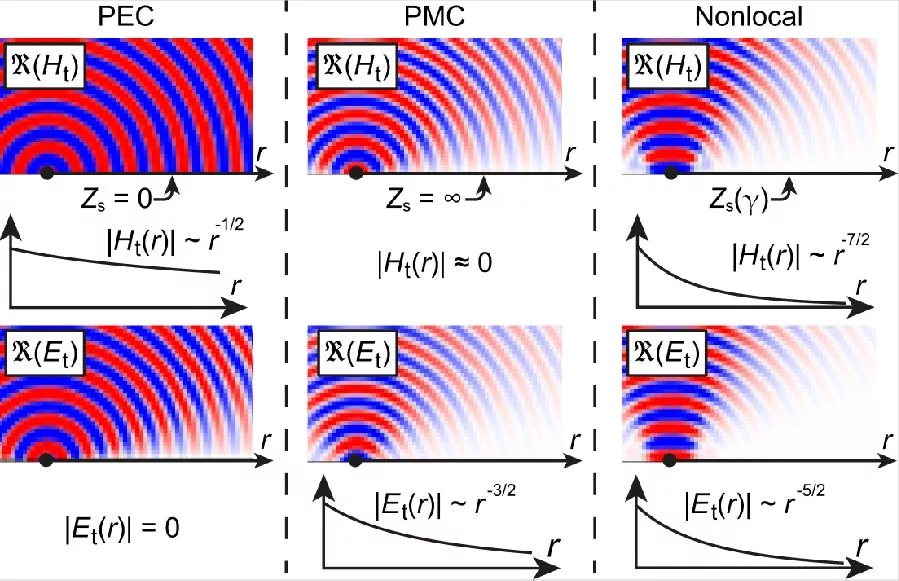

Investigations into the nature of electromagnetic fields produced by dipole sources over homogeneous flat ground or impedance surfaces date back many years. In general, at a long distance r from the source, the near-surface field is mostly contributed by the geometrical optics term (describing the radiation pattern), a guided wave, and the higher-order reactive contribution referred to as the Norton wave. In the special case of a perfect magnetic conductor interface, the first two terms vanish, so the residual Norton wave determines the steepest achievable field decay profile of r^-3/2 (for a two-dimensional horizontal magnetic dipole). In this letter, we reveal that in the presence of a nonlocal metasurface described by the second-order impedance boundary condition, the field decay can be further accelerated by suppressing the Norton wave (approaching the profiles r^-5/2 and r^-7/2 for electric and magnetic fields, respectively). In a proposed practical realization of a nonlocal metasurface, the effect is numerically verified and shown to reduce the edge diffraction effects by 10 dB for the shield diameter of only one wavelength, paving the way toward compact antenna systems.

1. Zenneck, J., "Über die Fortpflanzung ebener elektromagnetischer Wellen längs einer ebenen Leiterfläche und ihre Beziehung zur drahtlosen Telegraphie," Annalen der Physik, Vol. 328, No. 10, 846-866, 1907.
doi:10.1002/andp.19073281003 Google Scholar

2. Sommerfeld, A., "Über die Ausbreitung der Wellen in der drahtlosen Telegraphie," Annalen der Physik, Vol. 333, No. 4, 665-736, 1909.
doi:10.1002/andp.19093330402 Google Scholar

3. Norton, K. A., "The propagation of radio waves over the surface of the earth and in the upper atmosphere," Proceedings of the Institute of Radio Engineers, Vol. 24, No. 10, 1367-1387, 1936.
doi:10.1109/JRPROC.1936.227360 Google Scholar

4. Lalanne, P., J. P. Hugonin, and J. C. Rodier, "Theory of surface plasmon generation at nanoslit apertures," Physical Review Letters, Vol. 95, No. 26, 263902, 2005.
doi:10.1103/physrevlett.95.263902 Google Scholar

5. Nikitin, A. Yu, Sergio G. Rodrigo, F. J. García-Vidal, and L. Martín-Moreno, "In the diffraction shadow: Norton waves versus surface plasmon polaritons in the optical region," New Journal of Physics, Vol. 11, No. 12, 123020, Dec. 2009.
doi:10.1088/1367-2630/11/12/123020 Google Scholar

6. Glybovski, Stanislav B., Sergei A. Tretyakov, Pavel A. Belov, Yuri S. Kivshar, and Constantin R. Simovski, "Metasurfaces: From microwaves to visible," Physics Reports, Vol. 634, 1-72, 2016.
doi:10.1016/j.physrep.2016.04.004 Google Scholar

7. Kildal, P.-S., "Artificially soft and hard surfaces in electromagnetics," IEEE Transactions on Antennas and Propagation, Vol. 38, No. 10, 1537-1544, 1990.
doi:10.1109/8.59765 Google Scholar

8. Sievenpiper, D., Lijun Zhang, R. F. J. Broas, N. G. Alexopolous, and E. Yablonovitch, "High-impedance electromagnetic surfaces with a forbidden frequency band," IEEE Transactions on Microwave Theory and Techniques, Vol. 47, No. 11, 2059-2074, 1999.
doi:10.1109/22.798001 Google Scholar

9. Wait, James R., "Excitation of surface waves on conducting, stratified, dielectric-clad, and corrugated surfaces," Journal of Research of the National Bureau of Standards, Vol. 59, No. 6, 365-377, 1957.
doi:10.6028/jres.059.040 Google Scholar

10. Tatarnikov, Dmitry, Vladimir Filippov, Igor Soutiaguine, Andrey Astahov, Anton Stepanenko, and Pavel Shamatulsky, "Multipath mitigation by conventional antennas with ground planes and passive vertical structures," GPS Solutions, Vol. 9, No. 3, 194-201, 2005.
doi:10.1007/s10291-004-0127-1 Google Scholar

11. Baggen, Rens, Marta Martinez-Vazquez, Jens Leiss, Sybille Holzwarth, Luca Salghetti Drioli, and Peter de Maagt, "Low profile GALILEO antenna using EBG technology," IEEE Transactions on Antennas and Propagation, Vol. 56, No. 3, 667-674, 2008.
doi:10.1109/tap.2008.916927 Google Scholar

12. Scire-Scappuzzo, Francesca and Sergey N. Makarov, "A low-multipath wideband GPS antenna with cutoff or non-cutoff corrugated ground plane," IEEE Transactions on Antennas and Propagation, Vol. 57, No. 1, 33-46, 2009.
doi:10.1109/tap.2008.2009655 Google Scholar

13. Tatarnikov, Dmitry, Andrey Astakhov, and Anton Stepanenko, "Broadband convex impedance ground planes for multi-system GNSS reference station antennas," GPS Solutions, Vol. 15, No. 2, 101-108, 2011.
doi:10.1007/s10291-010-0172-x Google Scholar

14. Yang, Fan and Y. Rahmat-Samii, "Microstrip antennas integrated with electromagnetic band-gap (EBG) structures: A low mutual coupling design for array applications," IEEE Transactions on Antennas and Propagation, Vol. 51, No. 10, 2936-2946, 2003.
doi:10.1109/tap.2003.817983 Google Scholar

15. Simovski, Constantin, Composite Media with Weak Spatial Dispersion, Jenny Stanford Publishing, 2018.
doi:10.1201/9781351166249

16. Luukkonen, Olli, Constantin Simovski, GÉrard Granet, George Goussetis, Dmitri Lioubtchenko, Antti V. Raisanen, and Sergei A. Tretyakov, "Simple and accurate analytical model of planar grids and high-impedance surfaces comprising metal strips or patches," IEEE Transactions on Antennas and Propagation, Vol. 56, No. 6, 1624-1632, 2008.
doi:10.1109/tap.2008.923327 Google Scholar

17. Zhirihin, Dmitry, Constantin Simovski, Pavel Belov, and Stanislav Glybovski, "Mushroom high-impedance metasurfaces for perfect absorption at two angles of incidence," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 2626-2629, 2017.
doi:10.1109/lawp.2017.2736506 Google Scholar

18. Zhuravlev, Alexander, Yury Kurenkov, Xuchen Wang, Fedor Dushko, Viktor Zalipaev, and Stanislav Glybovski, "Radiation-pattern synthesis with uniform nonlocal metasurfaces," Physical Review Applied, Vol. 23, No. 4, 044052, Apr. 2025.
doi:10.1103/physrevapplied.23.044052 Google Scholar

19. Zhuravlev, Alexander, Sergei Kuznetsov, Daria Kiselkina, Amit Shaham, Ariel Epstein, and Stanislav Glybovski, "Wide-angle reflection suppression of dielectric slabs using nonlocal metasurface coatings," IEEE Transactions on Antennas and Propagation, 2026.
doi:10.1109/tap.2026.3680593 Google Scholar

20. Lindell, Ismo V., Valeri P. Akimov, and Esko Alanen, "Image theory for dipole excitation of fields above and below a wire grid with square cells," IEEE Transactions on Electromagnetic Compatibility, Vol. 28, No. 2, 107-110, 1986.
doi:10.1109/temc.1986.4307257 Google Scholar

21. Felsen, Leopold B. and Nathan Marcuvitz, Radiation and Scattering of Waves, Wiley, Hoboken, NJ, USA, Jan. 1994.
doi:10.1109/9780470546307

22. Maci, S. and A. Neto, "Green's function of an infinite slot printed between two homogeneous dielectrics --- Part II: Uniform asymptotic solution," IEEE Transactions on Antennas and Propagation, Vol. 52, No. 3, 666-676, 2004.
doi:10.1109/tap.2004.825500 Google Scholar

23. Maci, S., M. Caiazzo, A. Cucini, and M. Casaletti, "A pole-zero matching method for EBG surfaces composed of a dipole FSS printed on a grounded dielectric slab," IEEE Transactions on Antennas and Propagation, Vol. 53, No. 1, 70-81, 2005.
doi:10.1109/tap.2004.840520 Google Scholar

24. Rahmeier, João Guilherme Nizer, Tom J. Smy, Jordan Dugan, and Shulabh Gupta, "Zero thickness surface susceptibilities and extended GSTCs --- Part I: Spatially dispersive metasurfaces," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 7, 5909-5919, 2023.
doi:10.1109/tap.2022.3164169 Google Scholar

25. Dugan, Jordan, Tom J. Smy, Francesco Monticone, and Shulabh Gupta, "Surface susceptibility synthesis of spatially dispersive metasurfaces for space compression and spatial signal processing," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 8, 6572-6583, 2024.
doi:10.1109/tap.2024.3426072 Google Scholar

26. Tretyakov, Sergei, Analytical Modeling in Applied Electromagnetics, Artech House, 2003.

27. Silveirinha, MÁrio G., Carlos A. Fernandes, and Jorge R. Costa, "Electromagnetic characterization of textured surfaces formed by metallic pins," IEEE Transactions on Antennas and Propagation, Vol. 56, No. 2, 405-415, 2008.
doi:10.1109/tap.2007.915442 Google Scholar

28. Maslovski, Stanislav I., Tiago A. Morgado, Mário G. Silveirinha, Chandra S. R. Kaipa, and Alexander B. Yakovlev, "Generalized additional boundary conditions for wire media," New Journal of Physics, Vol. 12, No. 11, 113047, 2010.
doi:10.1088/1367-2630/12/11/113047 Google Scholar

29. Kaipa, Chandra S. R., Alexander B. Yakovlev, Stanislav I. Maslovski, and Màrio G. Silveirinha, "Mushroom-type high-impedance surface with loaded vias: Homogenization model and ultra-thin design," IEEE Antennas and Wireless Propagation Letters, Vol. 10, 1503-1506, 2011.
doi:10.1109/lawp.2011.2180694 Google Scholar

30. Collin, R. E., Field Theory of Guided Waves, IEEE Press, 1990.
doi:10.1109/9780470544648

31. Pfeiffer, Carl and Anthony Grbic, "Bianisotropic metasurfaces for optimal polarization control: Analysis and synthesis," Physical Review Applied, Vol. 2, No. 4, 044011, Oct. 2014.
doi:10.1103/physrevapplied.2.044011 Google Scholar

32. Xu, Gengyu, Sean Victor Hum, and George V. Eleftheriades, "Dual-band reflective metagratings with interleaved meta-wires," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 4, 2181-2193, 2021.
doi:10.1109/tap.2020.3026901 Google Scholar
