Abstract

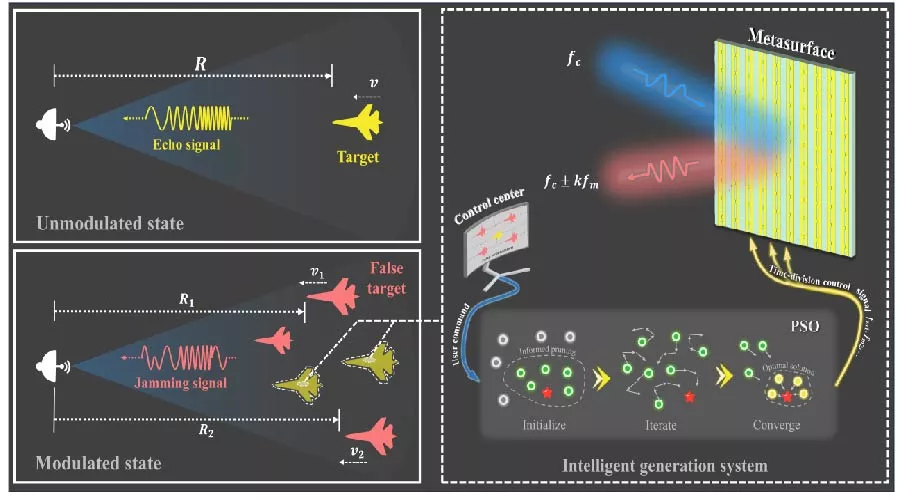

Time-modulated metasurfaces (TMMs) enable low-observable and reconfigurable radar deception, but existing approaches remain limited in synthesizing complex range-velocity (R-V) false-target clusters because of forward-designed modulation schemes and single-platform operation. This paper presents a task-oriented framework for multidimensional false-target synthesis against frequency-modulated continuous-wave (FMCW) radars. An analytical model explicitly connects TMM temporal modulation with the FMCW R-V estimation chain. Intra-frame modulation reshapes the echo spectrum to generate programmable range offsets, while inter-frame control modifies the slow-time response to generate programmable velocity offsets. The modulation-sequence design is then formulated as a combinatorial inverse-design problem and solved using Physics-Informed Initialization-Assisted Particle Swarm Optimization (PIIA-PSO), which exploits analytical R-V relations to construct a physically informative initial population, thereby reducing ineffective early-stage exploration and improving convergence efficiency toward high-quality realizable solutions. The framework is further extended to distributed multi-platform cooperation to increase spatial degrees of freedom and enable coherent energy aggregation. Results show range and velocity errors below 10% for single-platform synthesis and improve the overall SSIM by 7-10 percentage points under distributed configurations, demonstrating enhanced synthesis fidelity, flexibility, and scalability.

1. Zheng, Le, Marco Lops, Yonina C. Eldar, and Xiaodong Wang, "Radar and communication coexistence: An overview: A review of recent methods," IEEE Signal Processing Magazine, Vol. 36, No. 5, 85-99, 2019.
doi:10.1109/msp.2019.2907329 Google Scholar

2. Cumming, I. G. and F. H. Wong, Digital Processing of Synthetic Aperture Radar Data, Artech House, 2005.

3. Moreira, Alberto, Pau Prats-Iraola, Marwan Younis, Gerhard Krieger, Irena Hajnsek, and Konstantinos P. Papathanassiou, "A tutorial on synthetic aperture radar," IEEE Geoscience and Remote Sensing Magazine, Vol. 1, No. 1, 6-43, 2013.
doi:10.1109/mgrs.2013.2248301 Google Scholar

4. Li, Neng-Jing and Yi-Ting Zhang, "A survey of radar ECM and ECCM," IEEE Transactions on Aerospace and Electronic Systems, Vol. 31, No. 3, 1110-1120, 1995.
doi:10.1109/7.395232 Google Scholar

5. Zhou, Feng, Bo Zhao, Mingliang Tao, Xueru Bai, Bo Chen, and Guangcai Sun, "A large scene deceptive jamming method for space-borne SAR," IEEE Transactions on Geoscience and Remote Sensing, Vol. 51, No. 8, 4486-4495, 2013.
doi:10.1109/tgrs.2013.2259178 Google Scholar

6. Feng, DeJun, HuaMin Tao, Yong Yang, and Zhong Liu, "Jamming de-chirping radar using interrupted-sampling repeater," Science China Information Sciences, Vol. 54, No. 10, 2138-2146, 2011.
doi:10.1007/s11432-011-4431-4 Google Scholar

7. Wang, Xiaoyi and Christophe Caloz, "Spread-spectrum selective camouflaging based on time-modulated metasurface," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 1, 286-295, Jan. 2021.
doi:10.1109/tap.2020.3008621 Google Scholar

8. Zhu, Yiqi, Zhiming Xu, Xiaofeng Ai, Qihua Wu, and Feng Zhao, "Micro-Doppler modulation of space target based on passive interrupted sampling," IEEE Sensors Journal, Vol. 24, No. 11, 18141-18153, 2024.
doi:10.1109/jsen.2024.3390801 Google Scholar

9. Gan, Lin, Jianbing Li, Kunlong Yang, and Xuesong Wang, "Research on the motion and scattering characteristics of intermittent long chaff," Chinese Journal of Radio Science, Vol. 38, No. 1, 114-122, 2023.
doi:10.12265/j.cjors.2022005 Google Scholar

10. Su, Nanchi, Fan Liu, and Christos Masouros, "Secure radar-communication systems with malicious targets: Integrating radar, communications and jamming functionalities," IEEE Transactions on Wireless Communications, Vol. 20, No. 1, 83-95, 2021.
doi:10.1109/twc.2020.3023164 Google Scholar

11. Pendry, J. B., D. Schurig, and D. R. Smith, "Controlling electromagnetic fields," Science, Vol. 312, No. 5781, 1780-1782, 2006.
doi:10.1126/science.1125907 Google Scholar

12. Yu, Nanfang, Patrice Genevet, Mikhail A. Kats, Francesco Aieta, Jean-Philippe Tetienne, Federico Capasso, and Zeno Gaburro, "Light propagation with phase discontinuities: Generalized laws of reflection and refraction," Science, Vol. 334, No. 6054, 333-337, 2011.
doi:10.1126/science.1210713 Google Scholar

13. Cui, Tie Jun, Mei Qing Qi, Xiang Wan, Jie Zhao, and Qiang Cheng, "Coding metamaterials, digital metamaterials and programmable metamaterials," Light: Science & Applications, Vol. 3, No. 10, e218, 2014.
doi:10.1038/lsa.2014.99 Google Scholar

14. Schurig, D., J. J. Mock, B. J. Justice, S. A. Cummer, J. B. Pendry, A. F. Starr, and D. R. Smith, "Metamaterial electromagnetic cloak at microwave frequencies," Science, Vol. 314, No. 5801, 977-980, 2006.
doi:10.1126/science.1133628 Google Scholar

15. Chen, Hongsheng, Bae-Ian Wu, Baile Zhang, and Jin Au Kong, "Electromagnetic wave interactions with a metamaterial cloak," Physical Review Letters, Vol. 99, No. 6, 063903, 2007.
doi:10.1103/physrevlett.99.063903 Google Scholar

16. Zou, Yukun, Xiangkun Kong, Lei Xing, Shunliu Jiang, Xuemeng Wang, He Wang, Zhiming Liu, Yongjiu Zhao, and Jens Bornemann, "A slot antenna array with reconfigurable RCS using liquid absorber," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 7, 6095-6100, 2022.
doi:10.1109/tap.2021.3138525 Google Scholar

17. Su, Jianxun, Yao Lu, Jiayi Liu, Yaoqing Yang, Zengrui Li, and Jiming Song, "A novel checkerboard metasurface based on optimized multielement phase cancellation for superwideband RCS reduction," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 12, 7091-7099, 2018.
doi:10.1109/tap.2018.2870372 Google Scholar

18. Li, Weihan, Qian Ma, Che Liu, Yunfeng Zhang, Xianning Wu, Jiawei Wang, Shizhao Gao, Tianshuo Qiu, Tonghao Liu, Qiang Xiao, Jiaxuan Wei, Ting Ting Gu, Zhize Zhou, Fashuai Li, Qiang Cheng, Lianlin Li, Wenxuan Tang, and Tie Jun Cui, "Intelligent metasurface system for automatic tracking of moving targets and wireless communications based on computer vision," Nature Communications, Vol. 14, No. 1, 989, 2023.
doi:10.1038/s41467-023-36645-3 Google Scholar

19. Lu, Huan, Jiwei Zhao, Bin Zheng, Chao Qian, Tong Cai, Erping Li, and Hongsheng Chen, "Eye accommodation-inspired neuro-metasurface focusing," Nature Communications, Vol. 14, No. 1, 3301, 2023.
doi:10.1038/s41467-023-39070-8 Google Scholar

20. Qian, Chao, Bin Zheng, Yichen Shen, Li Jing, Erping Li, Lian Shen, and Hongsheng Chen, "Deep-learning-enabled self-adaptive microwave cloak without human intervention," Nature Photonics, Vol. 14, No. 6, 383-390, 2020.
doi:10.1038/s41566-020-0604-2 Google Scholar

21. Huang, Min, Bin Zheng, Ruichen Li, Lian Shen, Xiaofeng Li, Huan Lu, Rongrong Zhu, Tong Cai, and Hongsheng Chen, "Evolutionary games-assisted synchronization metasurface for simultaneous multisource invisibility cloaking," Advanced Functional Materials, Vol. 34, No. 36, 2401909, 2024.
doi:10.1002/adfm.202401909 Google Scholar

22. Wang, Zhedong, Chao Qian, Pujing Lin, Bin Zheng, Gyeongtae Kim, Jaebum Noh, Erping Li, Junsuk Rho, and Hongsheng Chen, "3D intelligent cloaked vehicle equipped with thousand-level reconfigurable full-polarization metasurfaces," Advanced Materials, Vol. 36, No. 31, 2400797, 2024.
doi:10.1002/adma.202400797 Google Scholar

23. Zhao, Jiwei, Peixuan Zhu, Zhibin Wen, Fanyi Tang, Bin Zheng, Rongrong Zhu, Haoliang Qian, Chao Qian, Huan Lu, and Hongsheng Chen, "Adaptive transparent cloaking tunnel enabled by meta-reinforcement-learning metasurfaces," PhotoniX, Vol. 7, No. 1, 2, 2026.
doi:10.1186/s43074-025-00224-0 Google Scholar

24. Sun, Yingjian, Chun Wang, Honglin Yuan, Weibin Sun, Xujin Yuan, Ming Jin, Qian Wang, and Mingji Chen, "Electromagnetic metasurface with object information and position illusion in radar vision at microwave frequencies," Advanced Optical Materials, Vol. 11, No. 17, 2300318, 2023.
doi:10.1002/adom.202300318 Google Scholar

25. Sun, Guang, Junjie Wang, Shiqi Xing, Datong Huang, Dejun Feng, and Xuesong Wang, "A flexible conformal multifunctional time-modulated metasurface for radar characteristics manipulation," IEEE Transactions on Microwave Theory and Techniques, Vol. 72, No. 7, 4294-4308, Jul. 2024.
doi:10.1109/tmtt.2023.3337646 Google Scholar

26. Jia, Yuetian, Chao Qian, Zhixiang Fan, Yinzhang Ding, Zhedong Wang, Dengpan Wang, Er-Ping Li, Bin Zheng, Tong Cai, and Hongsheng Chen, "In situ customized illusion enabled by global metasurface reconstruction," Advanced Functional Materials, Vol. 32, No. 19, 2109331, 2022.
doi:10.1002/adfm.202109331 Google Scholar

27. Li, Haoran, Kang Luo, Din Ping Tsai, Yulang Li, Linyuan Dou, Shuqiao Li, Tao He, Yuancheng Fan, Mu Ku Chen, Zhanshan Wang, Yuzhi Shi, Zeyong Wei, and Xinbin Cheng, "Broadband, wide-angle, and versatile metasurface illusions with inverse synthetic aperture radar imaging," Advanced Science, Vol. 12, No. 18, 2416172, 2025.
doi:10.1002/advs.202416172 Google Scholar

28. Zhu, Peixuan, Huan Lu, Haoran Han, Rongrong Zhu, Wei Zhou, Shiqi Zhu, Bin Zheng, and Hongsheng Chen, "An optically transparent transmissive metasurface for user-defined broadband electromagnetic illusion generation," Small Structures, Vol. 6, No. 12, e202500351, 2025.
doi:10.1002/sstr.202500351 Google Scholar

29. Citroni, Rocco, Franco Di Paolo, and Patrizia Livreri, "Progress in THz rectifier technology: Research and perspectives," Nanomaterials, Vol. 12, No. 14, 2479, 2022.
doi:10.3390/nano12142479 Google Scholar

30. Han, Haoran, Jiwei Zhao, Huan Lu, Yongqiang Liu, Bin Zheng, Rongrong Zhu, and Hongsheng Chen, "Deep learning-enabled temporal sequencing of metasurface for rewritable and customizable electromagnetic illusions," National Science Review, Vol. 13, No. 11, nwag263, 2026.
doi:10.1093/nsr/nwag263 Google Scholar

31. Zhao, Jie, Xi Yang, Jun Yan Dai, Qiang Cheng, Xiang Li, Ning Hua Qi, Jun Chen Ke, Guo Dong Bai, Shuo Liu, Shi Jin, Andrea Alù, and Tie Jun Cui, "Programmable time-domain digital-coding metasurface for non-linear harmonic manipulation and new wireless communication systems," National Science Review, Vol. 6, No. 2, 231-238, 2019.
doi:10.1093/nsr/nwy135 Google Scholar

32. Zhang, Lei, Xiao Qing Chen, Shuo Liu, Qian Zhang, Jie Zhao, Jun Yan Dai, Guo Dong Bai, Xiang Wan, Qiang Cheng, Giuseppe Castaldi, Vincenzo Galdi, and Tie Jun Cui, "Space-time-coding digital metasurfaces," Nature Communications, Vol. 9, No. 1, 4334, 2018.
doi:10.1038/s41467-018-06802-0 Google Scholar

33. Ramaccia, Davide, Dimitrios L. Sounas, Andrea Alù, Alessandro Toscano, and Filiberto Bilotti, "Phase-induced frequency conversion and Doppler effect with time-modulated metasurfaces," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 3, 1607-1617, 2020.
doi:10.1109/tap.2019.2952469 Google Scholar

34. Zhang, Xin Ge, Ya Lun Sun, Qian Yu, Qiang Cheng, Wei Xiang Jiang, Cheng-Wei Qiu, and Tie Jun Cui, "Smart Doppler cloak operating in broad band and full polarizations," Advanced Materials, Vol. 33, No. 17, 2007966, 2021.
doi:10.1002/adma.202007966 Google Scholar

35. Zhou, Wei, Shiqi Zhu, Zexi Zhang, Rongrong Zhu, Bin Chen, Jiwei Zhao, Xin Wei, Huan Lu, and Bin Zheng, "Time-varying metasurface driven broadband radar jamming and deceptions," Optics Express, Vol. 32, No. 10, 17911-17921, 2024.
doi:10.1364/oe.521602 Google Scholar

36. Wang, Si Ran, Geng-Bo Wu, Wei Liu, Shao Nan Chen, Zhen Jie Qi, Jun Wei Zhang, Li Jie Wu, Xinxin Gao, Zheng Xing Wang, Jun Yan Dai, Qiang Cheng, and Tie Jun Cui, "Multi-domain manipulations of multi-frequency waves based on asynchronous space-time-coding digital metasurface," Laser & Photonics Reviews, Vol. 19, No. 14, 2500184, 2025.
doi:10.1002/lpor.202500184 Google Scholar

37. Liu, Guikun, Honglin Li, Feng Ming, Liang Li, Jingwen Mou, Chen Song, Zhengshuai Li, and Peng Wang, "A novel jamming method based on micro-Doppler modulation and electromagnetic meta-materials," IET Radar, Sonar & Navigation, Vol. 19, No. 1, e70052, 2025.
doi:10.1049/rsn2.70052 Google Scholar

38. Zhu, Yonggeng, Xinyu Fang, Mengmeng Li, Jihong Gu, Davide Ramaccia, Alessandro Toscano, Filiberto Bilotti, and Dazhi Ding, "Scattering center model guided joint fast-and-slow time modulation: Theoretical foundations and multi-radar-characteristics spoofing," IEEE Transactions on Antennas and Propagation, Vol. 74, No. 1, 1275-1280, 2026.
doi:10.1109/tap.2025.3623293 Google Scholar

39. Mu, Huilin, Chang Ding, Chunsheng Guan, Yun Zhang, Tong Cai, Fanyi Meng, and Jiafu Wang, "Subsection-shift-Doppler-frequency jamming based on phase-tunable metasurface against SAR imaging," IEEE Transactions on Geoscience and Remote Sensing, Vol. 62, 1-15, 2024.
doi:10.1109/tgrs.2024.3461959 Google Scholar

40. Xu, Heng, Yinghui Quan, Xiaoyang Zhou, Hui Chen, and Tie Jun Cui, "A novel approach for radar passive jamming based on multiphase coding rapid modulation," IEEE Transactions on Geoscience and Remote Sensing, Vol. 61, 1-14, 2023.
doi:10.1109/tgrs.2023.3243411 Google Scholar

41. Gan, Lin, Zehao Wu, and Jianbing Li, "A passive ISAR jamming method based on time-modulated corner reflectors under asynchronous control," IEEE Transactions on Aerospace and Electronic Systems, Vol. 61, No. 5, 11103-11115, 2025.
doi:10.1109/taes.2025.3556413 Google Scholar

42. Wang, Junjie, Dejun Feng, Letao Xu, and Weidong Hu, "Synthetic aperture radar image modulation using phase-switched screen," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 5, 911-915, 2018.
doi:10.1109/lawp.2018.2823079 Google Scholar

43. Ding, Chang, Huilin Mu, Yueyu Meng, Mengxiao Zhao, Yun Zhang, Tong Cai, Fanyi Meng, and Jiafu Wang, "Time-modulated metasurface-assisted moving target jamming for synthetic aperture radar," IEEE Transactions on Microwave Theory and Techniques, Vol. 73, No. 7, 4191-4203, Jul. 2025.
doi:10.1109/tmtt.2024.3522571 Google Scholar

44. Sun, Zongzheng, Lei Zhang, Xiao Qing Chen, Hong Xu, Guoyao Xiao, Yi Ning Zheng, Yaojun Wu, Zhixing Liu, Haosheng Fu, Xiaoyang Zhou, Zhanye Chen, Hui Chen, Yinghui Quan, and Tie Jun Cui, "Anti-radar based on metasurface," Nature Communications, Vol. 16, No. 1, 7258, 2025.
doi:10.1038/s41467-025-62633-w Google Scholar

45. Yu, Zhenjie, Moxin Li, Zhenyu Xing, Hao Gao, Zeyang Liu, Shiliang Pu, Hui Mao, Hong Cai, Qiang Ma, Wenqi Ren, Jiang Zhu, and Cheng Zhang, "Genetic algorithm assisted meta-atom design for high-performance metasurface optics," Opto-Electronic Science, Vol. 3, No. 9, 240016, 2024.
doi:10.29026/oes.2024.240016 Google Scholar

46. Yu, Shijian, Dongfang Guan, Ziyang Gu, Jinxing Guo, Zhen Liu, and Yongxiang Liu, "Radar target complex high-resolution range profile modulation by external time coding metasurface," IEEE Transactions on Microwave Theory and Techniques, Vol. 72, No. 10, 6083-6093, 2024.
doi:10.1109/tmtt.2024.3385421 Google Scholar

47. Lu, Huan, Jiwei Zhao, Peixuan Zhu, Weijie Song, Shiqi Zhu, Rongrong Zhu, Bin Zheng, and Hongsheng Chen, "Neural network-assisted metasurface design for broadband remote invisibility," Advanced Functional Materials, Vol. 35, No. 45, 2506085, 2025.
doi:10.1002/adfm.202506085 Google Scholar

48. Wu, Bei, Chao Qian, Zhedong Wang, Pujing Lin, Erping Li, and Hongsheng Chen, "MetaSeeker: Sketching an open invisible space with self-play reinforcement learning," Light: Science & Applications, Vol. 14, No. 1, 211, 2025.
doi:10.1038/s41377-025-01876-0 Google Scholar

49. Chen, Yi, Jianming Liao, Hongyi Zhu, Jun Luo, Xiaoliang Ma, Cheng Huang, and Xiangang Luo, "Broadband spatio-temporal modulated metasurface for multifunctional radar camouflage," Laser & Photonics Reviews, Vol. 20, No. 4, e01607, 2026.
doi:10.1002/lpor.202501607 Google Scholar

50. Piotrowsky, Lukas, Timo Jaeschke, Simon Kueppers, Jan Siska, and Nils Pohl, "Enabling high accuracy distance measurements with FMCW radar sensors," IEEE Transactions on Microwave Theory and Techniques, Vol. 67, No. 12, 5360-5371, 2019.
doi:10.1109/tmtt.2019.2930504 Google Scholar

51. Wang, Zhou, A. C. Bovik, H. R. Sheikh, and E. P. Simoncelli, "Image quality assessment: From error visibility to structural similarity," IEEE Transactions on Image Processing, Vol. 13, No. 4, 600-612, 2004.
doi:10.1109/tip.2003.819861 Google Scholar

52. Marini, Federico and Beata Walczak, "Particle swarm optimization (PSO). A tutorial," Chemometrics and Intelligent Laboratory Systems, Vol. 149, 153-165, 2015.
doi:10.1016/j.chemolab.2015.08.020 Google Scholar
