Abstract

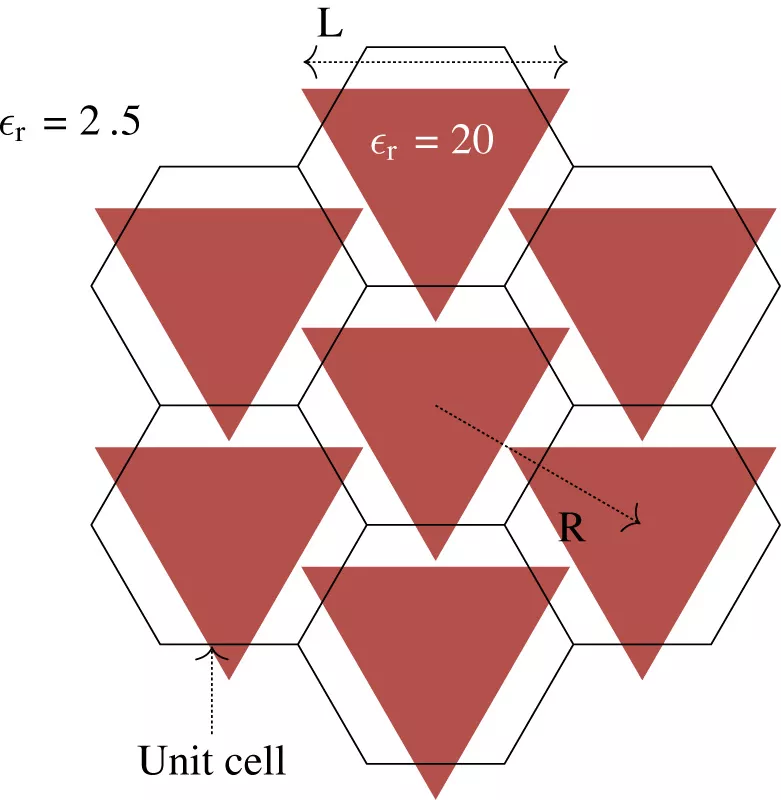

In this study, we developed a multilevel multiple scattering theory (ML-MST) for the numerical solutions of multiple scattering equations. We formulated multiple scattering theory using vector cylindrical waves (VCW) in the MST-VCW formulation and the translational addition theorem with exciting fields in VCW. A problem with this formulation is that neighboring scatterers can have overlapping circles. In this study, multiple scattering theory is formulated using the method of moments (MoM) in the MST-MoM formulation, with the exciting field in terms of MoM unknowns. The ML-MST is developed by separating the scattering from other scatterers into neighbor and non-neighbor contributions, resulting in 2-level interactions. We then replace the MST-VCW neighbor scattering with the corresponding MST-MoM neighbor scattering. The ML-MST eliminates the issues of overlapping circles of neighbors. We apply the ML-MST formulations to the problem of band diagrams of photonic crystals by summing the scattering from non-neighbors using broadband Green's functions (BBGF). The result is the multilevel Korringa-Kohn-Rostoker (KKR) equation. Numerical illustrations were performed for the 2D case. The accuracy of the solutions was validated by comparing {them} with COMSOL simulations. The CPU time of the ML-MST was more than two orders of magnitude lower than that of COMSOL.

1. Foldy, Leslie L., "The multiple scattering of waves. I. General theory of isotropic scattering by randomly distributed scatterers," Physical Review, Vol. 67, No. 3-4, 107-119, February 1945.
doi:10.1103/physrev.67.107 Google Scholar

2. Lax, Melvin, "Multiple scattering of waves," Reviews of Modern Physics, Vol. 23, No. 4, 287-310, October 1951.
doi:10.1103/revmodphys.23.287 Google Scholar

3. Korringa, J., "On the calculation of the energy of a Bloch wave in a metal," Physica, Vol. 13, No. 6-7, 392-400, August 1947.
doi:10.1016/0031-8914(47)90013-x Google Scholar

4. Tsang, Leung, Charles E. Mandt, and Kung Hau Ding, "Monte Carlo simulations of the extinction rate of dense media with randomly distributed dielectric spheres based on solution of Maxwell's equations," Optics Letters, Vol. 17, No. 5, 314-316, 1992.
doi:10.1364/ol.17.000314 Google Scholar

5. Tsang, Leung, Houfei Chen, Chung‐Chi Huang, and Vikram Jandhyala, "Modeling of multiple scattering among vias in planar waveguides using Foldy-Lax equations," Microwave and Optical Technology Letters, Vol. 31, No. 3, 201-208, September 2001.
doi:10.1002/mop.1398 Google Scholar

6. Tsang, L., J. A. Kong, K.-H. Ding, and C. O. Ao, Scattering of Electromagnetic Waves: Numerical Simulations, Wiley-Interscience, New York, 2001.

7. Jeong, Jongwoo, Leung Tsang, Weihui Gu, Andreas Colliander, and Simon H. Yueh, "Wave propagation in vegetation field by combining fast multiple scattering theory and numerical electromagnetics in a hybrid method," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 4, 3598-3610, April 2023.
doi:10.1109/tap.2023.3242418 Google Scholar

8. Liao, T.-H., R. Gao, Z. Huang, L. Tsang, and S. Tan, "Fast calculations of band diagrams of photonic crystals with dense scatterers using T-matrix extractions and multiple scattering theory with broadband Green's functions," Optics Express, Vol. 33, No. 13, 27079, 2025.
doi:10.1364/oe.562498 Google Scholar

9. Tsang, Leung, Zhenming Huang, and Jongwoo Jeong, "Fast hybrid multiple scattering theory for full-wave simulation of metasurface with substrate," npj Metamaterials, Vol. 1, 6, 2025.
doi:10.1038/s44455-025-00006-5 Google Scholar

10. Joannopoulos, J. D., S. G. Johnson, J. N. Winn, and R. D. Meade, Photonic Crystals: Molding the Flow of Light, Princeton University Press, Princeton, NJ, 2008.

11. Wang, Zheng, Y. D. Chong, John D. Joannopoulos, and Marin Soljačić, "Reflection-free one-way edge modes in a gyromagnetic photonic crystal," Physical Review Letters, Vol. 100, No. 1, 013905, January 2008.
doi:10.1103/physrevlett.100.013905 Google Scholar

12. Yang, Zhaoju, Fei Gao, Xihang Shi, Xiao Lin, Zhen Gao, Yidong Chong, and Baile Zhang, "Topological acoustics," Physical Review Letters, Vol. 114, No. 11, 114301, March 2015.
doi:10.1103/physrevlett.114.114301 Google Scholar

13. Xue, Haoran, Yahui Yang, Guigeng Liu, Fei Gao, Yidong Chong, and Baile Zhang, "Realization of an acoustic third-order topological insulator," Physical Review Letters, Vol. 122, No. 24, 244301, 2019.
doi:10.1103/physrevlett.122.244301 Google Scholar

14. Ho, K. M., C. T. Chan, and C. M. Soukoulis, "Existence of a photonic gap in periodic dielectric structures," Physical Review Letters, Vol. 65, No. 25, 3152-3155, December 1990.
doi:10.1103/physrevlett.65.3152 Google Scholar

15. Leung, K. M. and Y. F. Liu, "Full vector wave calculation of photonic band structures in face-centered-cubic dielectric media," Physical Review Letters, Vol. 65, No. 21, 2646-2649, November 1990.
doi:10.1103/physrevlett.65.2646 Google Scholar

16. Plihal, M. and A. A. Maradudin, "Photonic band structure of two-dimensional systems: The triangular lattice," Physical Review B, Vol. 44, No. 16, 8565-8571, October 1991.
doi:10.1103/physrevb.44.8565 Google Scholar

17. Fan, Shanhui, Pierre R. Villeneuve, and J. D. Joannopoulos, "Large omnidirectional band gaps in metallodielectric photonic crystals," Physical Review B, Vol. 54, 11245, 1996.
doi:10.1103/physrevb.54.11245 Google Scholar

18. Zhao, Ran, Guo-Da Xie, Menglin L. N. Chen, Zhihao Lan, Zhixiang Huang, and Wei E. I. Sha, "First-principle calculation of Chern number in gyrotropic photonic crystals," Optics Express, Vol. 28, No. 4, 4638, February 2020.
doi:10.1364/oe.380077 Google Scholar

19. Nicolet, André, Sébastien Guenneau, Christophe Geuzaine, and Frédéric Zolla, "Modelling of electromagnetic waves in periodic media with finite elements," Journal of Computational and Applied Mathematics, Vol. 168, No. 1-2, 321-329, 2004.
doi:10.1016/j.cam.2003.07.002 Google Scholar

20. Jin, J.-M., The Finite Element Method in Electromagnetics, 3rd Ed., Wiley-IEEE Press, Hoboken, NJ, 2014.

21. Liu, Zhengyou, C. T. Chan, Ping Sheng, A. L. Goertzen, and J. H. Page, "Elastic wave scattering by periodic structures of spherical objects: Theory and experiment," Physical Review B, Vol. 62, No. 4, 2446-2457, July 2000.
doi:10.1103/physrevb.62.2446 Google Scholar

22. Kohn, W. and N. Rostoker, "Solution of the Schrödinger equation in periodic lattices with an application to metallic lithium," Physical Review, Vol. 94, No. 5, 1111-1120, June 1954.
doi:10.1103/physrev.94.1111 Google Scholar

23. Leung, K. M. and Y. Qiu, "Multiple-scattering calculation of the two-dimensional photonic band structure," Physical Review B, Vol. 48, No. 11, 7767-7771, September 1993.
doi:10.1103/physrevb.48.7767 Google Scholar

24. Waterman, P. C., "Symmetry, unitarity, and geometry in electromagnetic scattering," Physical Review D, Vol. 3, No. 4, 825-839, February 1971.
doi:10.1103/physrevd.3.825 Google Scholar

25. Faulkner, J. S., G. M. Stocks, and Y. Wang, Multiple Scattering Theory: Electronic Structure of Solids, IOP Publishing, Bristol, UK, 2018.

26. Beutel, Dominik, Ivan Fernandez-Corbaton, and Carsten Rockstuhl, "Treams --- A T-matrix-based scattering code for nanophotonics," Computer Physics Communications, Vol. 297, 109076, 2024.
doi:10.1016/j.cpc.2023.109076 Google Scholar

27. Egel, Amos, Krzysztof M. Czajkowski, Dominik Theobald, Konstantin Ladutenko, Alexey S. Kuznetsov, and Lorenzo Pattelli, "SMUTHI: A python package for the simulation of light scattering by multiple particles near or between planar interfaces," Journal of Quantitative Spectroscopy and Radiative Transfer, Vol. 273, 107846, October 2021.
doi:10.1016/j.jqsrt.2021.107846 Google Scholar

28. Schebarchov, D., A. Fazel-Najafabadi, E. C. Le Ru, and B. Auguié, "Multiple scattering of light in nanoparticle assemblies: User guide for the terms program," Journal of Quantitative Spectroscopy and Radiative Transfer, Vol. 284, 108131, July 2022.
doi:10.1016/j.jqsrt.2022.108131 Google Scholar

29. Theobald, Dominik, Amos Egel, Guillaume Gomard, and Uli Lemmer, "Plane-wave coupling formalism for ????-matrix simulations of light scattering by nonspherical particles," Physical Review A, Vol. 96, 033822, September 2017.
doi:10.1103/PhysRevA.96.033822 Google Scholar

30. Schebarchov, D., E. C. Le Ru, J. Grand, and B. Auguié, "Mind the gap: Testing the Rayleigh hypothesis in T-matrix calculations with adjacent spheroids," Optics Express, Vol. 27, No. 24, 35750, November 2019.
doi:10.1364/oe.27.035750 Google Scholar

31. Tsang, Leung and Shurun Tan, "Calculations of band diagrams and low frequency dispersion relations of 2D periodic dielectric scatterers using broadband Green’s function with low wavenumber extraction (BBGFL)," Optics Express, Vol. 24, No. 2, 945, January 2016.
doi:10.1364/oe.24.000945 Google Scholar

32. Tan, Shurun and Leung Tsang, "Efficient broadband evaluations of lattice Green's functions via imaginary wavenumber components extractions," Progress In Electromagnetics Research, Vol. 164, 63-74, 2019.
doi:10.2528/pier18102001 Google Scholar

33. Gao, Ruoxing, Leung Tsang, Shurun Tan, and Tien-Hao Liao, "Band calculations using broadband Green's functions and the KKR method with applications to magneto-optics and photonic crystals," Journal of the Optical Society of America B, Vol. 37, No. 12, 3896-3907, 2020.
doi:10.1364/josab.400824 Google Scholar

34. Feng, Zhaoyang, Shurun Tan, Leung Tsang, and Erping Li, "Band characterization of topological photonic crystals using the broadband Green’s function technique," Optics Express, Vol. 28, No. 19, 27223, August 2020.
doi:10.1364/oe.400205 Google Scholar

35. Tsang, Leung, Tien-Hao Liao, and Shurun Tan, "Calculations of bands and band field solutions in topological acoustics using the broadband Green's function-KKR-multiple scattering method," Progress In Electromagnetics Research, Vol. 171, 137-158, 2021.
doi:10.2528/pier21081706 Google Scholar

36. Tsang, Leung, Tien-Hao Liao, Shurun Tan, Xiaolan Xu, Xuyang Bai, and Rouxing Gao, "Fast calculations of vector electromagnetics in 3D periodic structures based on multiple scattering theory and broadband Green's function," Progress In Electromagnetics Research, Vol. 179, 19-36, 2024.
doi:10.2528/pier23091003 Google Scholar

37. Gao, Ruoxing, Tien-Hao Liao, Leung Tsang, Shurun Tan, Xuyang Bai, and Haifeng Zheng, "Fast calculations of band diagrams of irregularly shaped scatterers in periodic structures using the multiple scattering theory and broadband Green’s function," Optics Express, Vol. 32, No. 24, 43553, November 2024.
doi:10.1364/oe.540320 Google Scholar

38. Harrington, Roger F., Field Computation by Moment Methods, Wiley-IEEE Press, 1993.
doi:10.1109/9780470544631

39. Peterson, Bo and Staffan Ström, "???? matrix for electromagnetic scattering from an arbitrary number of scatterers and representations of E(3)," Physical review D, Vol. 8, No. 10, 3661, 1973.
doi:10.1103/PhysRevD.8.3661 Google Scholar

Professor Leung Tsang

Dr. Enes Koc

Professor Tien-Hao Liao
